AUXILIARY JACK/USB PORT/SD SLOT HUB [WITH CENTER DISPLAY]

id0920zz113800

Note
•  iPod, iPhone, and Apple CarPlay are registered trademarks of Apple Inc.
•  Android, and Android Auto are registered trademarks of Google LLC.
•  iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used underlicense.

Purpose, Function

•  The auxiliary jack/USB port/SD card slot hub outputs the audio signal from an on-market, portable audio or USB device, connected to the auxiliary jack/USB port/SD card slot hub, and the map information of the SD card to the connectivity master unit (CMU) and the tuner and amplifier unit (TAU).

Specification

Playback function file
MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding)/OGG file


Construction

•  The auxiliary jack/USB port/SD card slot hub is built into the auxiliary jack, USB port, and SD card slot.
•  The auxiliary jack/USB port/SD card slot hub is located in the rear console.
am6zzn00005876

Operation

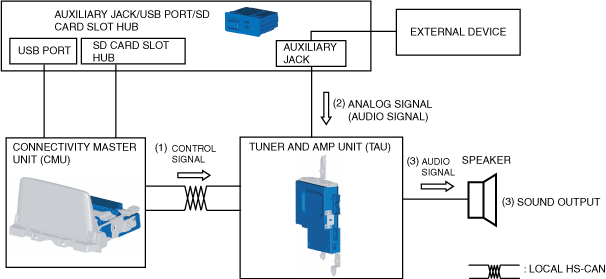

Auxiliary jack

1.  When selecting the AUX mode using the center display or the commander switch, the CMU sends a control signal (1) to the TAU.
2.  The AUX/USB/SD card slot sends (2) the analog signal (audio signal), sent from the portable audio connected to the auxilliary jack, to the TAU.
3.  The TAU outputs (3) the audio from the speakers based on the received audio signal.
am6xun00002262

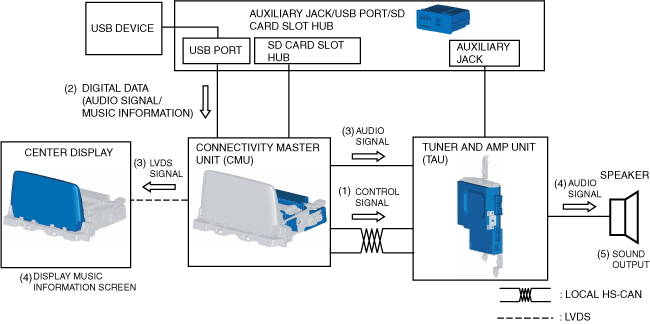

USB port

1.  When selecting the USB mode using the center display or the commander switch, the CMU sends a control signal (1) to the TAU.
2.  The auxiliary jack/USB port/SD card slot hub sends (2) the digital data (audio signal/music information such as album name or artist name) of the USB device/iPod connected to the USB port to the CMU.
3.  The CMU converts the received music information to a LVDS signal, sends (3) it to the center display, and the audio signal is sent (3) to the TAU.
4.  The center display displays (4) the music information based on the LVDS signal. In addition, the TAU sends (4) the received audio signal to the speakers.
5.  The speakers output (5) the audio based on the received audio signal.
am6xun00002263

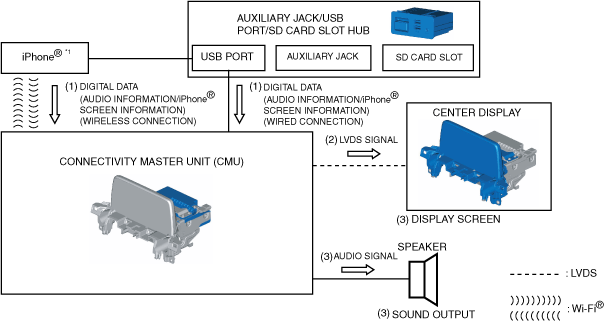

Apple CarPlay™
1.  The auxiliary jack/USB port/SD card slot hub sends (1) the digital data (audio information/iPhone® screen information) of the iPhone® connected to the USB port to the CMU. (Wired connection)
The iPhone® connected to the CMU via Wi-Fi® sends (1) the digital data (audio information/iPhone® screen information) to the CMU. (Wireless connection)
2.  .From the received digital data, the CMU converts the screen information to an LVDS signal and sends (2) it to the center display.
3.  .The center display indicates (3) the screen information based on the LVDS signal received from the CMU. In addition, the CMU sends (3) the audio signal to the speakers and the speakers output (3) the audio based on the received audio signal.
Note
•  Apple CarPlay™ can be used only when iPhone® is connected to USB1 (USB port indicated by 1 mark) of the auxiliary jack/USB port/SD card slot hub or connected via Wi-Fi®.
am6zzn00006042
*1  :For Apple CarPlay™, models starting from iPhone® 5 equipped with iOS 7.1 or more is required.
Android Auto™
1.  The auxiliary jack/USB port/SD card slot hub sends (1) the digital data (audio information/Android™ screen information) of the Android™ connected to the USB port to the CMU.
2.  .From the received digital data, the CMU converts the screen information to an LVDS signal and sends (2) it to the center display.
3.  .The center display indicates (3) the screen information based on the LVDS signal received from the CMU. In addition, the CMU sends (3) the audio signal to the speakers and the speakers output (3) the audio based on the received audio signal.
Note
•  Android Auto™ can be used only when Android™ is connected to USB1 (USB port indicated by 1 mark) of the auxiliary jack/USB port/SD card slot hub.
ac9uun00003445
*2  :Requires the Android Auto™ app on Google Play™ and an Android™ compatible smartphone running Android™ 5.0 Lollipop or higher.

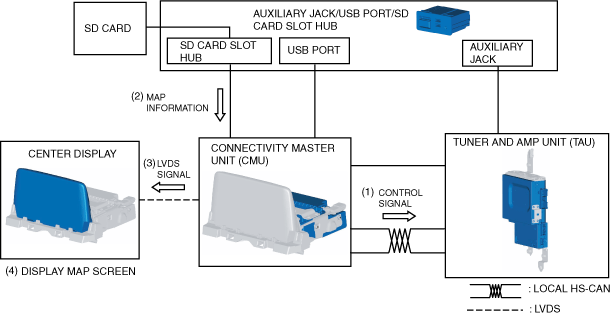

SD card slot (With car-navigation system)

Note
•  The auxiliary jack/USB port/SD card slot hub can only read map information on the SD card (genuine Mazda). Music and image information stored on an SD card (genuine Mazda) and the information stored on an SD card other than a genuine Mazda SD card cannot be read.
1.  When selecting the navigation mode using the center display or the commander switch, the CMU sends a control signal (1) to the TAU.
2.  The auxiliary jack/USB port/SD card slot hub sends (2) the map information of the SD card inserted into the SD card slot to the CMU.
3.  The CMU converts the received map information to a LVDS signal and sends (3) it to the center display.
4.  The center display displays (4) the map information based on the received LVDS signal.
am6xun00002264


Fail-safe

•  Not applicable
