MAIN FUSE

id092100800000

Purpose

• If electric current of the specified value or more flows to each fuse, the fuse melts due to heat generation to protect the systems and parts downstream of the fuse.

Function

• If electric current to each fuse is the specified value or more, the fuse melts due to heat generation.

Construction

• Installed to the battery terminal (+).

SKYACTIV-G 2.0, SKYACTIV-G 2.5 (without i-ELOOP)

am6zzn00005580

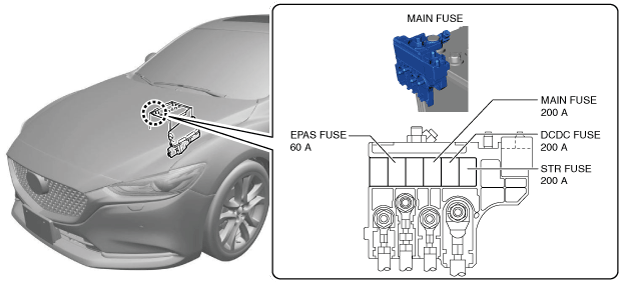

SKYACTIV-G 2.0, SKYACTIV-G 2.5 (with i-ELOOP)

am6zzn00005581

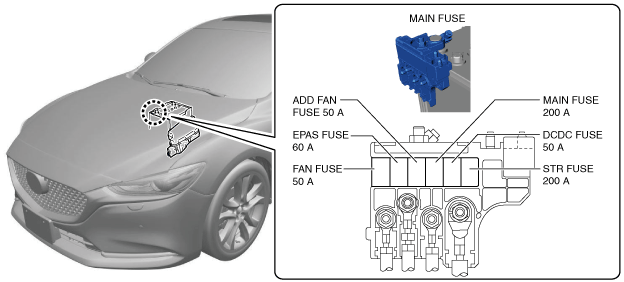

SKYACTIV-G 2.5T

am6zzn00005582

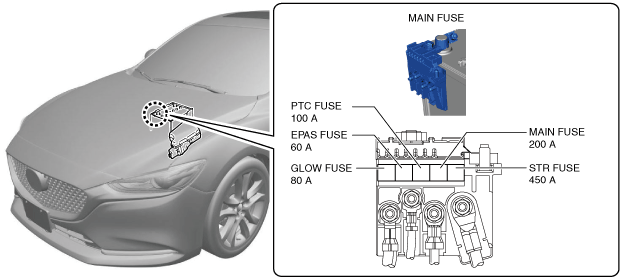

SKYACTIV-D 2.2 (without i-ELOOP)

am6xun00003818

SKYACTIV-D 2.2 (with i-ELOOP)

am6zzn00005583

Operation

1. If electric current of the specified value or more flows, the main fuse blows due to heat generation (1).

Note

• The time until a fuse blows depends on the amount of electrical current.

2. If the main fuse blows, electric current flowing to each part downstream of the main fuse is interrupted (2).

ac9uun00001441

Fail-safe

• Not applicable.
