MAIN FUSE REMOVAL/INSTALLATION

id092100801500

SKYACTIV-G 2.0/SKYACTIV-G 2.5 (Without i-ELOOP)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

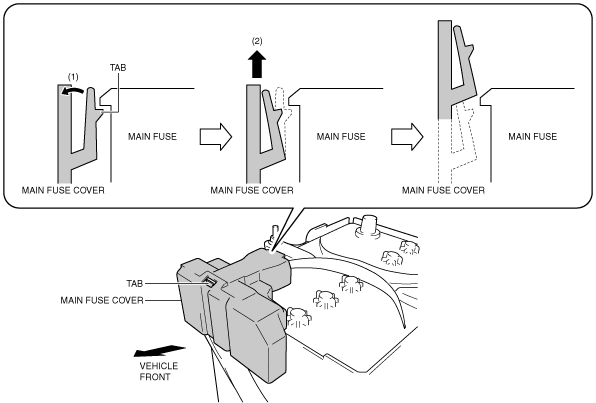

2. While pressing the main fuse cover tab in the direction of the arrow (1) shown in the figure, lift up the main fuse cover in the direction of the arrow (2) to detach the main fuse cover tab from the main fuse.

am6xuw00009993

3. Remove the main fuse cover.

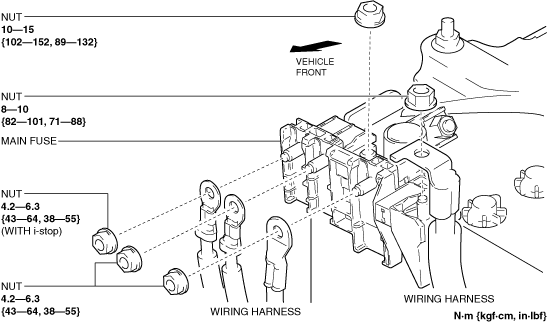

4. Remove the nuts.

am6zzw00016673

5. Remove the main fuse.

6. Install in the reverse order of removal.

SKYACTIV-G 2.5T or SKYACTIV-G 2.0/SKYACTIV-G 2.5/SKYACTIV-D 2.2 (With i-ELOOP)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

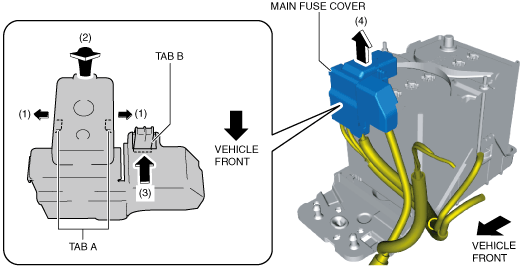

2. Widen the main fuse cover in the direction of arrows (1) shown in the figure to detach tabs A of the main fuse cover from the main fuse, then lift up the main fuse cover in the direction of arrow (2).

am6xuw00009995

3. While pressing tab B of the main fuse cover in the direction of the arrow (3) shown in the figure, lift up the main fuse cover in the direction of the arrow (4) to detach the tab B of the main fuse cover from the main fuse.

4. Remove the main fuse cover.

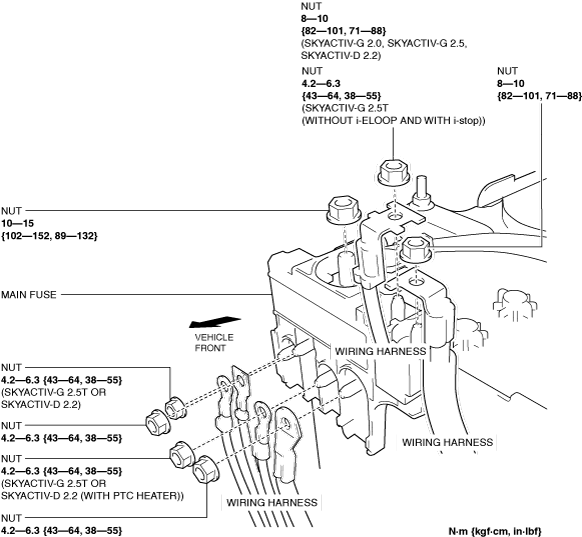

5. Remove the nuts.

am6zzw00018545

6. Remove the main fuse.

7. Install in the reverse order of removal.

SKYACTIV-D 2.2 (Without i-ELOOP)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

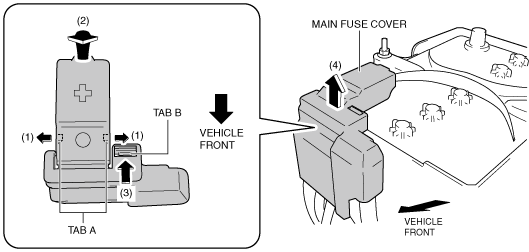

am6xuw00009997

4. Remove the main fuse cover.

5. Remove the nuts.

am6zzw00016675

6. Remove the main fuse.

7. Install in the reverse order of removal.
