POWER SYSTEMS

id092100960000


Outline

•  System in which electric current from the battery supplies power to each electrical part.
•  There are mainly three types of electric power supply as follows, which are divided into system-supplied power and power used by parts.
―  Supply of direct power from battery
―  Supply of power by switching ignition ON (engine off)
―  Supply of power by switching ignition ON (engine on)

Specification

SKYACTIV-G 2.0, SKYACTIV-G 2.5

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Main fuse
DCDC fuse rating (without i-ELOOP)
50 A
DCDC fuse rating (with i-ELOOP)
200 A
EPAS fuse rating
60 A
MAIN fuse rating
200 A
STR fuse rating (without i-ELOOP)
250 A
STR fuse rating (with i-ELOOP)
200 A
Accessory socket
Rated voltage
DC 12 V
Rated load
20 A
USB power outlet
Rated voltage
5 V
Rated load
2.1 A

SKYACTIV-G 2.5T

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Main fuse
FAN fuse rating
50 A
EPAS fuse rating
60 A
ADD FAN fuse rating
50 A
MAIN fuse rating
200 A
DCDC fuse rating
50 A
STR fuse rating
200 A
Accessory socket
Rated voltage
DC 12 V
Rated load
20 A
USB power outlet
Rated voltage
5 V
Rated load
2.1 A

SKYACTIV-D 2.2

Component parts

Specification
Relay and fuse block
Wiring harness-integrated type
Fuse block
Wiring harness-integrated type
Main fuse
GLOW fuse rating
80 A
EPAS fuse rating
60 A
PTC fuse rating
100 A
MAIN fuse rating
200 A
STR fuse rating (without i-ELOOP)
450 A
STR fuse rating (with i-ELOOP)
250 A
Accessory socket
Rated voltage
DC 12 V
Rated load
20 A
USB power outlet
Rated voltage
5 V
Rated load
2.1 A

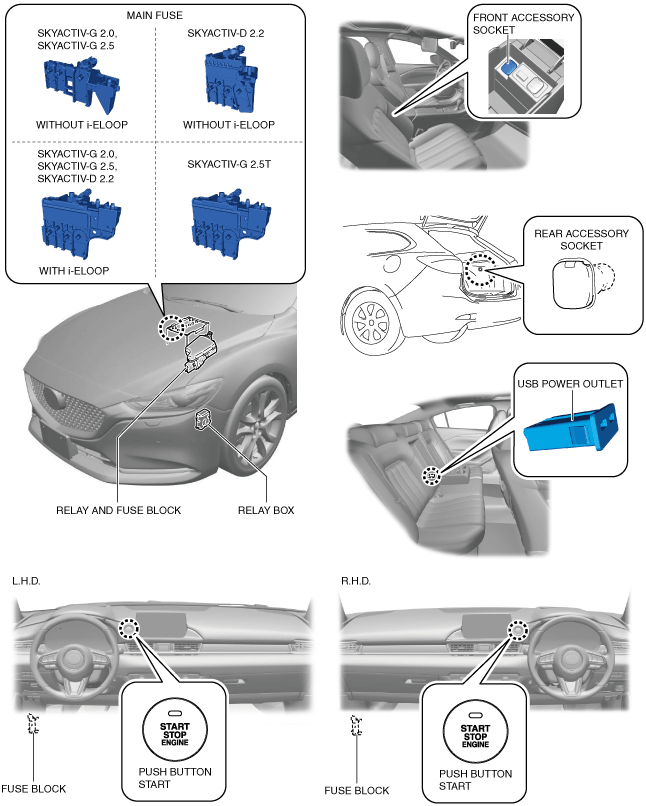

Structural view

am6zzn00005588
