FUEL GAUGE SENDER UNIT INSPECTION [2WD]

id0922000121b2

SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION), SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION),SKYACTIV-G 2.5T

Note

•  For the fuel gauge sender unit removal/installation, refer to the fuel pump disassembly/assembly because the fuel gauge sender unit is integrated with the fuel pump. (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)(See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)(See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5T].)

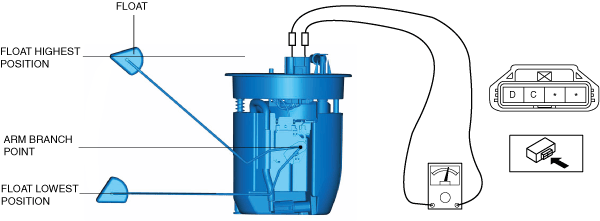

1.  Verify that the resistance at fuel gauge sender unit terminals D and C is as follows according to the height of the float.

Resistance when float is in the highest position

•  18.5—21.5 ohms

Resistance when float is in the lowest position

•  197—203 ohms

am6zzw00015501

•  If not as indicated in the table, replace the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].)

SKYACTIV-D 2.2

1.  Perform the "Fuel Line Safety Procedure" referring to the "BEFORE REPAIR PROCEDURE". (See BEFORE SERVICE PRECAUTION [SKYACTIV-D 2.2].)

2.  If the fuel gauge level indicates 3/4 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel. (See FUEL DRAINING PROCEDURE [SKYACTIV-D 2.2].)

3.  Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION.)

5.  Remove the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].)

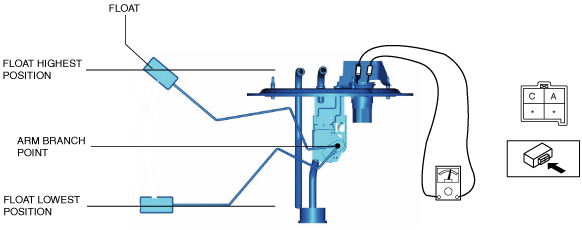

6.  Verify that the resistance at fuel gauge sender unit terminals C and A is as follows according to the height of the float.

Resistance when float is in the highest position

•  18.5—21.5 ohms

Resistance when float is in the lowest position

•  197—203 ohms

am6zzw00014066

•  If not as indicated in the table, replace the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].)
