DOOR-AJAR WARNING LIGHT
id092200018700
Purpose
• The door-ajar warning light warns the driver that any door or the trunk lid is open.
Functions
• When the instrument cluster receives any of the following signals sent from the rear body control module (RBCM) via the CAN communication, it turns the door-ajar warning light on.
-
― Door latch switch ON (door open) signal
― Trunk lid latch switch ON (trunk lid open) signal
Structure/Construction
• Turning on/off of the door-ajar warning light is controlled by the instrument cluster microcomputer based on the door latch switch ON (door open) signal or trunk lid latch switch ON (trunk lid open) signal from the rear body control module (RBCM).
• The door-ajar warning light is built into the instrument cluster.

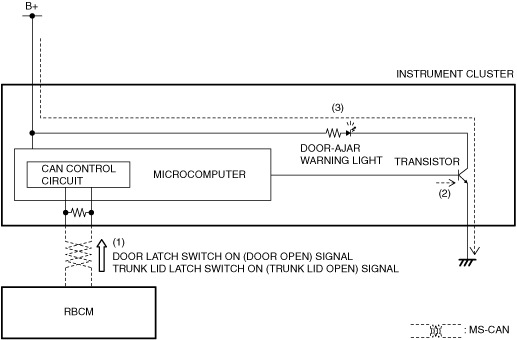

Operation
1. The instrument cluster receives (1) a door latch switch ON (door open) signal or trunk lid latch switch ON (trunk lid open) signal from the rear body control module (RBCM) via CAN communication, it turns on (2) the transistor.
2. When the transistor turns on, a ground circuit with the door-ajar warning light is established and the door-ajar warning light turns on (3).
Fail-safe
• Not applicable
