INSTRUMENT CLUSTER OPERATION RECORD

id092200033100

Purpose

• The instrument cluster stores the record of the warning/indicator lights which turned on or flashed as the operation record.

Functions

• The operation record is stored by the instrument cluster and displayed using the Mazda Modular Diagnostic System (M-MDS).

• The instrument cluster stores the following information when any of the warning/indicator lights turns on or flashes.

― Time and date

― Control module which sent warning light on/flash request

― Battery voltage

Structure/Construction

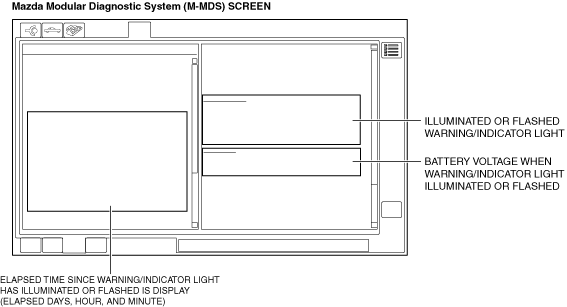

• Based on the stored information, the instrument cluster displays the following operation record on the Mazda Modular Diagnostic System (M-MDS) screen.

am6xun00002931

Operation

• When the instrument cluster receives a CAN signal or a warning/indicator light on or flash request signal sent from each part, it controls the warning/indicator light to turn on or flash and stores the operation record at the same time.

Fail-safe

• Not applicable
