DOOR-AJAR WARNING INDICATION/TRUNK LID-AJAR WARNING INDICATION

id092200044100

Purpose

• The door-ajar warning indication notifies the driver that any door is open.

• The trunk lid-ajar warning indication notifies the driver that the trunk lid is open.

Function

• When the instrument cluster receives any of the following signals sent from the rear body control module (RBCM) via the CAN signal, the door-ajar warning indication/trunk lid-ajar warning indication is displayed.

― Door latch switch ON (door open) signal

― Trunk lid latch switch ON (trunk lid open) signal

Structure/Construction

• The door-ajar warning indication/trunk lid-ajar warning indication is displayed in the multi-information display of the instrument cluster.

am6xun00004289

Operation

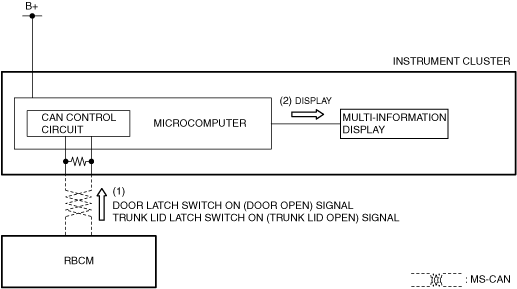

1. The instrument cluster receives (1) the door latch switch ON signal or trunk lid latch switch ON signal from the rear body control module (RBCM).

2. When any received signal indicates that door/trunk lid is open, the instrument cluster displays (2) the door-ajar warning indication/trunk lid-ajar warning indication in the multi-information display of the instrument cluster.

am6xun00002955

Fail-safe

• Not applicable
