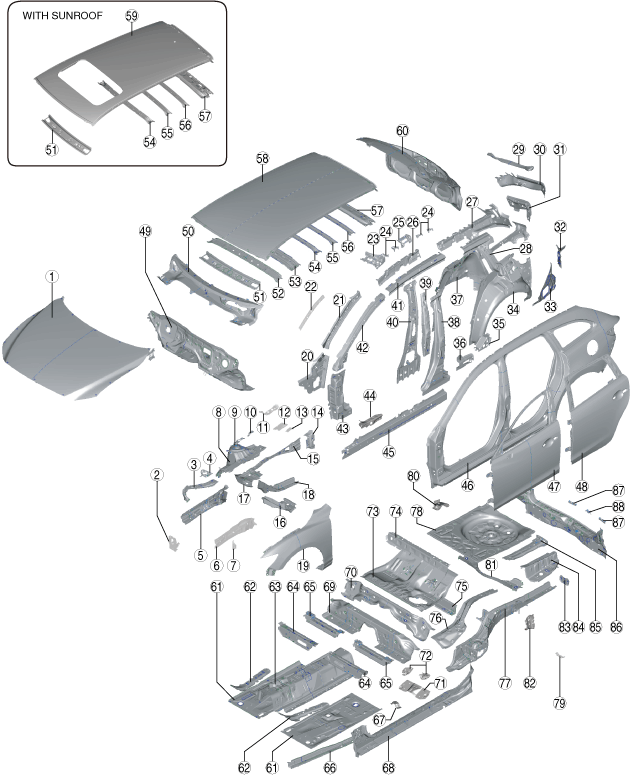

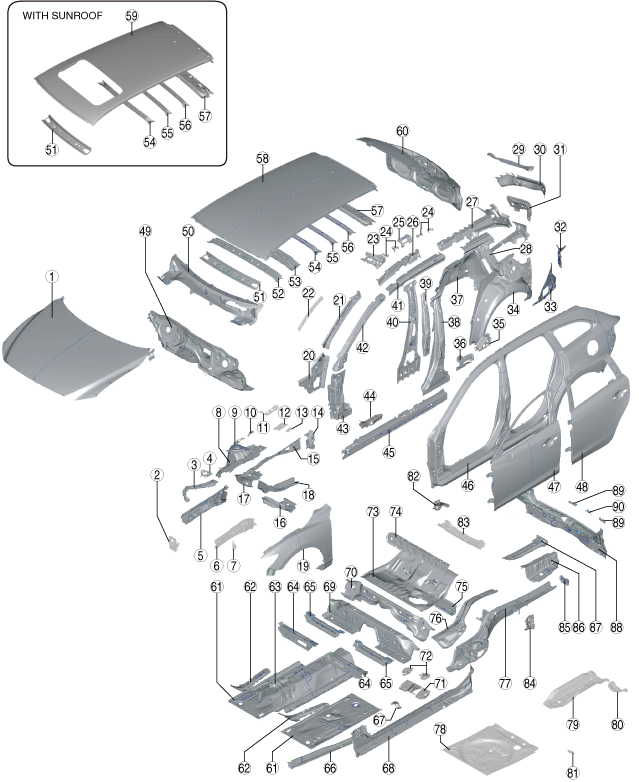

BODY COMPONENTS CONSTRUCTION [CONSTRUCTION]

id098007739700


4SD

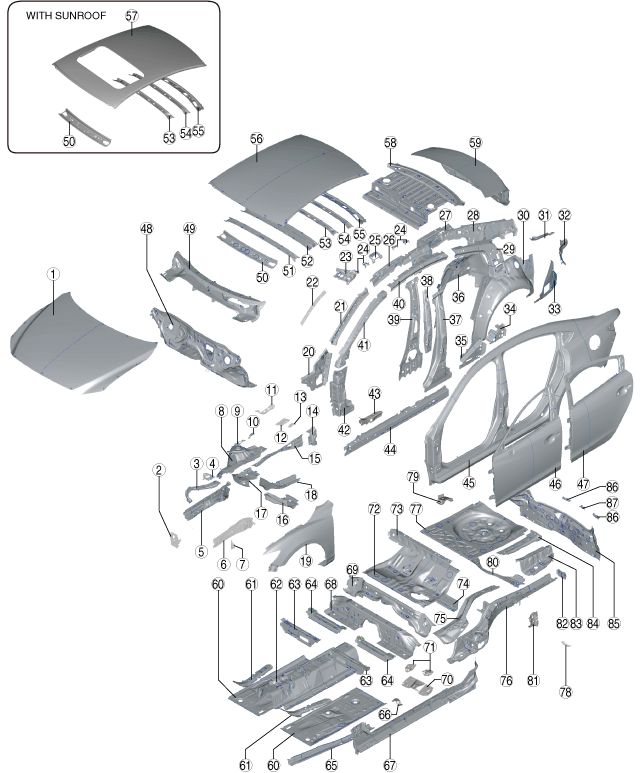

With out SCR (Selected Catalytic Reduction) System

am6zzb00000690

x:Applied
-:Not applied

No.

Part Name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet (outer panel)
-
X
X
0.65
{0.025}
2
Bumper bracket component
Bumper bracket
X
-
X
2.60
{0.10}
Suspension mounting reinforcement
-
X
X
2.90
{0.11}
Outer frame reinforcement
-
X
X
2.00
{0.0787}
3
Shroud side member component
Apron reinforcement (lower)
-
X
X
1.00
{0.0394}
Side stay
-
-
X
1.20
{0.0472}
Shroud side panel
-
X
X
0.90
{0.035}
4
Shroud upper reinforcement
-
-
X
0.90
{0.035)
5
Front side frame (inner)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
6
Front side frame (outer)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
7
Light bracket
-
-
X
1.60
{0.0630}
8
Wheel apron component
Suspension housing (upper)
-
X
X
2.30
{0.091}
Apron reinforcement
-
-
X
2.00
{0.0787}
Apron reinforcement No.3
X
-
X
1.40
{0.0551}
Cowl side reinforcement (inner)
-
X
X
1.00
{0.0394}
Suspension housing (lower)
-
-
X
1.00
{0.0394}
9
Front wheel apron panel
-
-
X
0.80
{0.031}
10
Front fender junction
-
-
X
0.80
{0.031}
11
Wiper bracket component
Wiper bracket
-
X
X
1.40
{0.0551}
Bonnet actuator bracket
-
-
X
2.00
{0.0787}
12
Cowl plate (upper)
-
X
X
1.40
{0.0551}
13
Bonnet hinge reinforcement
-
X
X
1.80
{0.0709}
14
Cowl side reinforcement (upper)
-
X
X
1.60
{0.0630}
15
Cowl side reinforcement (lower)
Front
-
X
X
0.80
{0.031}
Rear
X
-
X
1.40
{0.0551}
16
Torque box
-
X
X
1.80
{0.0709}
17
Side member
-
-
X
1.40
{0.0551}
18
Front frame (rear)
X
-
X
2.00
{0.0787}
19
Front fender panel
-
-
X
0.70
{0.028}
20
Hinge pillar (inner)
X
-
X
1.20
{0.0472}
21
Front pillar (inner)
X
-
-
1.60
{0.0630}
22
Front pillar reinforcement (inner)
X
-
-
2.00
{0.0787}
23
Front pillar upper reinforcement
-
-
-
0.70
{0.028}
24
Nut plate
-
-
-
1.20
{0.0472}
25
Roof corner gusset
X
-
-
1.20
{0.0472}
26
Roof rail (inner)
X
-
-
1.20
{0.0472}
27
Package gusset component
Package junction
-
-
-
0.90
{0.035}
Package reinforcement
-
-
-
0.90
{0.035}
Package gusset
-
-
-
1.00
{0.0394}
Wheel housing gusset
-
-
-
1.00
{0.0394}
28
Rear pillar (inner)
-
-
-
0.65
{0.026}
29
Suspension housing reinforcement component
C pillar reinforcement
X
-
-
1.40
{0.0551}
Suspension housing reinforcement
-
-
-
0.65
{0.026}
30
Wheel housing (outer)
-
-
X
0.65
{0.026}
31
Rear fender rain rail
-
-
X
0.70
{0.028}
32
Corner plate
-
-
X
0.70
{0.028}
33
Rear fender panel (lower)
-
-
X
0.70
{0.028}
34
Tower anchor reinforcement
X
-
-
1.60
{0.0630}
35
Side sill reinforcement (rear)
X
-
X
1.80
{0.0709}
36
Wheel housing (inner)
-
-
X
1.40
{0.0551}
37
Center pillar reinforcement
Upper
X
-
-
2.00
{0.0787}
Lower
X
-
-
2.00
{0.0787}
38
Center pillar reinforcement (inner)
X
-
-
2.30
{0.0906}
39
Center pillar (inner)
-
X
X
1.20
{0.0472}
40
Roof rail reinforcement
X
-
-
1.40
{0.0551}
41
Front pillar reinforcement
Upper
X
-
-
1.60
{0.0630}
Lower
X
-
-
1.80
{0.0709}
42
Hinge reinforcement
X
-
X
1.40
{0.0551}
43
Hinge pillar reinforcement
X
-
-
2.90
{0.11}
44
Side sill reinforcement
X
-
X
1.40
{0.0551}
45
Cabin side outer frame
-
-
X
0.70
{0.028}
46
Front door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.025}
47
Rear door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.60
{0.024}
48
Dash lower component
Upper panel
-
-
X
0.80
{0.031}
Tunnel junction No.1
-
-
X
0.80
{0.031}
Front frame rear reinforcement
X
-
X
1.20
{0.0472}
Tunnel reinforcement
X
-
X
1.20
{0.0472}
49
Dash and cowl component
Cowl panel
-
-
X
1.80
{0.0709}
Dash upper panel
-
-
X
0.65
{0.025}
50
Front header
-
-
X
0.70
{0.028}
51
Roof reinforcement No.1
-
-
-
0.55
{0.022}
52
Roof reinforcement No.2
X
-
-
1.00
{0.0394}
53
Roof reinforcement No.3
-
-
-
0.55
{0.022}
54
Roof reinforcement No.4
-
-
-
0.80
{0.031}
55
Rear header
-
-
-
0.75
{0.0310}
56
Roof panel
-
-
-
0.75
{0.0310}
57
Roof panel component (with sunroof)
Roof panel (with sunroof)
-
-
-
0.75
{0.0310}
Roof reinforcement
X
-
-
2.30 {0.0906}
58
Rear package tray
-
-
-
0.60
{0.024}
59
Trunk lid
Outer
-
-
X
0.70
{0.028}
Inner
-
-
X
0.60
{0.024}
End
-
-
X
0.70
{0.028}
60
Front floor side panel
-
-
X
1.00
{0.0394}
61
Floor reinforcement
Front
X
-
-
1.80
{0.0709}
Rear
-
X
-
1.00
{0.0394}
62
Tunnel reinforcement
X
-
X
0.90
{0.035}
63
Crossmember No.2
X
-
-
1.00
{0.0394}
64
Crossmember No.2.5
X
-
-
1.60
{0.0630}
65
Front B frame
Front
X
-
-
1.40
{0.0551}
Rear
X
-
-
1.00
{0.0394}
66
C unit bracket
-
-
-
0.70 {0.028}
67
Side sill (inner)
Front
-
X
X
1.40
{0.0551}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.20
{0.0472}
68
Crossmember No.3 (lower)
Center upper
X
-
X
1.40
{0.0551}
Side upper
X
-
-
1.60
{0.0630}
Center lower
-
X
X
0.80
{0.031}
Side lower
-
X
X
1.00
{0.0394}
69
Crossmember No.3 (upper)
-
-
X
0.60
{0.024}
70
Anchorage reinforcement
-
X
X
0.90 {0.035}
71
Seat bracket
-
-
-
1.80 {0.0709}
72
Center floor panel
-
-
X
0.60
{0.024}
73
Rear floor front reinforcement
-
X
-
0.90
{0.035}
74
Crossmember No.4 (front)
-
-
X
0.90
{0.035}
75
Rear frame reinforcement
-
-
-
0.90
{0.035}
76
Rear side frame
Front
X
-
X
1.60
{0.0630}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.40
{0.0551}
77
Trunk floor panel
-
-
X
0.60
{0.024}
78
Fuel tank bracket
-
X
X
1.00 {0.0394}
79
Jack bracket
-
-
-
1.20
{0.0472}
80
Crossmember No.4 (rear)
-
-
X
0.90
{0.035}
81
Front brece reinforcement
-
-
-
1.60
{0.0630}
82
Rear bumper bracket
X
-
X
2.00
{0.0787}
83
Floor side panel No.2
-
-
X
0.70
{0.028}
84
Floor side panel No.1
Front
X
-
X
1.20
{0.0472}
Rear (upper)
-
X
X
2.00
{0.0787}
Rear (lower)
X
-
X
1.60
{0.0630}
85
Rear end panel component
Rear end panel
-
-
X
0.60
{0.024}
Rear end member
-
-
X
0.70
{0.028}
86
Rear bumper reinforcement No.1
-
-
X
1.00
{0.0394}
87
Rear bumper reinforcement No.2
-
-
X
1.00
{0.0394}

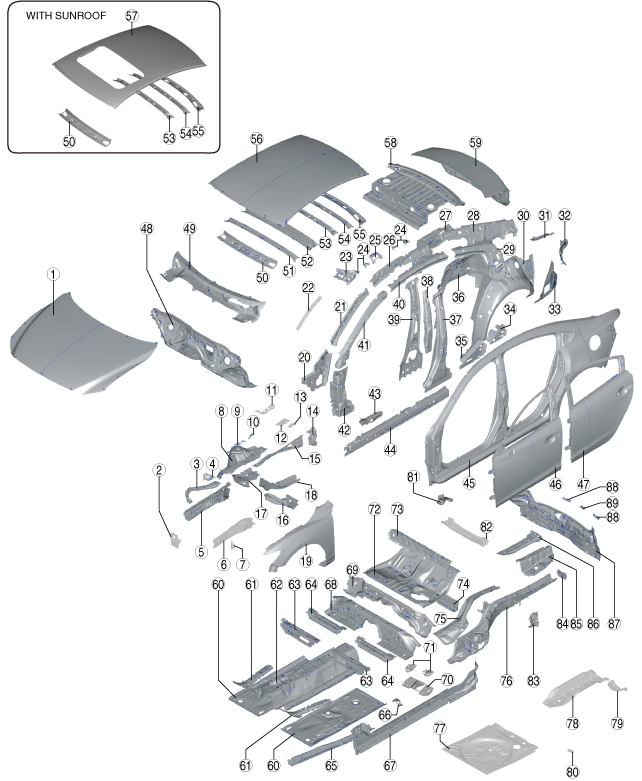

With SCR System

am6zzb00000691

x:Applied
-:Not applied

No.

Part Name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet (outer panel)
-
X
X
0.65
{0.025}
2
Bumper bracket component
Bumper bracket
X
-
X
2.60
{0.10}
Suspension mounting reinforcement
-
X
X
2.90
{0.11}
Outer frame reinforcement
-
X
X
2.00
{0.0787}
3
Shroud side member component
Apron reinforcement (lower)
-
X
X
1.00
{0.0394}
Side stay
-
-
X
1.20
{0.0472}
Shroud side panel
-
X
X
0.90
{0.035}
4
Shroud upper reinforcement
-
-
X
0.90
{0.035)
5
Front side frame (inner)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
6
Front side frame (outer)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
7
Light bracket
-
-
X
1.60
{0.0630}
8
Wheel apron component
Suspension housing (upper)
-
X
X
2.30
{0.091}
Apron reinforcement
-
-
X
2.00
{0.0787}
Apron reinforcement No.3
X
-
X
1.40
{0.0551}
Cowl side reinforcement (inner)
-
X
X
1.00
{0.0394}
Suspension housing (lower)
-
-
X
1.00
{0.0394}
9
Front wheel apron panel
-
-
X
0.80
{0.031}
10
Front fender junction
-
-
X
0.80
{0.031}
11
Wiper bracket component
Wiper bracket
-
X
X
1.40
{0.0551}
Bonnet actuator bracket
-
-
X
2.00
{0.0787}
12
Cowl plate (upper)
-
X
X
1.40
{0.0551}
13
Bonnet hinge reinforcement
-
X
X
1.80
{0.0709}
14
Cowl side reinforcement (upper)
-
X
X
1.60
{0.0630}
15
Cowl side reinforcement (lower)
Front
-
X
X
0.80
{0.031}
Rear
X
-
X
1.40
{0.0551}
16
Torque box
-
X
X
1.80
{0.0709}
17
Side member
-
-
X
1.40
{0.0551}
18
Front frame (rear)
X
-
X
2.00
{0.0787}
19
Front fender panel
-
-
X
0.70
{0.028}
20
Hinge pillar (inner)
X
-
X
1.20
{0.0472}
21
Front pillar (inner)
X
-
-
1.60
{0.0630}
22
Front pillar reinforcement (inner)
X
-
-
2.00
{0.0787}
23
Front pillar upper reinforcement
-
-
-
0.70
{0.028}
24
Nut plate
-
-
-
1.20
{0.0472}
25
Roof corner gusset
X
-
-
1.20
{0.0472}
26
Roof rail (inner)
X
-
-
1.20
{0.0472}
27
Package gusset component
Package junction
-
-
-
0.90
{0.035}
Package reinforcement
-
-
-
0.90
{0.035}
Package gusset
-
-
-
1.00
{0.0394}
Wheel housing gusset
-
-
-
1.00
{0.0394}
28
Rear pillar (inner)
-
-
-
0.65
{0.026}
29
Suspension housing reinforcement component
C pillar reinforcement
X
-
-
1.40
{0.0551}
Suspension housing reinforcement
-
-
-
0.65
{0.026}
30
Wheel housing (outer)
-
-
X
0.65
{0.026}
31
Rear fender rain rail
-
-
X
0.70
{0.028}
32
Corner plate
-
-
X
0.70
{0.028}
33
Rear fender panel (lower)
-
-
X
0.70
{0.028}
34
Tower anchor reinforcement
X
-
-
1.60
{0.0630}
35
Side sill reinforcement (rear)
X
-
X
1.80
{0.0709}
36
Wheel housing (inner)
-
-
X
1.40
{0.0551}
37
Center pillar reinforcement
Upper
X
-
-
2.00
{0.0787}
Lower
X
-
-
2.00
{0.0787}
38
Center pillar reinforcement (inner)
X
-
-
2.30
{0.0906}
39
Center pillar (inner)
-
X
X
1.20
{0.0472}
40
Roof rail reinforcement
X
-
-
1.40
{0.0551}
41
Front pillar reinforcement
Upper
X
-
-
1.60
{0.0630}
Lower
X
-
-
1.80
{0.0709}
42
Hinge reinforcement
X
-
X
1.40
{0.0551}
43
Hinge pillar reinforcement
X
-
-
2.90
{0.11}
44
Side sill reinforcement
X
-
X
1.40
{0.0551}
45
Cabin side outer frame
-
-
X
0.70
{0.028}
46
Front door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.025}
47
Rear door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.60
{0.024}
48
Dash lower component
Upper panel
-
-
X
0.80
{0.031}
Tunnel junction No.1
-
-
X
0.80
{0.031}
Front frame rear reinforcement
X
-
X
1.20
{0.0472}
Tunnel reinforcement
X
-
X
1.20
{0.0472}
49
Dash and cowl component
Cowl panel
-
-
X
1.80
{0.0709}
Dash upper panel
-
-
X
0.65
{0.025}
50
Front header
-
-
X
0.70
{0.028}
51
Roof reinforcement No.1
-
-
-
0.55
{0.022}
52
Roof reinforcement No.2
X
-
-
1.00
{0.0394}
53
Roof reinforcement No.3
-
-
-
0.55
{0.022}
54
Roof reinforcement No.4
-
-
-
0.80
{0.031}
55
Rear header
-
-
-
0.75
{0.0310}
56
Roof panel
-
-
-
0.75
{0.0310}
57
Roof panel component (with sunroof)
Roof panel (with sunroof)
-
-
-
0.75
{0.0310}
Roof reinforcement
X
-
-
2.30 {0.0906}
58
Rear package tray
-
-
-
0.60
{0.024}
59
Trunk lid
Outer
-
-
X
0.70
{0.028}
Inner
-
-
X
0.60
{0.024}
End
-
-
X
0.70
{0.028}
60
Front floor side panel
-
-
X
1.00
{0.0394}
61
Floor reinforcement
Front
X
-
-
1.80
{0.0709}
Rear
-
X
-
1.00
{0.0394}
62
Tunnel reinforcement
X
-
X
0.90
{0.035}
63
Crossmember No.2
X
-
-
1.00
{0.0394}
64
Crossmember No.2.5
X
-
-
1.60
{0.0630}
65
Front B frame
Front
X
-
-
1.40
{0.0551}
Rear
X
-
-
1.00
{0.0394}
66
C unit bracket
-
-
-
0.70 {0.028}
67
Side sill (inner)
Front
-
X
X
1.40
{0.0551}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.20
{0.0472}
68
Crossmember No.3 (lower)
Center upper
X
-
X
1.40
{0.0551}
Side upper
X
-
-
1.60
{0.0630}
Center lower
-
X
X
0.80
{0.031}
Side lower
-
X
X
1.00
{0.0394}
69
Crossmember No.3 (upper)
-
-
X
0.60
{0.024}
70
Anchorage reinforcement
-
X
X
0.90 {0.035}
71
Seat bracket
-
-
-
1.80 {0.0709}
72
Center floor panel
-
-
X
0.60
{0.024}
73
Rear floor front reinforcement
-
X
-
0.90
{0.035}
74
Crossmember No.4 (front)
-
-
X
0.90
{0.035}
75
Rear frame reinforcement
-
-
-
0.90
{0.035}
76
Rear side frame
Front
X
-
X
1.60
{0.0630}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.40
{0.0551}
77
Trunk floor panel
-
-
X
0.60
{0.024}
78
Rear crossmember reinforcement
-
-
X
1.80
{0.0709}
79
Rear end crossmember
-
-
X
1.80
{0.0709}
80
Urea tank bracket
-
-
X
1.00
{0.0349}
81
Jack bracket
-
-
-
1.20
{0.0472}
82
Crossmember No.4 (rear)
-
-
X
0.90
{0.035}
83
Front brece reinforcement
-
-
-
1.60
{0.0630}
84
Rear bumper bracket
X
-
X
2.00
{0.0787}
85
Floor side panel No.2
-
-
X
0.70
{0.028}
86
Floor side panel No.1
Front
X
-
X
1.20
{0.0472}
Rear (upper)
-
X
X
2.00
{0.0787}
Rear (lower)
X
-
X
1.60
{0.0630}
87
Rear end panel component
Rear end panel
-
-
X
0.60
{0.024}
Rear end member
-
-
X
0.70
{0.028}
88
Rear bumper reinforcement No.1
-
-
X
1.00
{0.0394}
89
Rear bumper reinforcement No.2
-
-
X
1.00
{0.0394}


WGN

With out SCR System

am6zzb00000696

x:Applied
-:Not applied

No.

Part Name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet (outer panel)
-
X
X
0.65
{0.025}
2
Bumper bracket component
Bumper bracket
X
-
X
2.60
{0.10}
Suspension mounting reinforcement
-
X
X
2.90
{0.11}
Outer frame reinforcement
-
X
X
2.00
{0.0787}
3
Shroud side member component
Apron reinforcement (lower)
-
X
X
1.00
{0.0394}
Side stay
-
-
X
1.20
{0.0472}
Shroud side panel
-
X
X
0.90
{0.035}
4
Shroud upper reinforcement
-
-
X
0.90
{0.035)
5
Front side frame (inner)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
6
Front side frame (outer)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
7
Light bracket
-
-
X
1.60
{0.0630}
8
Wheel apron component
Suspension housing (upper)
-
X
X
2.30
{0.091}
Apron reinforcement
-
-
X
2.00
{0.0787}
Apron reinforcement No.3
X
-
X
1.40
{0.0551}
Cowl side reinforcement (inner)
-
X
X
1.00
{0.0394}
Suspension housing (lower)
-
-
X
1.00
{0.0394}
9
Front wheel apron panel
-
-
X
0.80
{0.031}
10
Front fender junction
-
-
X
0.80
{0.031}
11
Wiper bracket component
Wiper bracket
-
X
X
1.40
{0.0551}
Bonnet actuator bracket
-
-
X
2.00
{0.0787}
12
Cowl plate (upper)
-
X
X
1.40
{0.0551}
13
Bonnet hinge reinforcement
-
X
X
1.80
{0.0709}
14
Cowl side reinforcement (upper)
-
X
X
1.60
{0.0630}
15
Cowl side reinforcement (lower)
Front
-
X
X
0.80
{0.031}
Rear
X
-
X
1.40
{0.0551}
16
Torque box
-
X
X
1.80
{0.0709}
17
Side member
-
-
X
1.40
{0.0551}
18
Front frame (rear)
X
-
X
2.00
{0.0787}
19
Front fender panel
-
-
X
0.70
{0.028}
20
Hinge pillar (inner)
X
-
X
1.20
{0.0472}
21
Front pillar (inner)
X
-
-
1.60
{0.0630}
22
Front pillar reinforcement (inner)
X
-
-
2.00
{0.0787}
23
Front pillar upper reinforcement
-
-
-
0.70
{0.028}
24
Nut plate
-
-
-
1.20
{0.0472}
25
Roof corner gusset
X
-
-
1.20
{0.0472}
26
Roof rail (inner)
X
-
-
1.20
{0.0472}
27
Rear pillar (inner) component
Roof rail (inner)
-
-
X
0.70
{0.028}
Rear pillar (inner)
-
-
-
0.65
{0.026}
Upper corner plate
-
-
-
1.80
{0.0709}
28
Suspension housing reinforcement component
C pillar reinforcement (upper)
X
-
-
1.20
{0.0472}
C pillar reinforcement (lower)
-
-
-
0.65
{0.026}
Suspension housing reinforcement
-
-
-
1.60
{0.0630}
29
Rear pillar (outer)
-
-
X
1.00
{0.0394}
30
Rear pillar reinforcement
-
-
-
1.00
{0.0394}
31
Corner junction
-
-
-
1.20
{0.0472}
32
Corner plate
-
-
X
0.70
{0.028}
33
Rear fender panel (lower)
-
-
X
0.70
{0.028}
34
Wheel housing (outer)
-
-
X
0.65
{0.026}
35
Tower anchor reinforcement
X
-
-
1.60
{0.0630}
36
Side sill reinforcement (rear)
X
-
X
1.60
{0.0630}
37
Wheel housing (inner)
-
-
X
1.40
{0.0551}
38
Center pillar reinforcement
Upper
X
-
-
2.00
{0.0787}
Lower
X
-
-
2.00
{0.0787}
39
Center pillar reinforcement (inner)
X
-
-
2.30
{0.0906}
40
Center pillar (inner)
-
X
X
1.20
{0.0472}
41
Roof rail reinforcement
X
-
-
1.40
{0.0551}
42
Front pillar reinforcement
Upper
X
-
-
1.60
{0.0630}
Lower
X
-
-
1.80
{0.0709}
43
Hinge reinforcement
X
-
X
1.40
{0.0551}
44
Hinge pillar reinforcement
X
-
-
2.90
{0.11}
45
Side sill reinforcement
X
-
X
1.40
{0.0551}
46
Cabin side outer frame
-
-
X
0.70
{0.028}
47
Front door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
48
Rear door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.60
{0.024}
49
Dash lower component
Upper panel
-
-
X
0.80
{0.031}
Tunnel junction No.1
-
-
X
0.80
{0.031}
Front frame rear reinforcement
X
-
X
1.20
{0.0472}
Tunnel reinforcement
X
-
X
1.20
{0.0472}
50
Dash and cowl component
Cowl panel
-
-
X
1.80
{0.0709}
Dash upper panel
-
-
X
0.65
{0.026}
51
Front header
-
-
X
0.70
{0.028}
52
Roof reinforcement No.1
-
-
-
0.55
{0.022}
53
Roof reinforcement No.2
X
-
-
0.80
{0.031}
54
Roof reinforcement No.3
-
-
-
0.55
{0.022}
55
Roof reinforcement No.4
-
-
-
0.55
{0.022}
56
Roof reinforcement No.5
-
-
-
0.55
{0.022}
57
Rear header
-
-
X
0.70
{0.028}
58
Roof panel
-
-
-
0.75
{0.0310}
59
Roof panel component (with sunroof)
Roof panel (with sunroof)
-
-
-
0.75
{0.0310}
Roof reinforcement
X
-
-
2.30 {0.0906}
60
Liftgate
Outer panel
-
-
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
61
Front floor side panel
-
-
X
1.00
{0.0394}
62
Floor reinforcement
Front
X
-
-
1.80
{0.0709}
Rear
-
X
-
1.00
{0.0394}
63
Tunnel reinforcement
X
-
X
0.90
{0.035}
64
Crossmember No.2
X
-
-
1.00
{0.0394}
65
Crossmember No.2.5
X
-
-
1.60
{0.0630}
66
Front B frame
Front
X
-
-
1.40
{0.0551}
Rear
X
-
-
1.00
{0.0394}
67
C unit bracket
-
-
-
0.70 {0.028}
68
Side sill (inner)
Front
-
X
X
1.40
{0.0551}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.20
{0.0472}
69
Crossmember No.3 (lower)
Center upper
X
-
X
1.40
{0.0551}
Side upper
X
-
-
1.60
{0.0630}
Center lower
-
X
X
0.80
{0.031}
Side lower
-
X
X
1.00
{0.0394}
70
Crossmember No.3 (upper)
-
-
X
0.60
{0.024}
71
Anchorage reinforcement
-
X
X
0.90 {0.035}
72
Seat bracket
-
-
-
1.80 {0.0709}
73
Center floor panel
-
-
X
0.60
{0.024}
74
Rear floor front reinforcement
-
X
-
0.90
{0.035}
75
Crossmember No.4 (front)
-
-
X
0.90
{0.035}
76
Rear frame reinforcement
-
-
-
0.90
{0.035}
77
Rear side frame
Front
X
-
X
1.60
{0.0630}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.40
{0.0551}
78
Trunk floor panel
-
-
X
0.60
{0.024}
79
Fuel tank bracket
-
X
X
1.00 {0.0394}
80
Jack bracket
-
-
-
1.20
{0.0472}
81
Crossmember No.4 (rear)
-
-
X
0.90
{0.035}
82
Front brece reinforcement
-
-
-
1.60
{0.0630}
83
Rear bumper bracket
X
-
X
2.00
{0.0787}
84
Floor side panel No.2
-
-
X
0.70
{0.028}
85
Floor side panel No.1
Front
X
-
X
1.20
{0.0472}
Rear (upper)
-
X
X
2.00
{0.0787}
Rear (lower)
X
-
X
1.60
{0.0630}
86
Rear end panel component
Rear end panel
-
-
X
1.00
{0.0394}
Rear end member
-
-
-
0.80
{0.031}
87
Rear bumper reinforcement No.1
-
-
X
1.00
{0.0394}
88
Rear bumper reinforcement No.2
-
-
X
1.00
{0.0394}

With SCR System

am6zzb00000697

x:Applied
-:Not applied

No.

Part Name

Ultra high-tension steel

High-tension steel

Rust proof steel

Thickness (mm) {in}
1
Bonnet (outer panel)
-
X
X
0.65
{0.025}
2
Bumper bracket component
Bumper bracket
X
-
X
2.60
{0.10}
Suspension mounting reinforcement
-
X
X
2.90
{0.11}
Outer frame reinforcement
-
X
X
2.00
{0.0787}
3
Shroud side member component
Apron reinforcement (lower)
-
X
X
1.00
{0.0394}
Side stay
-
-
X
1.20
{0.0472}
Shroud side panel
-
X
X
0.90
{0.035}
4
Shroud upper reinforcement
-
-
X
0.90
{0.035)
5
Front side frame (inner)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
6
Front side frame (outer)
Front
-
X
X
1.40
{0.0551}
Rear
X
-
X
1.60
{0.0630}
7
Light bracket
-
-
X
1.60
{0.0630}
8
Wheel apron component
Suspension housing (upper)
-
X
X
2.30
{0.091}
Apron reinforcement
-
-
X
2.00
{0.0787}
Apron reinforcement No.3
X
-
X
1.40
{0.0551}
Cowl side reinforcement (inner)
-
X
X
1.00
{0.0394}
Suspension housing (lower)
-
-
X
1.00
{0.0394}
9
Front wheel apron panel
-
-
X
0.80
{0.031}
10
Front fender junction
-
-
X
0.80
{0.031}
11
Wiper bracket component
Wiper bracket
-
X
X
1.40
{0.0551}
Bonnet actuator bracket
-
-
X
2.00
{0.0787}
12
Cowl plate (upper)
-
X
X
1.40
{0.0551}
13
Bonnet hinge reinforcement
-
X
X
1.80
{0.0709}
14
Cowl side reinforcement (upper)
-
X
X
1.60
{0.0630}
15
Cowl side reinforcement (lower)
Front
-
X
X
0.80
{0.031}
Rear
X
-
X
1.40
{0.0551}
16
Torque box
-
X
X
1.80
{0.0709}
17
Side member
-
-
X
1.40
{0.0551}
18
Front frame (rear)
X
-
X
2.00
{0.0787}
19
Front fender panel
-
-
X
0.70
{0.028}
20
Hinge pillar (inner)
X
-
X
1.20
{0.0472}
21
Front pillar (inner)
X
-
-
1.60
{0.0630}
22
Front pillar reinforcement (inner)
X
-
-
2.00
{0.0787}
23
Front pillar upper reinforcement
-
-
-
0.70
{0.028}
24
Nut plate
-
-
-
1.20
{0.0472}
25
Roof corner gusset
X
-
-
1.20
{0.0472}
26
Roof rail (inner)
X
-
-
1.20
{0.0472}
27
Rear pillar (inner) component
Roof rail (inner)
-
-
X
0.70
{0.028}
Rear pillar (inner)
-
-
-
0.65
{0.026}
Upper corner plate
-
-
-
1.80
{0.0709}
28
Suspension housing reinforcement component
C pillar reinforcement (upper)
X
-
-
1.20
{0.0472}
C pillar reinforcement (lower)
-
-
-
0.65
{0.026}
Suspension housing reinforcement
-
-
-
1.60
{0.0630}
29
Rear pillar (outer)
-
-
X
1.00
{0.0394}
30
Rear pillar reinforcement
-
-
-
1.00
{0.0394}
31
Corner junction
-
-
-
1.20
{0.0472}
32
Corner plate
-
-
X
0.70
{0.028}
33
Rear fender panel (lower)
-
-
X
0.70
{0.028}
34
Wheel housing (outer)
-
-
X
0.65
{0.026}
35
Tower anchor reinforcement
X
-
-
1.60
{0.0630}
36
Side sill reinforcement (rear)
X
-
X
1.60
{0.0630}
37
Wheel housing (inner)
-
-
X
1.40
{0.0551}
38
Center pillar reinforcement
Upper
X
-
-
2.00
{0.0787}
Lower
X
-
-
2.00
{0.0787}
39
Center pillar reinforcement (inner)
X
-
-
2.30
{0.0906}
40
Center pillar (inner)
-
X
X
1.20
{0.0472}
41
Roof rail reinforcement
X
-
-
1.40
{0.0551}
42
Front pillar reinforcement
Upper
X
-
-
1.60
{0.0630}
Lower
X
-
-
1.80
{0.0709}
43
Hinge reinforcement
X
-
X
1.40
{0.0551}
44
Hinge pillar reinforcement
X
-
-
2.90
{0.11}
45
Side sill reinforcement
X
-
X
1.40
{0.0551}
46
Cabin side outer frame
-
-
X
0.70
{0.028}
47
Front door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
48
Rear door
Outer panel
-
X
X
0.70
{0.028}
Inner panel
-
-
X
0.60
{0.024}
49
Dash lower component
Upper panel
-
-
X
0.80
{0.031}
Tunnel junction No.1
-
-
X
0.80
{0.031}
Front frame rear reinforcement
X
-
X
1.20
{0.0472}
Tunnel reinforcement
X
-
X
1.20
{0.0472}
50
Dash and cowl component
Cowl panel
-
-
X
1.80
{0.0709}
Dash upper panel
-
-
X
0.65
{0.026}
51
Front header
-
-
X
0.70
{0.028}
52
Roof reinforcement No.1
-
-
-
0.55
{0.022}
53
Roof reinforcement No.2
X
-
-
0.80
{0.031}
54
Roof reinforcement No.3
-
-
-
0.55
{0.022}
55
Roof reinforcement No.4
-
-
-
0.55
{0.022}
56
Roof reinforcement No.5
-
-
-
0.55
{0.022}
57
Rear header
-
-
X
0.70
{0.028}
58
Roof panel
-
-
-
0.75
{0.0310}
59
Roof panel component (with sunroof)
Roof panel (with sunroof)
-
-
-
0.75
{0.0310}
Roof reinforcement
X
-
-
2.30 {0.0906}
60
Liftgate
Outer panel
-
-
X
0.70
{0.028}
Inner panel
-
-
X
0.65
{0.026}
61
Front floor side panel
-
-
X
1.00
{0.0394}
62
Floor reinforcement
Front
X
-
-
1.80
{0.0709}
Rear
-
X
-
1.00
{0.0394}
63
Tunnel reinforcement
X
-
X
0.90
{0.035}
64
Crossmember No.2
X
-
-
1.00
{0.0394}
65
Crossmember No.2.5
X
-
-
1.60
{0.0630}
66
Front B frame
Front
X
-
-
1.40
{0.0551}
Rear
X
-
-
1.00
{0.0394}
67
C unit bracket
-
-
-
0.70 {0.028}
68
Side sill (inner)
Front
-
X
X
1.40
{0.0551}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.20
{0.0472}
69
Crossmember No.3 (lower)
Center upper
X
-
X
1.40
{0.0551}
Side upper
X
-
-
1.60
{0.0630}
Center lower
-
X
X
0.80
{0.031}
Side lower
-
X
X
1.00
{0.0394}
70
Crossmember No.3 (upper)
-
-
X
0.60
{0.024}
71
Anchorage reinforcement
-
X
X
0.90 {0.035}
72
Seat bracket
-
-
-
1.80 {0.0709}
73
Center floor panel
-
-
X
0.60
{0.024}
74
Rear floor front reinforcement
-
X
-
0.90
{0.035}
75
Crossmember No.4 (front)
-
-
X
0.90
{0.035}
76
Rear frame reinforcement
-
-
-
0.90
{0.035}
77
Rear side frame
Front
X
-
X
1.60
{0.0630}
Center
X
-
X
1.60
{0.0630}
Rear
X
-
X
1.40
{0.0551}
78
Trunk floor panel
-
-
X
0.60
{0.024}
79
Rear crossmember reinforcement
-
-
X
1.80
{0.0709}
80
Rear end crossmember
-
-
X
1.80
{0.0709}
81
Urea tank bracket
-
-
X
1.00
{0.0349}
82
Jack bracket
-
-
-
1.20
{0.0472}
83
Crossmember No.4 (rear)
-
-
X
0.90
{0.035}
84
Front brece reinforcement
-
-
-
1.60
{0.0630}
85
Rear bumper bracket
X
-
X
2.00
{0.0787}
86
Floor side panel No.2
-
-
X
0.70
{0.028}
87
Floor side panel No.1
Front
X
-
X
1.20
{0.0472}
Rear (upper)
-
X
X
2.00
{0.0787}
Rear (lower)
X
-
X
1.60
{0.0630}
88
Rear end panel component
Rear end panel
-
-
X
1.00
{0.0394}
Rear end member
-
-
-
0.80
{0.031}
89
Rear bumper reinforcement No.1
-
-
X
1.00
{0.0394}
90
Rear bumper reinforcement No.2
-
-
X
1.00
{0.0394}
