ULTRA HIGH-TENSION STEEL [CONSTRUCTION]

• Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.

• Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.

• Enhanced shock absorption has improved the safety.

• Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.

• When drilling welded parts, use a well-ground drill bit.

• After welding, inspect the weld strength. If adhesion is poor, perform arc welding (plug welding).

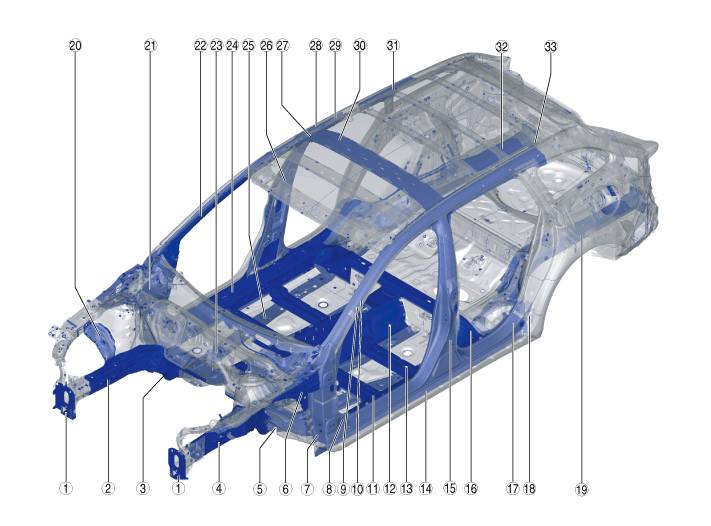

NO.	Part Name		Strength (MPa) {kgf/cm², psi}
1	Bumper bracket		590 {6016, 85572}
2	Front side frame (inner, rear)		590 {6016, 85572}
3	Front frame (rear)		590 {6016, 85572}
4	Front side frame (outer, rear)		590 {6016, 85572}
5	Front frame (rear) reinforcement		590 {6016, 85572}
6	Cowl side reinforcement (lower, rear)		590 {6016, 85572}
7	Hinge reinforcement		590 {6016, 85572}
8	Hinge pillar reinforcement		590 {6016, 85572}
9	Front pillar reinforcement		590 {6016, 85572}
10	Front pillar reinforcement (inner)		980 {9993, 142137}
11	Crossmember No.2		590 {6016, 85572}
12	Tunnel reinforcement		590 {6016, 85572}
13	Crossmember No.2.5		780 {7954, 113130}
14	Side sill reinforcement		780 {7954, 113130}
15	Center pillar reinforcement	Upper	780 {7954, 113130}
15	Center pillar reinforcement	Lower	590 {6016, 85572}
16	Crossmember No.3 (lower)	Center, upper	590 {6016, 85572}
16	Crossmember No.3 (lower)	Side, upper	590 {6016, 85572}
17	Side sill reinforcement (rear)		590 {6016, 85572}
18	Tower anchor reinforcement		590 {6016, 85572}
19	Rear side frame	Front	590 {6016, 85572}
		Center	590 {6016, 85572}
		Rear	590 {6016, 85572}
20	Apron reinforcement No.3		590 {6016, 85572}
21	Hinge pillar (inner)		590 {6016, 85572}
22	Front pillar (inner)		980 {9993, 142137}
23	Floor reinforcement (front)		980 {9993, 142137}
24	Side sill (inner)	Center	780 {7954, 113130}
24	Side sill (inner)	Rear	590 {6016, 85572}
25	Front B frame		590 {6016, 85572}
26	Center pillar reinforcement (inner)		980 {9993, 142137}
27	Roof corner gusset		590 {6016, 85572}
28	Roof rail reinforcement		780 {7954, 113130}
29	Roof rail (inner)		590 {6016, 85572}
30	Roof rail reinforcement No.2		590 {6016, 85572}
31	C pillar reinforcement		780 {7954, 113130}
32	Floor side panel No.1	Front	590 {6016, 85572}
32	Floor side panel No.1	Rear, lower	780 {7954, 113130}
33	Rear bumper bracket		590 {6016, 85572}

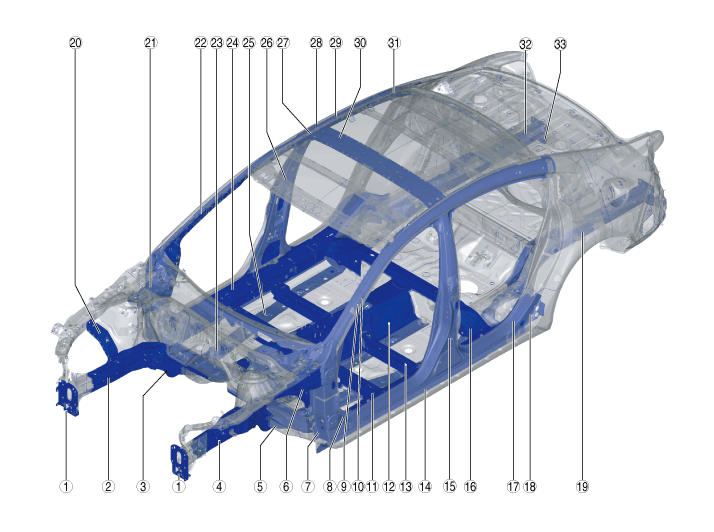

NO.	Part Name		Strength (MPa) {kgf/cm², psi}
1	Bumper bracket		590 {6016, 85572}
2	Front side frame (inner, rear)		590 {6016, 85572}
3	Front frame (rear)		590 {6016, 85572}
4	Front side frame (outer, rear)		590 {6016, 85572}
5	Front frame (rear) reinforcement		590 {6016, 85572}
6	Cowl side reinforcement (lower, rear)		590 {6016, 85572}
7	Hinge reinforcement		590 {6016, 85572}
8	Hinge pillar reinforcement		590 {6016, 85572}
9	Front pillar reinforcement		590 {6016, 85572}
10	Front pillar reinforcement (inner)		980 {9993, 142137}
11	Crossmember No.2		590 {6016, 85572}
12	Tunnel reinforcement		590 {6016, 85572}
13	Crossmember No.2.5		780 {7954, 113130}
14	Side sill reinforcement		780 {7954, 113130}
15	Center pillar reinforcement	Upper	780 {7954, 113130}
15	Center pillar reinforcement	Lower	590 {6016, 85572}
16	Crossmember No.3 (lower)	Center, upper	590 {6016, 85572}
16	Crossmember No.3 (lower)	Side, upper	590 {6016, 85572}
17	Side sill reinforcement (rear)		590 {6016, 85572}
18	Tower anchor reinforcement		590 {6016, 85572}
19	Rear side frame	Front	590 {6016, 85572}
		Center	590 {6016, 85572}
		Rear	590 {6016, 85572}
20	Apron reinforcement No.3		590 {6016, 85572}
21	Hinge pillar (inner)		590 {6016, 85572}
22	Front pillar (inner)		980 {9993, 142137}
23	Floor reinforcement (front)		980 {9993, 142137}
24	Side sill (inner)	Center	780 {7954, 113130}
24	Side sill (inner)	Rear	590 {6016, 85572}
25	Front B frame		590 {6016, 85572}
26	Center pillar reinforcement (inner)		980 {9993, 142137}
27	Roof corner gusset		590 {6016, 85572}
28	Roof rail reinforcement		780 {7954, 113130}
29	Roof rail (inner)		590 {6016, 85572}
30	Roof rail reinforcement No.2		590 {6016, 85572}
31	C pillar reinforcement (upper)		780 {7954, 113130}
32	Floor side panel No.1	Front	590 {6016, 85572}
32	Floor side panel No.1	Rear, lower	780 {7954, 113130}
33	Rear bumper bracket		590 {6016, 85572}
