FRONT SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008605900

Symbol Mark

am6zzb00000349

Removal Procedure

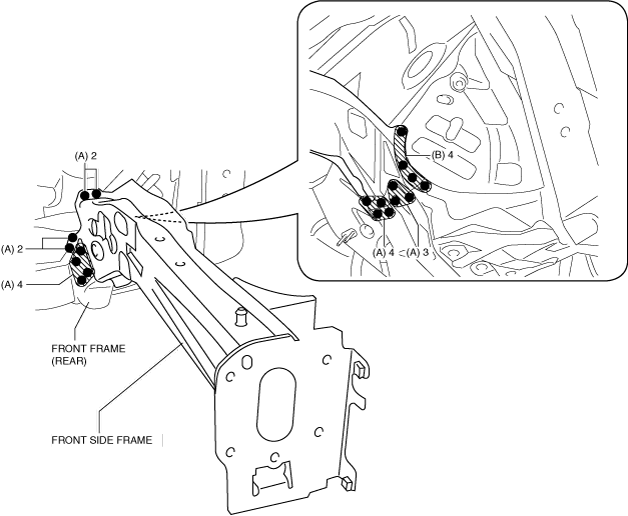

1.  Drill the spot welds in the 15 locations in area A shown in the figure.

2.  Drill the spot welds in the 4 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 4 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

am6zzb00000350

3.  Remove the front side frame from the front frame (rear).
