FRONT SIDE FRAME INSTALLATION [PANEL REPLACEMENT]
id098008606000
Symbol Mark
am6zzb00000880
|
Installation Procedure
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for the plug welding before installing the new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.

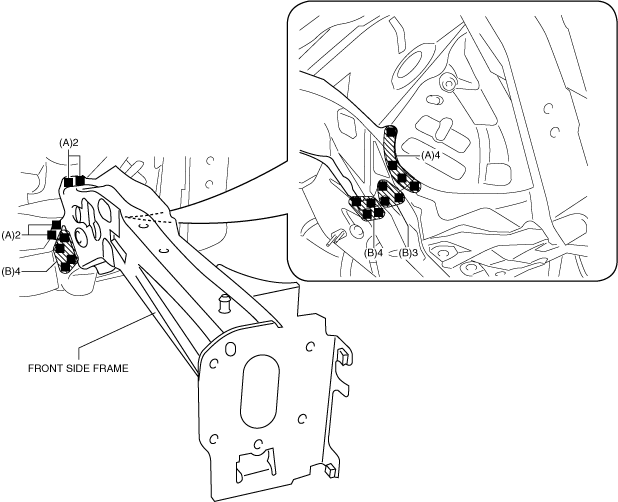

4. Plug welds in the 8 locations in area A shown in the figure.
5. Plug welds in the 11 locations in area B shown in the figure and install the front side frame.
