REAR PILLAR REINFORCEMENT REMOVAL [PANEL REPLACEMENT]

id098008612300

Symbol Mark

am6zzb00000455

Removal Procedure

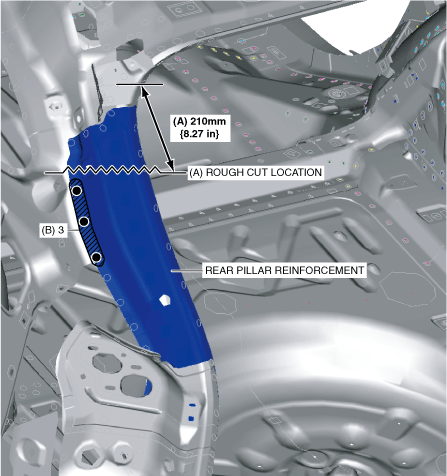

1.  Rough cut location in area A shown in the figure.

2.  Drill the spot welds in the 3 locations in area B shown in the figure.

am6zzb00000873

3.  Remove the rear pillar reinforcement.
