REAR PILLAR REINFORCEMENT INSTALLATION [PANEL REPLACEMENT]

id098008612400

Symbol Mark

am3zzb00000561

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

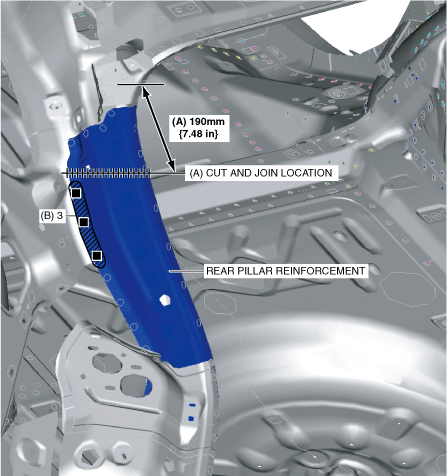

4.  Cut and join location in area A shown in the figure.

5.  Plug welds in the 3 locations in area B shown in the figure and install the rear pillar reinforcement.
