REAR FENDER PANEL (LOWER) REMOVAL [PANEL REPLACEMENT]

id098008614300

Symbol Mark

am6zzb00000425

Removal Procedure

4SD

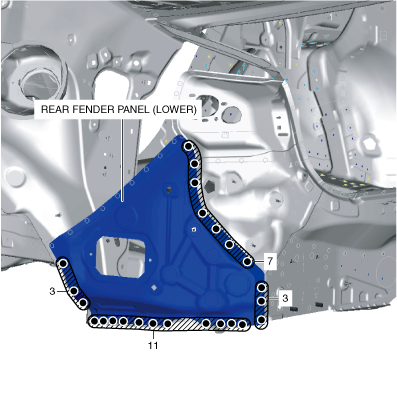

1.  Drill the spot welds in the 24 locations shown in the figure.

am6zzb00000744

2.  Remove the rear fender panel (lower).

WGN

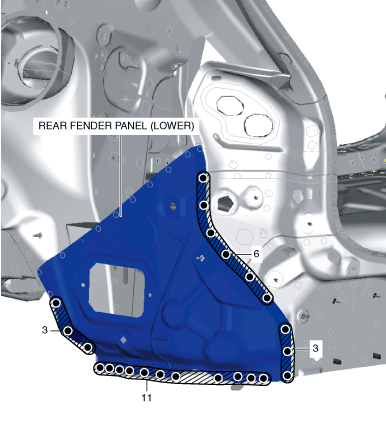

1.  Drill the spot welds in the 23 locations shown in the figure.

am6zzb00000745

2.  Remove the rear fender panel (lower).
