REAR FENDER PANEL (LOWER) INSTALLATION [PANEL REPLACEMENT]

id098008614400

Symbol Mark

ac5uub00000096

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

3.  Plug welds in the 24 locations shown in the figure and install the rear fender panel (lower).

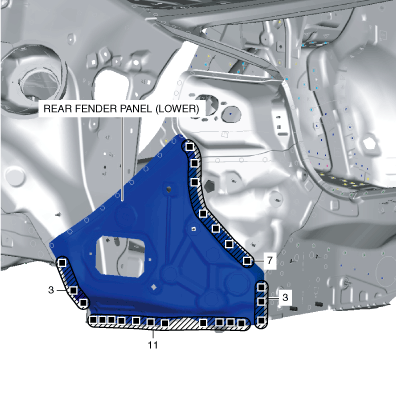

am6zzb00000747

WGN

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  After temporarily installing new parts, make sure the related parts fit properly.

3.  Plug welds in the 23 locations shown in the figure and install the rear fender panel (lower).

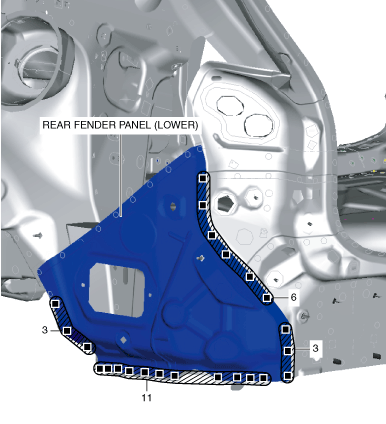

am6zzb00000748
