SIDE SILL PANEL INSTALLATION [PANEL REPLACEMENT]

id098008615200

Symbol Mrak

am3zzb00000561

Installation Procedure

Side Sill (Front-side)

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

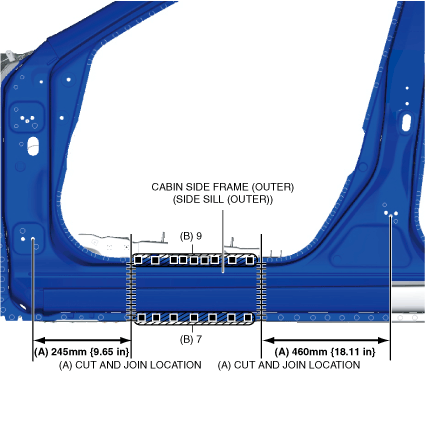

4.  Cut and join the 2 locations in area A shown in the figure.

5.  Plug welds in the 16 locations in area B shown in the figure and install the cabin side frame (outer) (side sill (outer)).

am6zzb00000732

Side Sill (component)

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

L.H.D.

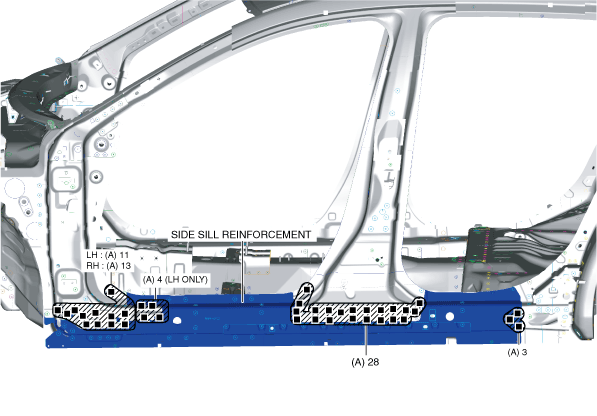

1.  Plug welds in area A (LH: 46 locations, RH: 44 locations) shown in the figure and install the side sill reinforcement.

am6zzb00000733

2.  Cut and join the 3 locations in area B shown in the figure.

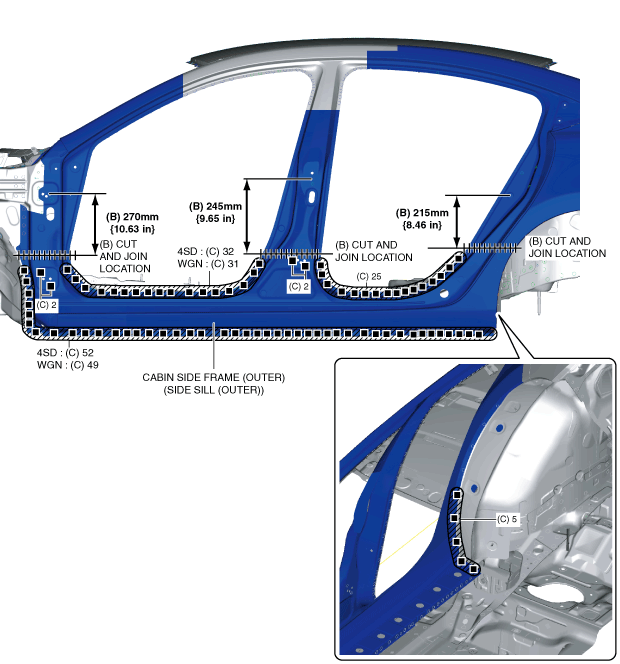

3.  Plug welds in the 118 locations (4SD), 114 locations (WGN) in area C shown in the figure and install the cabin side frame (outer) (side sill (outer)).

am6zzb00000734

R.H.D.

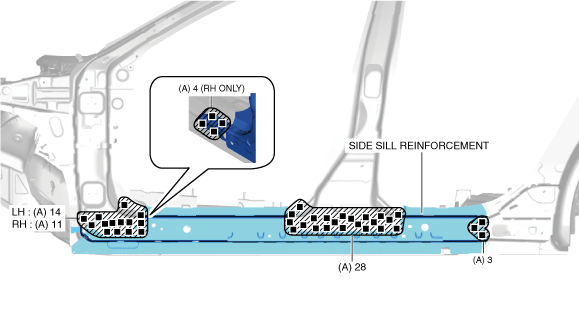

1.  Plug welds in area A (LH: 45 locations, RH: 46 locations) shown in the figure and install the side sill reinforcement.

am6zzb00000859

2.  Cut and join the 3 locations in area B shown in the figure.

3.  Plug welds in the 118 locations (4SD), 114 locations (WGN) in area C shown in the figure and install the cabin side frame (outer) (side sill (outer)).
