SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]

id098008615300

Symbol Mark

am6zzb00000407

Removal Procedure

Side Sill (Front-side)

1.  Rough cut the 2 locations in area A shown in the figure.

2.  Drill the spot welds in the 14 locations in area B shown in the figure.

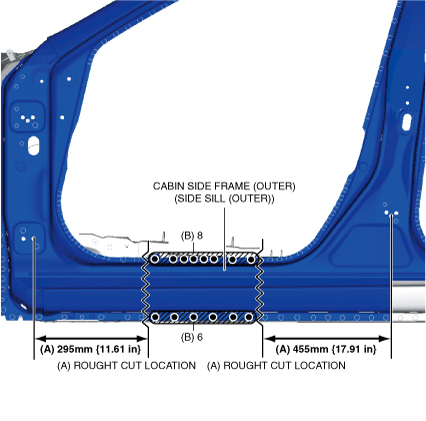

am6zzb00000728

3.  Remove the cabin side frame (outer) (side sill (outer)).

Side Sill (Component)

L.H.D.

1.  Rough cut the 3 locations in area A shown in the figure.

2.  Drill the spot welds in the 117 locations (4SD), 113 locations (WGN) in area B shown in the figure.

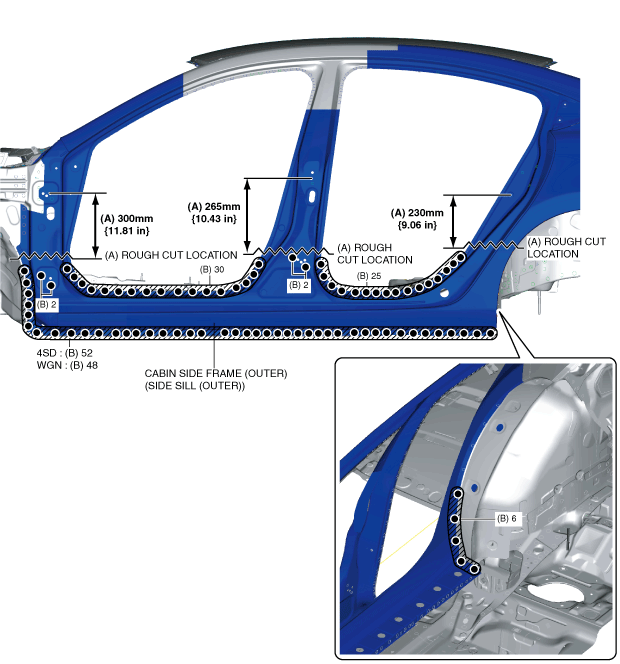

am6zzb00000729

3.  Remove the cabin side frame (outer) (side sill (outer)).

4.  Drill the spot welds in area C (LH: 46 locations, RH: 44 locations) shown in the figure.

am6zzb00000730

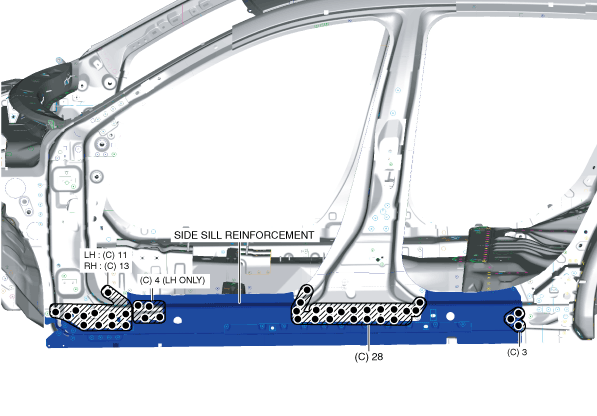

5.  Pull the side sill reinforcement from the side sill (inner), hinge reinforcement and center pillar reinforcement, and then remove it.

R.H.D.

1.  Rough cut the 3 locations in area A shown in the figure.

2.  Drill the spot welds in the 117 locations (4SD), 113 locations (WGN) in area B shown in the figure.

am6zzb00000729

3.  Remove the cabin side frame (outer) (side sill (outer)).

4.  Drill the spot welds in area C (LH: 45 locations, RH: 46 locations) shown in the figure.

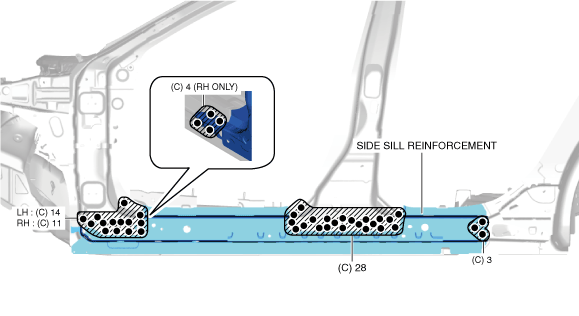

am6zzb00000856

5.  Pull the side sill reinforcement from the side sill (inner), hinge reinforcement and center pillar reinforcement, and then remove it.
