FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT]

id098008618700

Symbol Mark

am6zzb00000459

Removal Procedure

1.  Drill the spot welds in the 40 locations in area A shown in the figure.

am6zzb00000766

2.  Remove the floor side panel NO.1.

3.  Drill the spot welds in the 12 locations in area B shown in the figure.

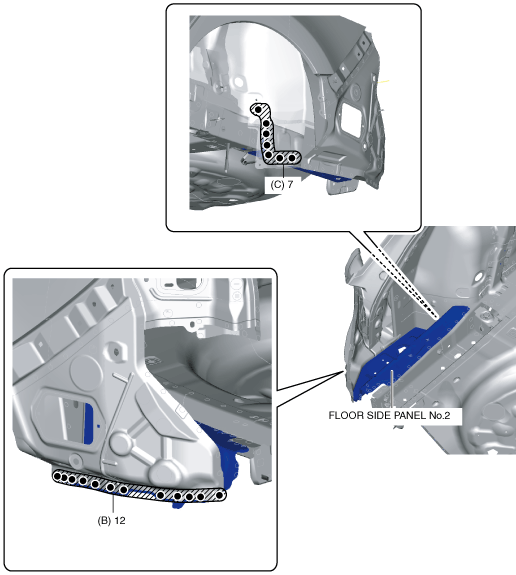

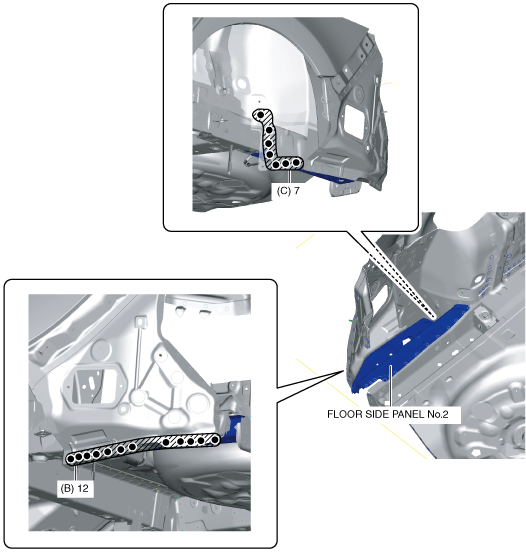

4.  Drill the spot welds in the 7 locations in area C shown in the figure from the rear wheel housing side.

4SD

am6zzb00000767

WGN

am6zzb00000768

5.  Remove the floor side panel No.2.
