FLOOR SIDE PANEL INSTALLATION [PANEL REPLACEMENT]

id098008618800

Symbol Mark

am6zzb00000887

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Spot welds in the 12 locations in area A shown in the figure.

5.  Plug welds in the 7 locations in area B shown in the figure and install the floor side panel No.2.

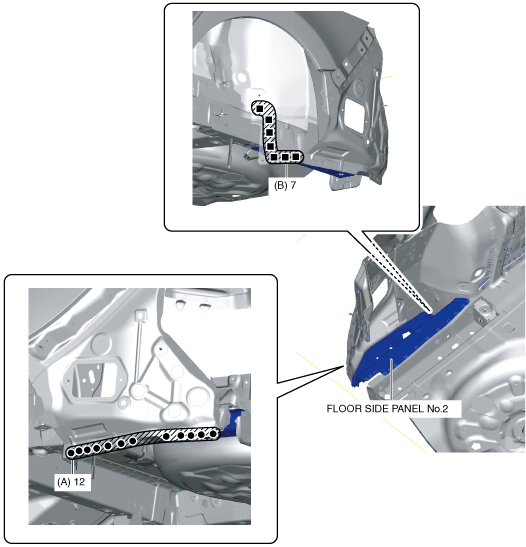

4SD

am6zzb00000769

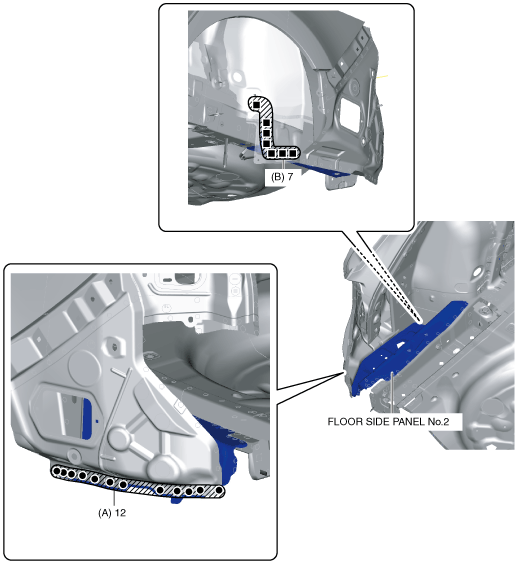

WGN

am6zzb00000770

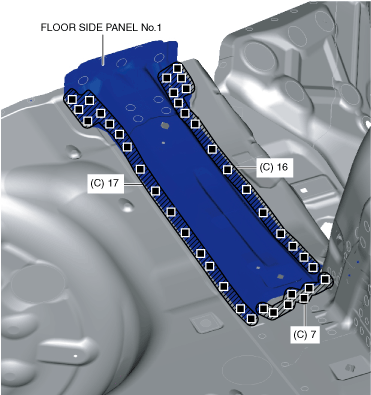

6.  Plug welds in the 40 locations in area C shown in the figure and install the floor side panel No.1.

am6zzb00000771
