FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008742100

Symbol Mark

am6xub00000274

Removal Procedure

LH

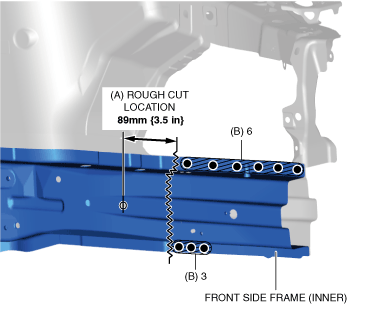

1.  Rough cut the area A shown in the figure.

2.  Drill the spot welds in the 9 locations in area B shown in the figure.

am6xub00000243

3.  Remove the front side frame (inner).

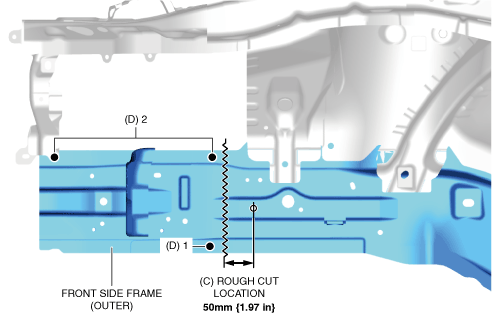

4.  Rough cut the area C shown in the figure.

5.  Drill the spot welds in the 3 locations in area D shown in the figure.

am6xub00000244

6.  Remove the front side frame (outer).

RH

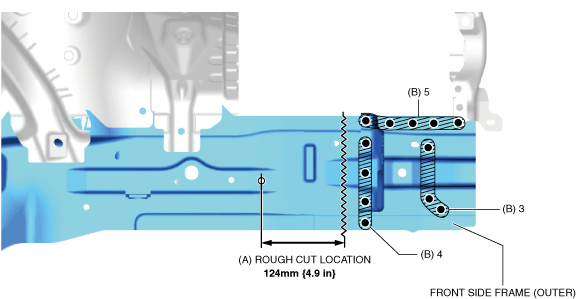

1.  Rough cut the area A shown in the figure.

2.  Drill the spot welds in the 12 locations in area B shown in the figure.

am6zzb00000723

3.  Remove the front side frame (outer).

4.  Drill the spot welds in the 3 locations in area C shown in the figure.

am6xub00000248

5.  Remove the front side frame outer reinforcement.

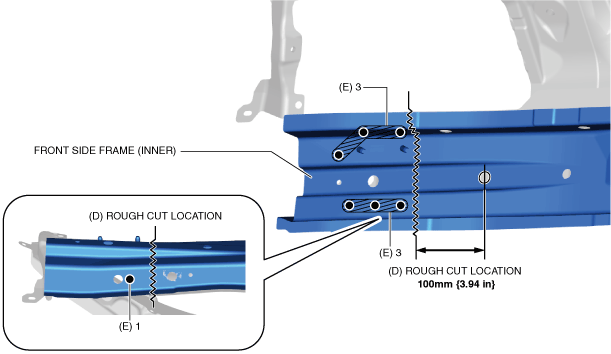

6.  Rough cut area D shown in the figure.

7.  Drill the spot welds in the 7 locations in area E shown in the figure.

am6zzb00000870

8.  Remove the front side frame (inner).

9.  Drill the spot welds in the 4 locations in area F shown in the figure.

am6zzb00000864

10.  Remove the front side frame inner reinforcement.
