FRONT FRAME (REAR) REMOVAL [PANEL REPLACEMENT]

id098008742500

Symbol Mark

am6zzb00000375

Removal Procedure

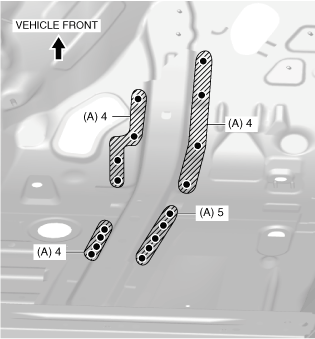

1.  Drill the spot welds in the 17 locations in area A shown in the figure from the interior.

am6xub00000268

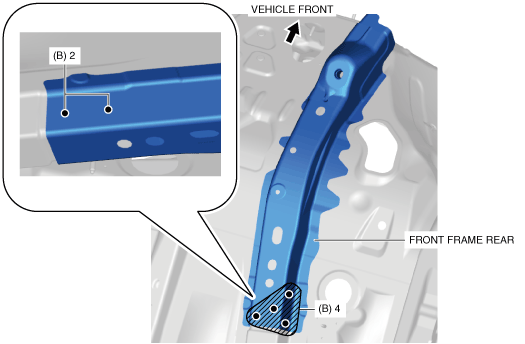

2.  Drill the spot welds in the 6 locations in area B shown in the figure.

am6xub00000269

3.  Remove the front frame (rear).
