ROOF PANEL REMOVAL [PANEL REPLACEMENT]

id098008744300

Symbol Mark

am6zzb00000480

Removal Procedure

Caution

•   To prevent injury, remove the curtain air bag module before performing the work.

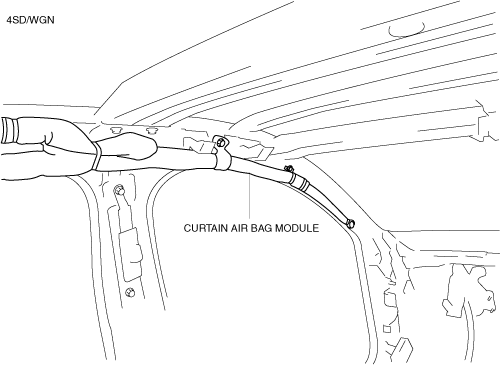

Front-side

am6zzb00000700

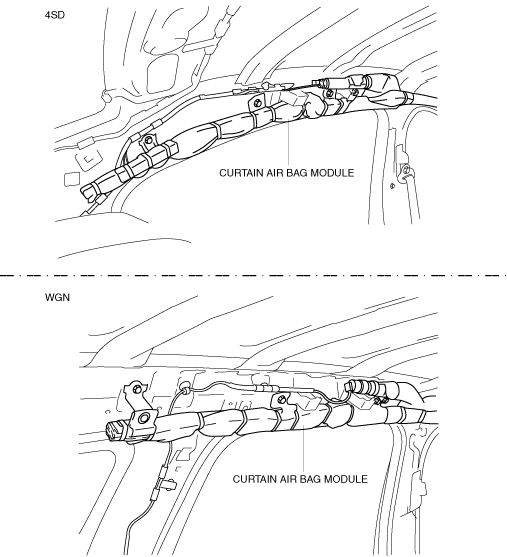

Rear-side

am6zzb00000709

4SD

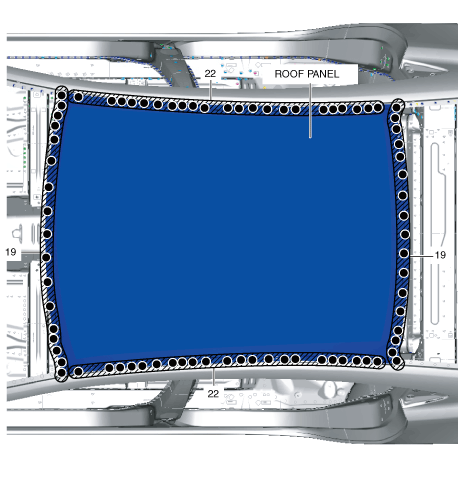

1.  Drill the spot welds in the 82 locations shown in the figure.

am6zzb00000702

2.  Remove the roof panel.

WGN

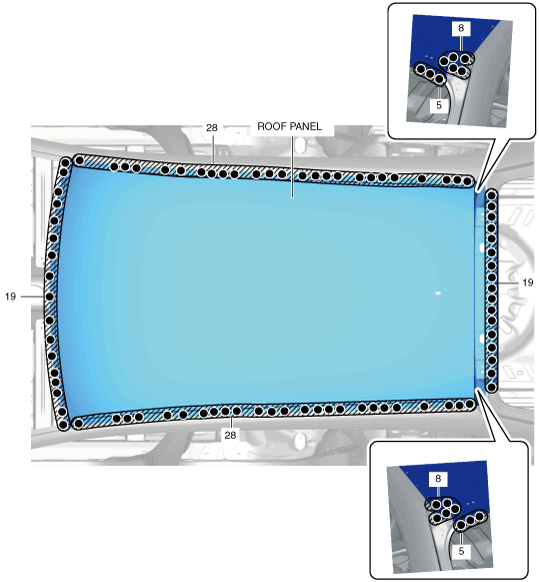

1.  Drill the spot welds in the 120 locations shown in the figure.

am6zzb00000703

2.  Remove the roof panel.
