ROOF PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744400

Symbol Mark

am6zzb00000887

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

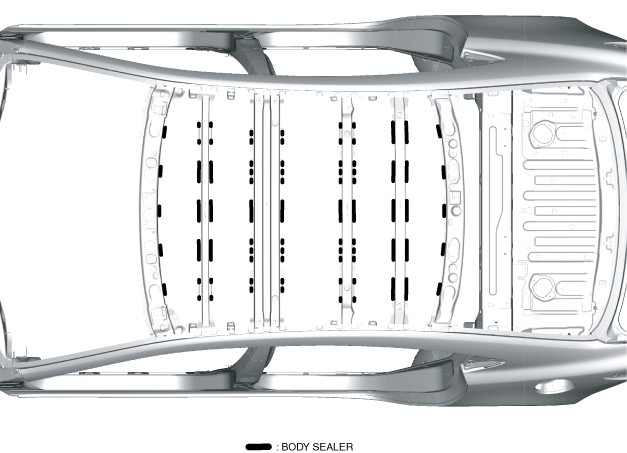

4.  Apply the body sealer to the position shown in the figure.

am6zzb00000704

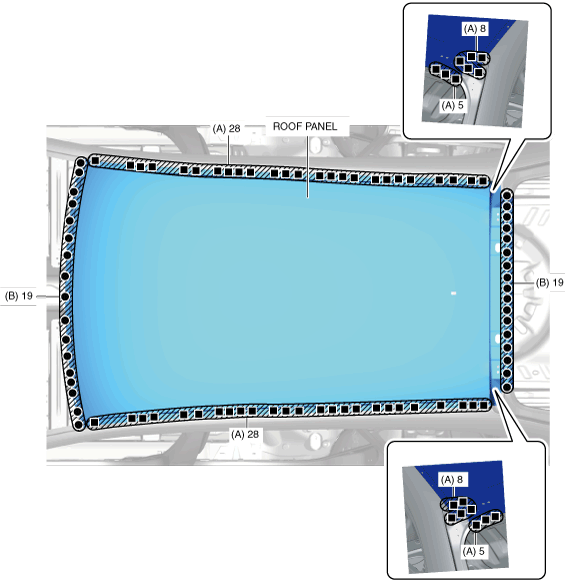

5.  Plug welds in the 44 locations in area A shown in the figure.

6.  Spot welds in the 38 locations in area B shown in the figure and install the roof panel.

am6zzb00000705

WGN

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

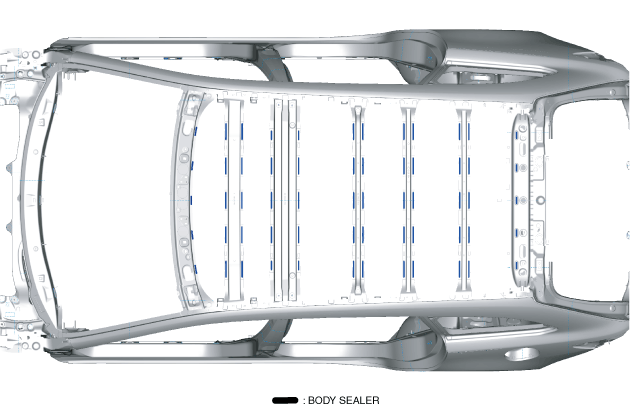

4.  Apply the body sealer to the position shown in the figure.

am6zzb00000706

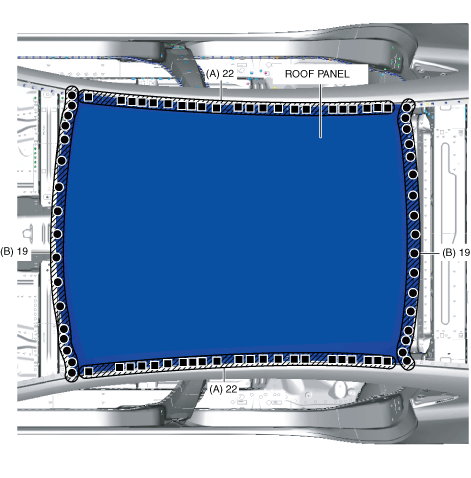

5.  Plug welds in the 82 locations in area A shown in the figure.

6.  Spot welds in the 38 locations in area B shown in the figure and install the roof panel.
