REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Mark

am6zzb00000445

Removal Procedure

4SD

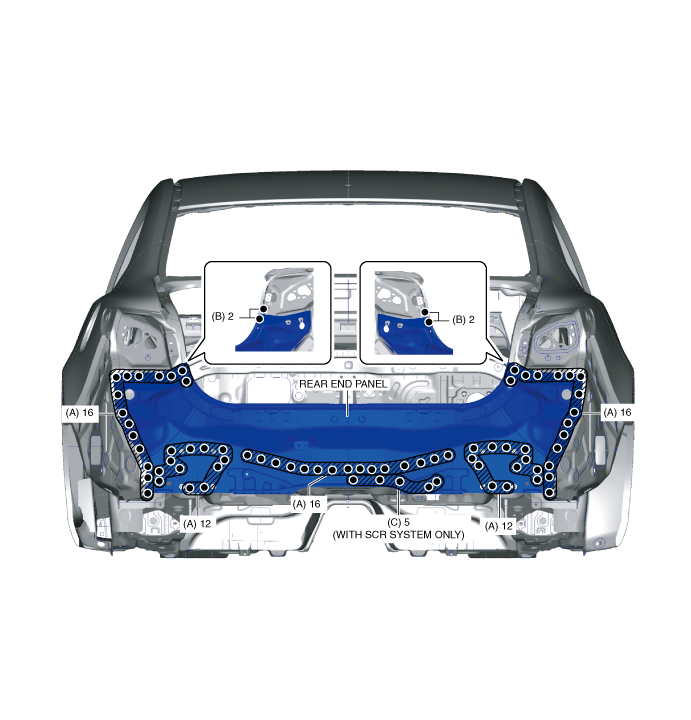

1.  Drill the spot welds in the 72 locations in area A shown in the figure.

2.  Drill the spot welds in the 4 locations in area B shown in the figure from the interior.

3.  Drill the spot welds in the 5 locations in area C shown in the figure. (With SCR (Selected Catalytic Reduction) System only).

am6zzb00000756

4.  Remove the rear end panel.

WGN

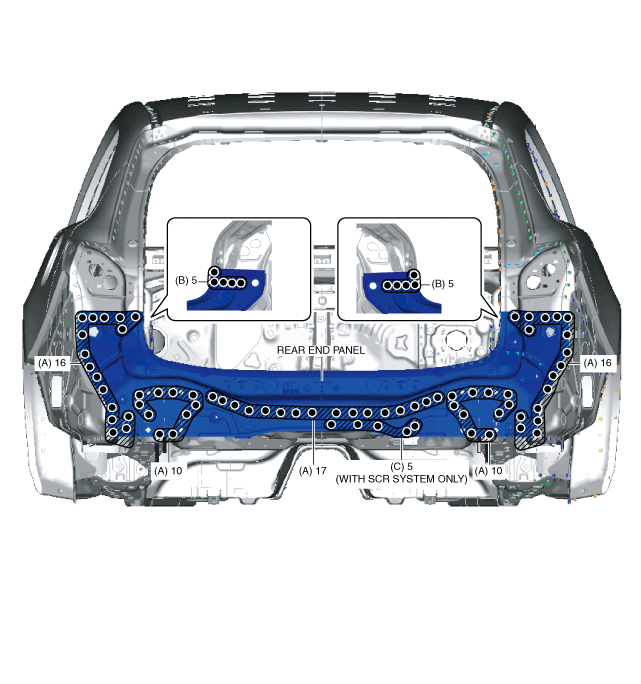

1.  Drill the spot welds in the 69 locations in area A shown in the figure.

2.  Drill the spot welds in the 10 locations in area B shown in the figure from the interior.

3.  Drill the spot welds in the 5 locations in area C shown in the figure. (Wiht SCR System only)

am6zzb00000757

4.  Remove the rear end panel.
