REAR END PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744600

Symbol Mark

ac5uub00000096

Installation Procedure

4SD

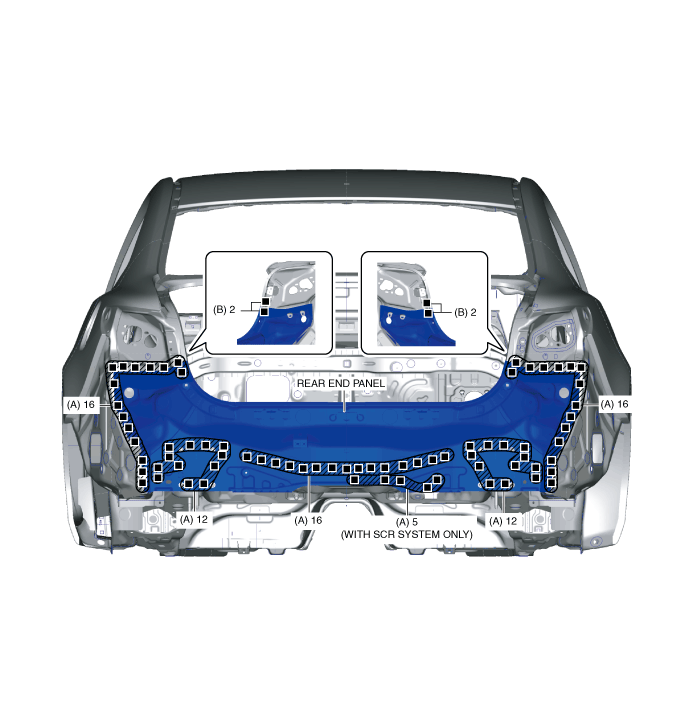

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug welds in the 72 locations (Without SCR System), 77 locations (With SCR System) in area A shown in the figure.

5.  Plug welds in the 4 locations in area B shown in the figure and install the rear end panel.

am6zzb00000758

WGN

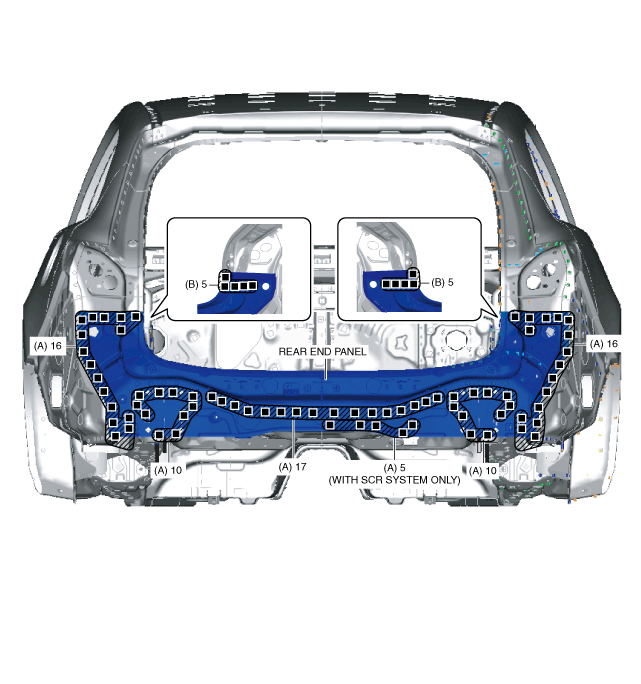

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug welds in the 69 locations (Without SCR System), 74 locations (With SCR System) in area A shown in the figure.

5.  Plug welds in the 10 locations in area B shown in the figure and install the rear end panel.

am6zzb00000759
