REAR FENDER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008745000

Symbol Mark

am3zzb00000561

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Before installing new parts, apply body sealer to the wheel arch line.

am6zzb00000904

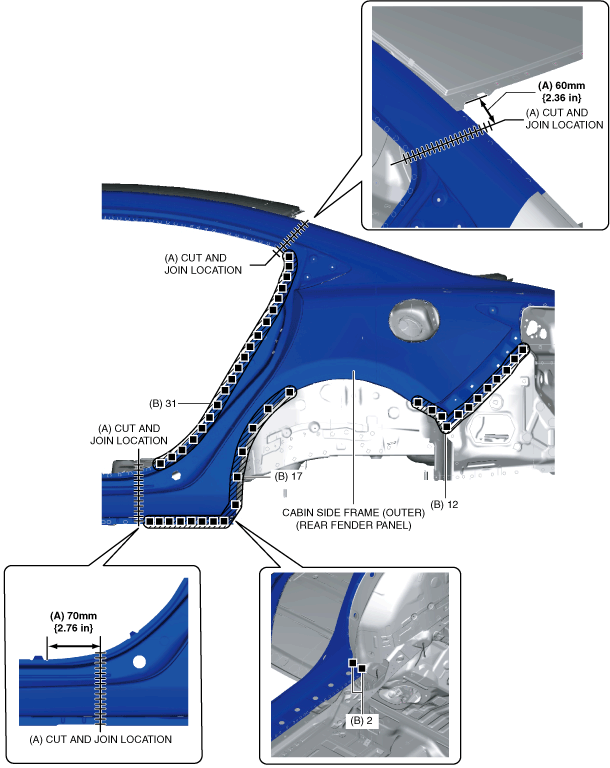

5.  Cut and join the 2 locations in area A shown in the figure.

6.  Plug welds in the 62 locations in area B shown in the figure.

am6zzb00000739

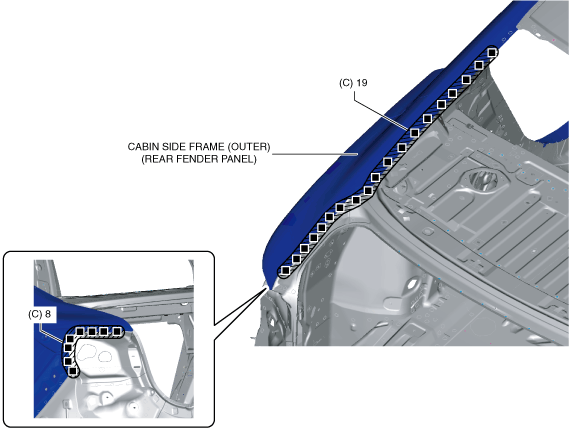

7.  Plug welds in the 27 locations in area C shown in the figure and install the cabin side frame (rear fender panel).

am6zzb00000740

WGN

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

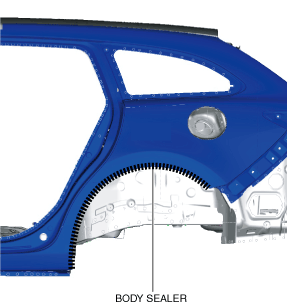

4.  Before installing new parts, apply body sealer to the wheel arch line.

am6zzb00000905

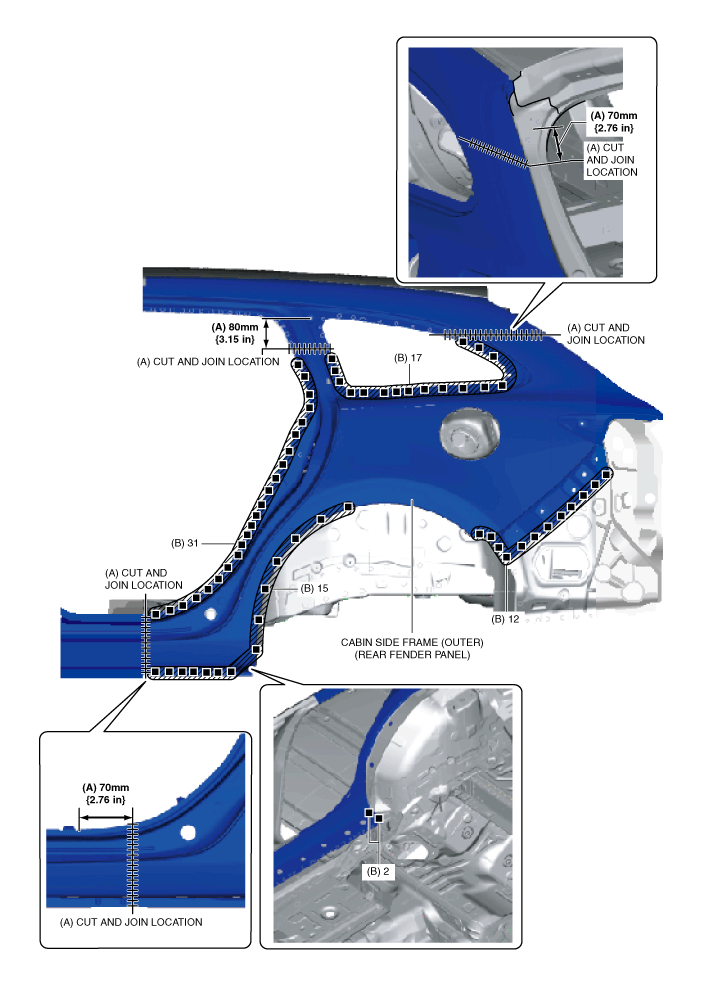

5.  Cut and join the 3 locations in area A shown in the figure.

6.  Plug welds in the 77 locations in area B shown in the figure.

am6zzb00000741

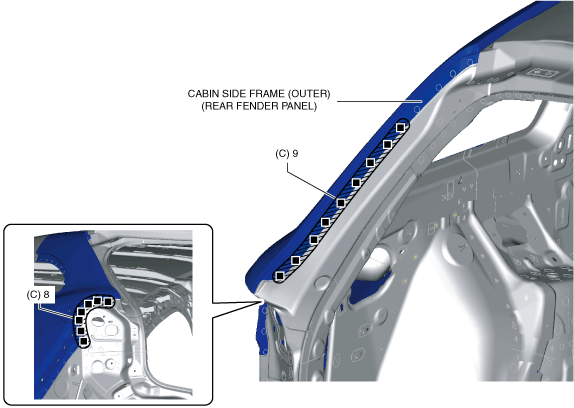

7.  Plug welds in the 16 locations in area C shown in the figure and install the cabin side frame (outer) (rear fender panel).

am6zzb00000742
