REAR PILLAR (OUTER) INSTALLATION [PANEL REPLACEMENT]

id098008747300

Symbol Mark

am6zzb00000911

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

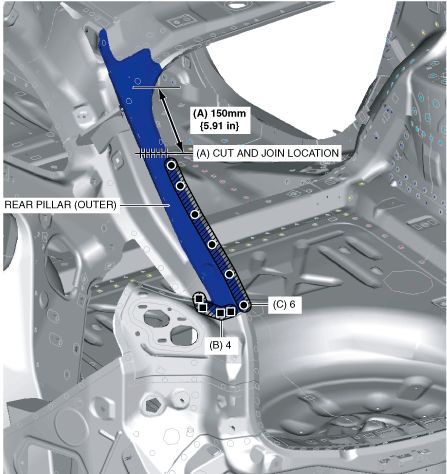

4.  Cut and join location in area A shown in the figure.

5.  Plug welds in the 4 locations in area B shown in the figure.

6.  Spot welds in the 6 locations in area C shown in the figure and install the rear pillar (outer).
