REAR SIDE FRAME REMOVAL [PANEL REPLACEMENT]

id098008801200

Symbol Mark

am6zzb00000472

Removal Procedure

Without SCR System

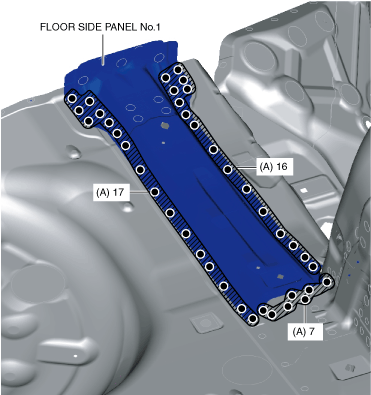

1. Drill the spot welds in the 40 locations in area A shown in the figure.

am6zzb00000766

2. Remove the floor side panel No.1.

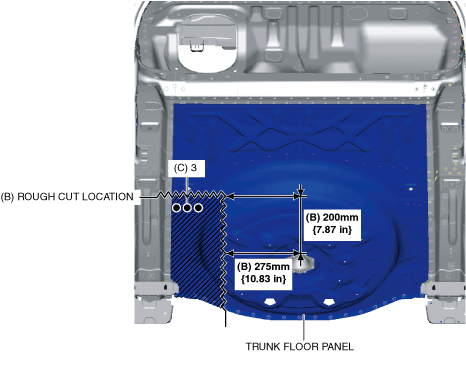

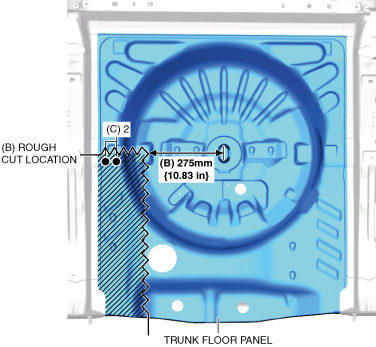

3. Rough cut the location in area B shown in the figure.

4. Drill the spot welds in the 3 locations in area C shown in the figure.

am6zzb00000773

5. Remove the part of trunk floor panel (shaded arear).

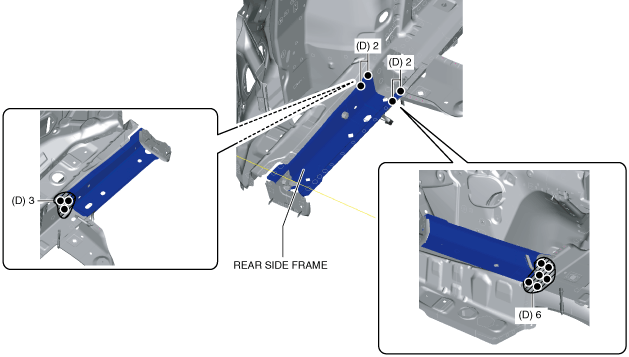

6. Drill the spot welds in the 13 locations in area D shown in the figure.

am6zzb00000774

7. Remove the rear side frame.

With SCR System
