REAR SIDE FRAME INSTALLATION [PANEL REPLACEMENT]

id098008801300

Symbol Mark

am3zzb00000561

Installation Procedure

Without SCR System

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug welds in the 13 locations in area A shown in the figure and install the rear side frame.

am6zzb00000776

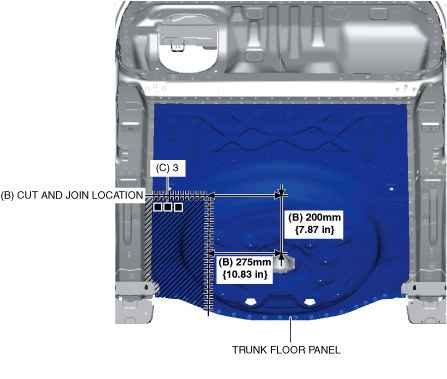

5.  Cut and join location in area B shown in the figure.

6.  Plug welds in the 3 locations in area C shown in the figure and install the part of trunk floor panel.

am6zzb00000777

7.  Plug welds in the 40 locations in area D shown in the figure and install the floor side panel No.1.

am6zzb00000912

With SCR System

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug welds in the 13 locations in area A shown in the figure and install the rear side frame.

am6zzb00000776

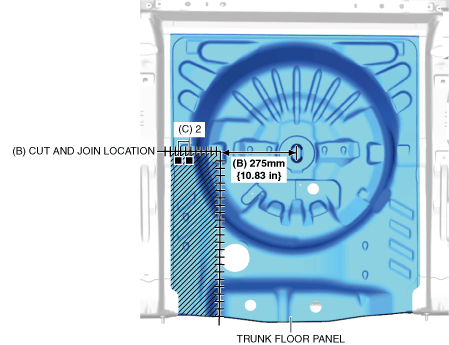

5.  Cut and join location in area B shown in the figure.

6.  Plug welds in the 2 locations in area C shown in the figure and install the part of trunk floor panel.

am6zzb00000779

7.  Plug welds in the 40 locations in area D shown in the figure and install the floor side panel No.1.

am6zzb00000912
