PACKAGE TRAY INSTALLATION [PANEL REPLACEMENT]

id098008819800

Symbol Mark

ac5uub00000096

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug welds in the 44 locations in area A shown in the figure.

am6xub00000300

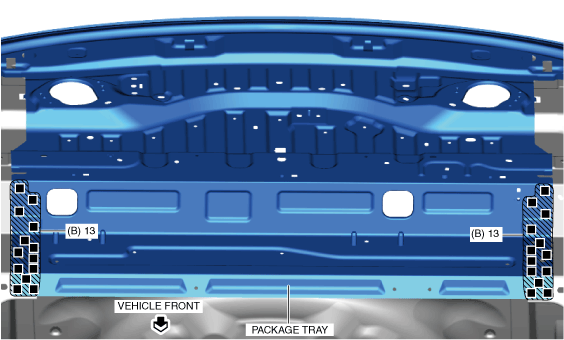

5.  Plug welds in the 26 locations in area B shown in the figure from the interior and install the package tray.
