PACKAGE TRAY REMOVAL [PANEL REPLACEMENT]

id098008819900

Symbol Mark

am6zzb00000431

Removal Procedure

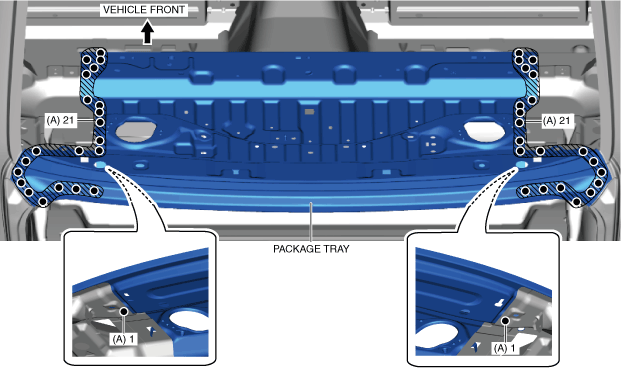

1.  Drill the spot welds in the 44 locations in area A shown in the figure.

am6xub00000302

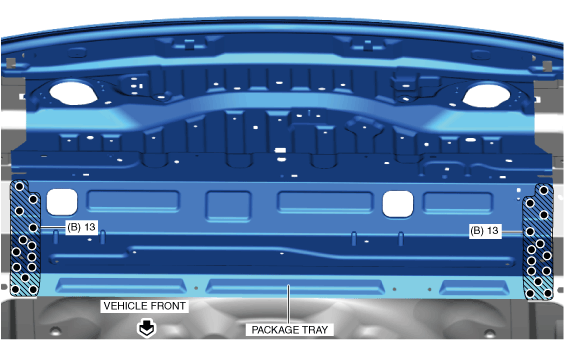

2.  Drill the spot welds in the 26 locations in area B show in the figure from the interior.

am6xub00000303

3.  Remove the package tray.
