PACKAGE GUSSET REMOVAL [PANEL REPLACEMENT]

id098008820000

Symbol Mark

am6zzb00000431

Removal Procedure

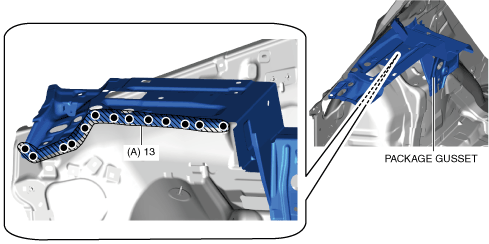

1.  Drill the spot welds in the 13 locations in area A shown in the figure.

am6zzb00000906

2.  Drill the spot welds in the 15 locations in area B shown in the figure.

am6zzb00000907

3.  Remove the package gusset.
