PACKAGE GUSSET INSTALLATION [PANEL REPLACEMENT]


id098008820100


Symbol Mark

am6zzb00000908

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

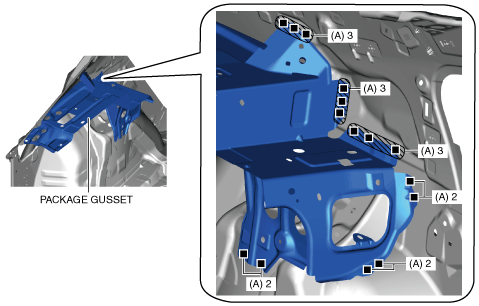

4.  Plug welds in the 15 locations in area A shown in the figure.

am6zzb00000909

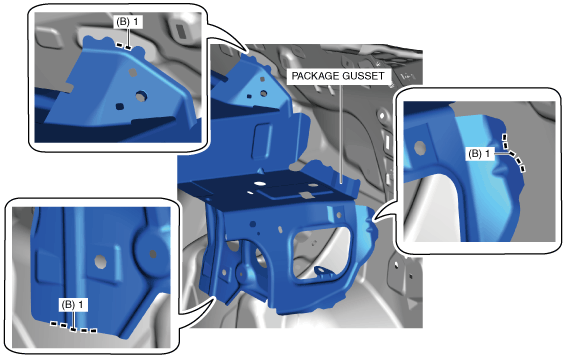

5.  Then, fillet welds in the 3 locations in area B shown in the figure.

am6xub00000297

6.  Plug welds in the 13 locations in area C shown in the figure and install the package gusset.
