FRONT FENDER JUNCTION REMOVAL [PANEL REPLACEMENT]

id098008828300

Symbol Mark

am6zzb00000345

Removal Procedure

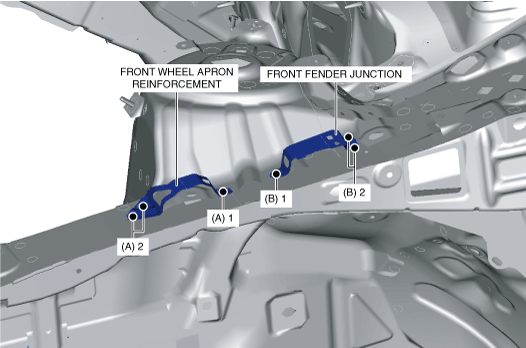

1.  Drill the spot welds in the 3 locations in area A shown in the figure.

am6zzb00000946

2.  Remove the front wheel apron reinforcement.

3.  Drill the spot welds in the 3 locations in area B shown in the figure.

4.  Remova the front fender junction.
