TRUNK FLOOR PANEL REMOVAL [PANEL REPLACEMENT]

id098008829500

Symbol Mark

am6zzb00000467

Removal Procedure

Without SCR System

1.  Drill the spot welds in the 96 locations shown in the figure.

Note

•  When drilling the spot welds in the 96 locations shown in the figure, do not drill through-holes in consideration of the workability when installing.

am6xub00000194

2.  Remove the trunk floor panel.

With SCR System

1.  Drill the spot welds in the 100 locations shown in the figure.

Note

•  When drilling the spot welds in the 100 locations shown in the figure, do not drill through-holes in consideration of the workability when installing.

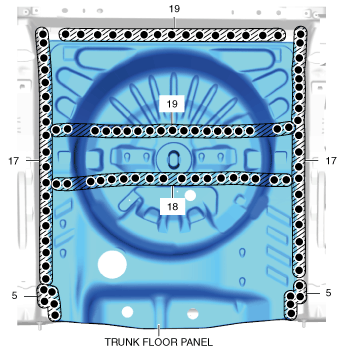

am6xub00000238

2.  Remove the trunk floor panel.
