TRUNK FLOOR PANEL INSTALLATION [PANEL REPLACEMENT]

id098008829600

Symbol Mark

am6zzb00000887

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

Without SCR System

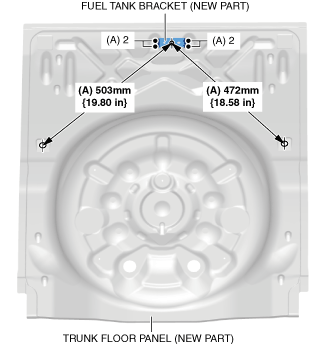

1.  Spot welds in the 4 locations in area A shown in the figure and install a new fuel tank bracket to a new trunk floor panel.

am6xub00000203

2.  Insert the trunk floor panel in the direction of the arrows shown in the figure.

am6xub00000195

3.  Plug welds in the 96 locations in area B shown in the figure and install the trunk floor panel.

am6xub00000196

With SCR System

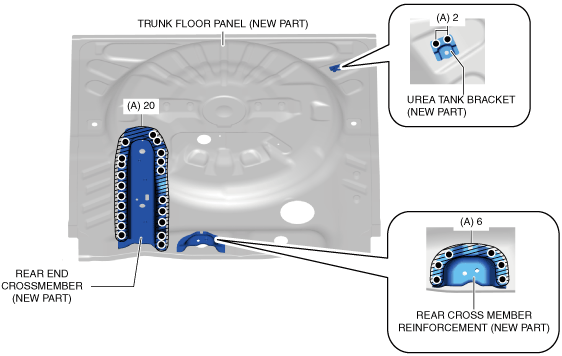

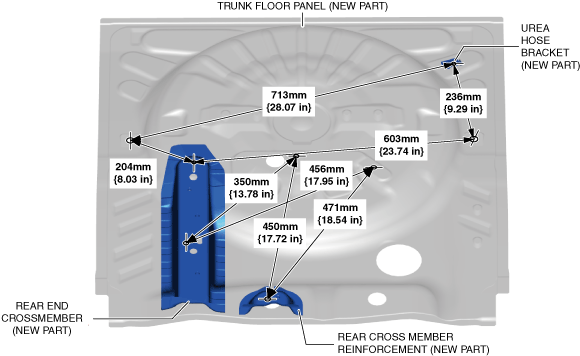

1.  Spot welds in the 28 locations in area A shown in the figure and install a new urea hose bracket, rear end crossmember, and rear crossmember reinforcement.

am6xub00000204

am6xub00000205

2.  Insert the trunk floor panel in the direction of the arrows shown in the figure.

am6xub00000197

3.  Plug welds in the 100 locations in area B shown in the figure and install the trunk floor panel.

am6xub00000206
