REAR FENDER RAIN RAIL INSTALLATION [PANEL REPLACEMENT]

id098008902300

Symbol Mark

am6zzb00000887

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

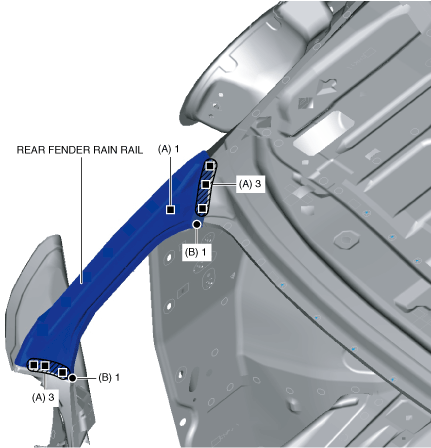

4.  Plug welds in the 7 locations in area A shown in the figure.

5.  Spot welds in the 2 locations in area B shown in the figure and install the rear fender rain rail.

am6zzb00000755
