SHROUD SIDE MEMBER REMOVAL [PANEL REPLACEMENT]

id098008919000

Symbol Mark

am6zzb00000325

Removal Procedure

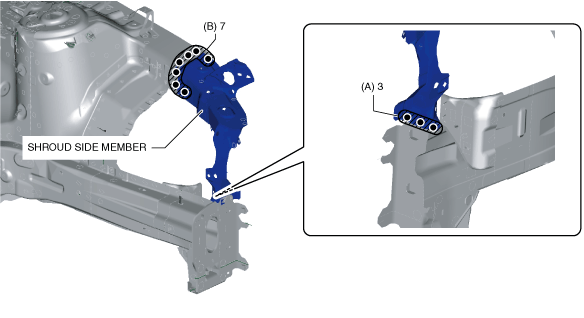

1.  Drill the spot welds in the 3 locations in area A shown in the figure.

2.  Drill the spot welds in the 7 locations in area B shown in the figure.

am6zzb00000721

3.  Remove the shroud side member.
