SHROUD UPPER REINFORCEMENT INSTALLATION [PANEL REPLACEMENT]

id098008928000

Symbol Mark

am6zzb00000880

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

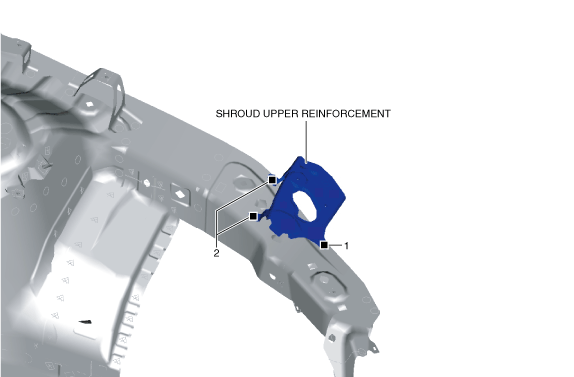

4.  Plug welds in the 3 locations shown in the figure and install the shroud upper reinforcement.

am6zzb00000881
