COWL SIDE REINFORCEMENT (FRONT) COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008950000

Symbol Mark

am6zzb00000329

Removal Procedure

Caution

•  If the cutting work is performed using flame, a fire could occur because an insulator is inserted in the location shown in the figure. When performing the cutting work near the insulator insert, avoid using flame and use an air saw or drill.

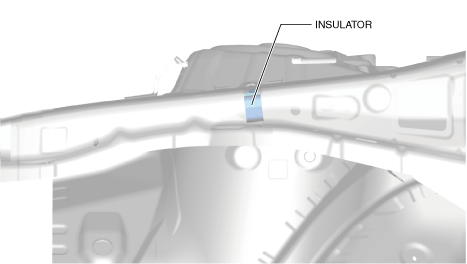

am6zzb00000885

1.  Drill the spot welds in area A (LH: 30 locations, RH: 31 locations) shown in the figure.

2.  Drill the spot welds in the 6 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 6 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

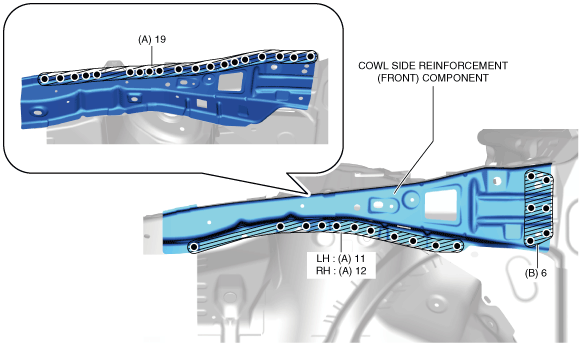

am6zzb00000886

3.  Remove the cowl side reinforcement front component.
