WIPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008968800

Symbol Mark

am6zzb00000337

Removal Procedure

1.  Drill the spot welds in the 4 locations in area A shown in the figure.

2.  Drill the spot welds in the 7 locations in area B shown in the figure.

Note

•  When drilling the spot welds in the 7 locations in area B shown in the figure, do not drill through-holes in consideration of the workability when installing.

3.  Drill the spot welds in the 6 locations in area C shown in the figure.

4.  Drill the spot welds in the 2 locations in area D shown in the figure.

Note

•  When drilling the spot welds in the 2 locations in area D shown in the figure, do not drill through-holes in consideration of the workability when installing.

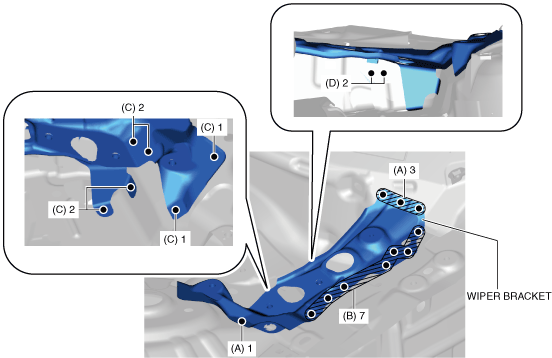

am6zzb00000882

5.  Remove the wiper bracket.
