BODY SEALING [WATER-PROOF AND RUST PREVENTIVE]

id098009739800

• Sealant is applied to the parts where the panels meet and to the hemmed parts of the door panel and bonnet panel to provide water proofing and rust proofing.

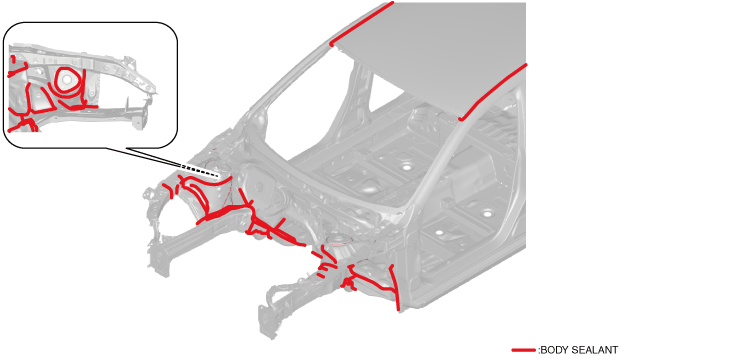

Front Body

am6zzb00000815

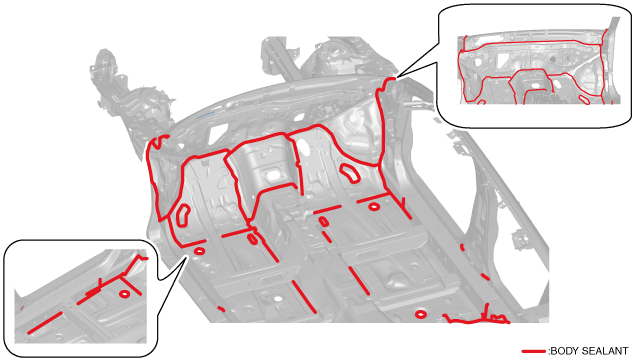

Room (Front Side)

am6zzb00000816

Room (Rear Side)

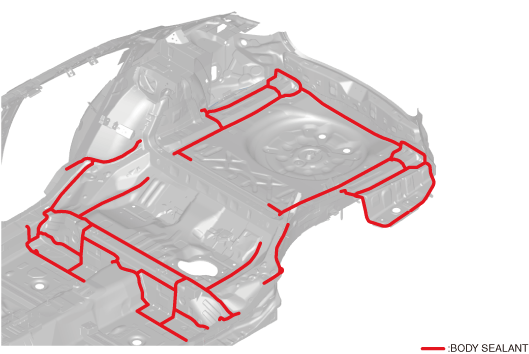

With out SCR (Selected Catalytic Reduction) System

am6zzb00000818

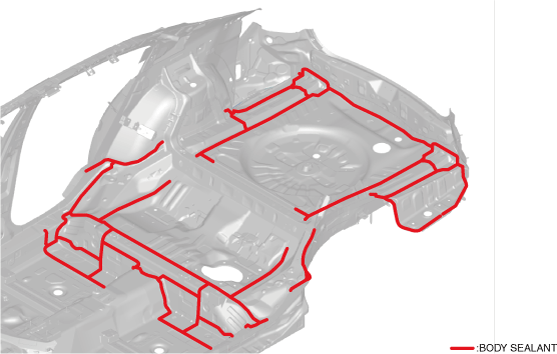

With SCR System

am6zzb00000826

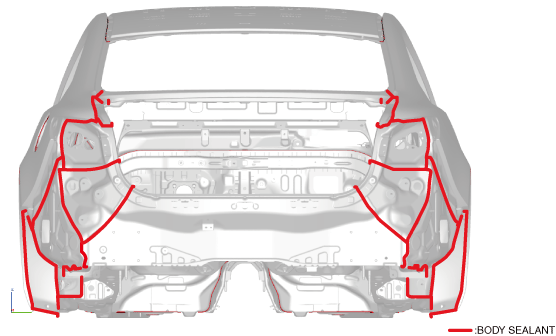

Rear Body

4SD

am6zzb00000827

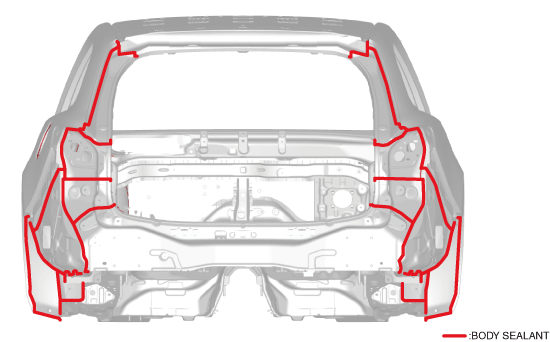

WGN

am6zzb00000819

Under Body

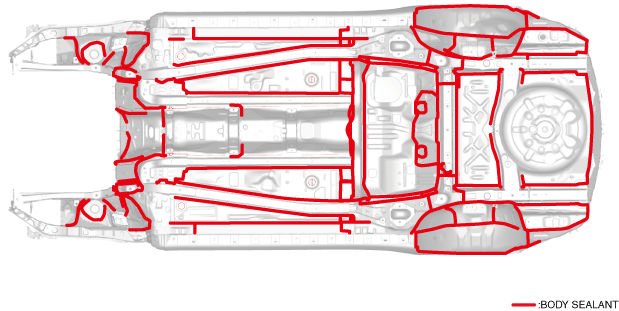

With out SCR System

am6zzb00000820

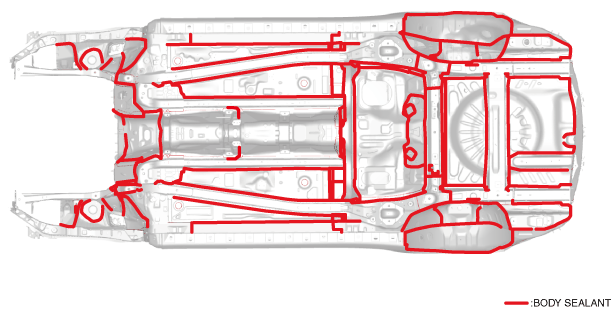

With SCR System

am6zzb00000821

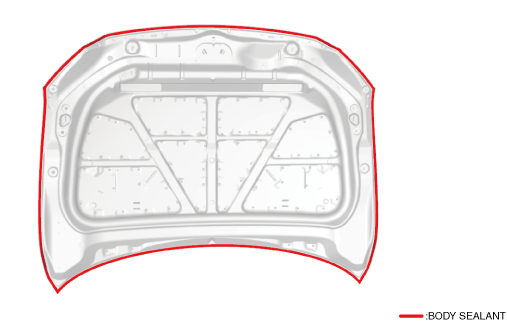

Bonnet

am6zzb00000822

Door

am6zzb00000823

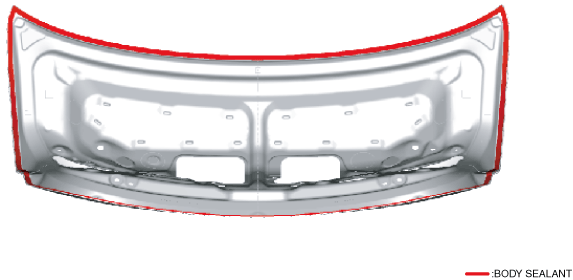

Trunk Lid

am6zzb00000824

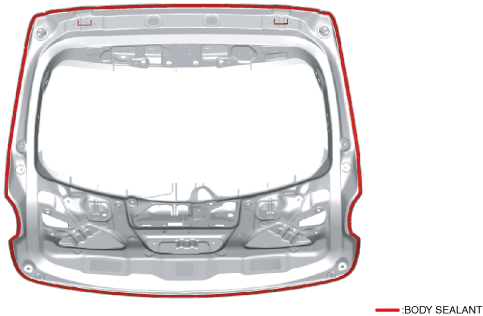

Lift Gate

am6zzb00000825
