DAMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]

id098009745700

• After repairing the body, attach the dumping sheet to the location shown in the figure for noise insulation.

4SD

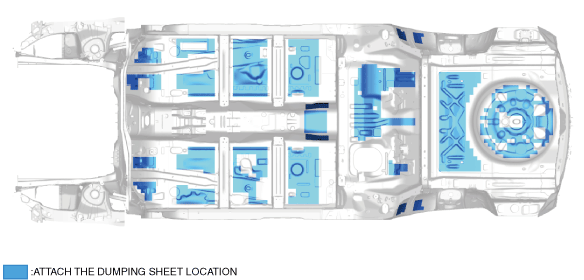

European (L.H.D.), General (L.H.D.) specs. (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

am6zzb00000796

European (L.H.D.) specs. (SKYACTIV-D 2.2)

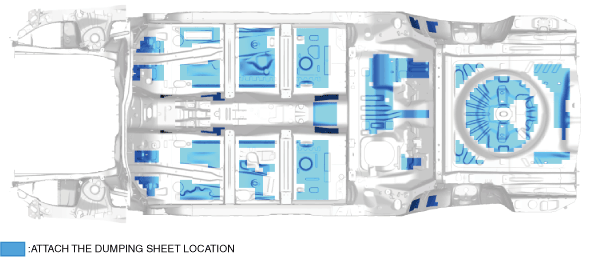

am6zzb00000797

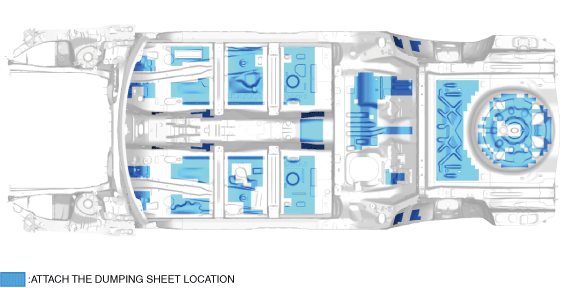

General (L.H.D.) specs. (SKYACTIV-D 2.2)

am6zzb00000798

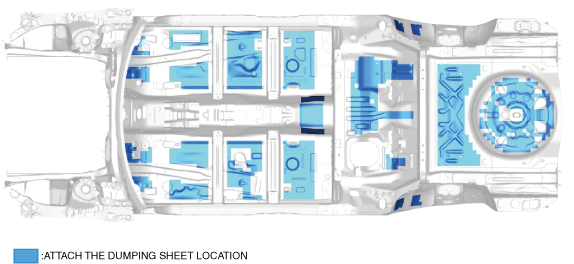

Australian, European (U.K.), General (R.H.D.) specs. (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

am6zzb00000799

Australian, General (R.H.D.) specs. (SKYACTIV-D 2.2)

am6zzb00000843

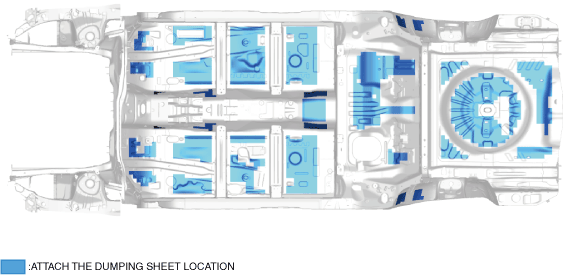

European (U.K.) specs. (SKYACTIV-D 2.2)

am6zzb00000801

WGN

2WD

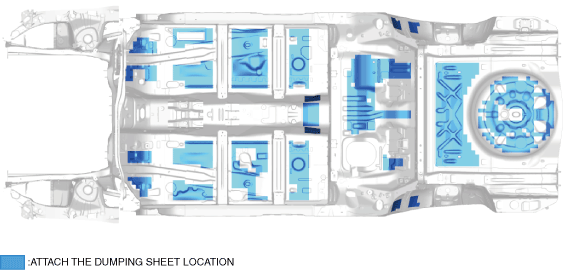

European (L.H.D.), General (L.H.D.) specs. (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

am6zzb00000802

European (L.H.D.) specs. (SKYACTIV-D 2.2)

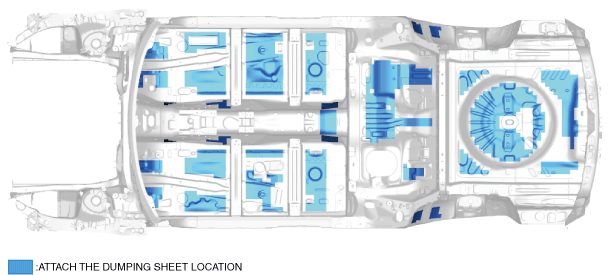

am6zzb00000803

General (L.H.D.) specs. (SKYACTIV-D 2.2)

am6zzb00000804

Australian, European (U.K.), General (R.H.D.) specs. (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

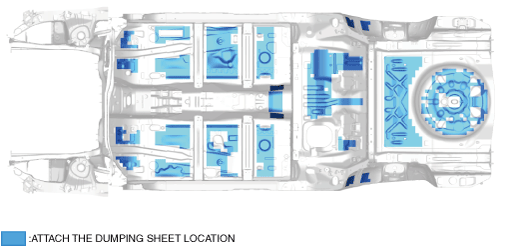

am6zzb00000805

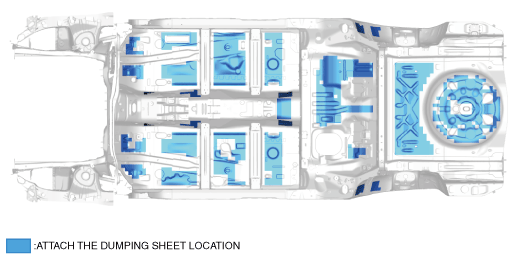

Australian specs. (SKYACTIV-D 2.2)

am6zzb00000806

European (U.K.) specs. (SKYACTIV-D 2.2)

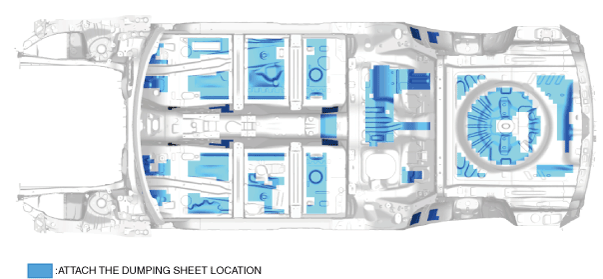

am6zzb00000844

4WD

European (L.H.D.) specs. (SKYACTIV-D 2.2)

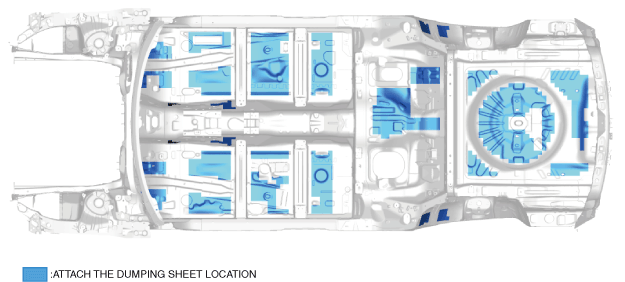

am6zzb00000845

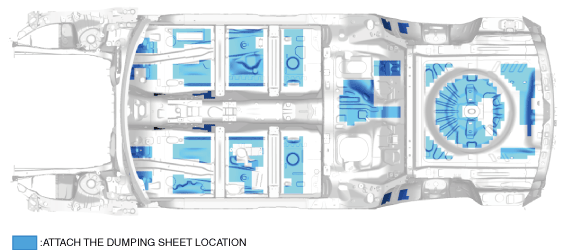

General (L.H.D.) specs. (SKYACTIV-D 2.2)

am6zzb00000809

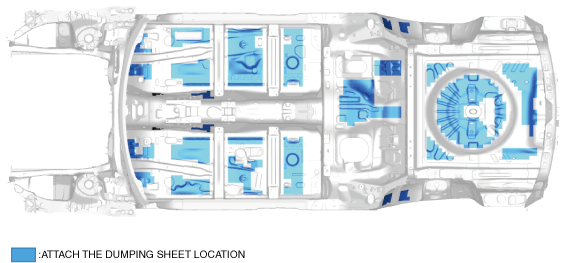

European (U.K.) specs. (SKYACTIV-D 2.2)

am6zzb00000846
