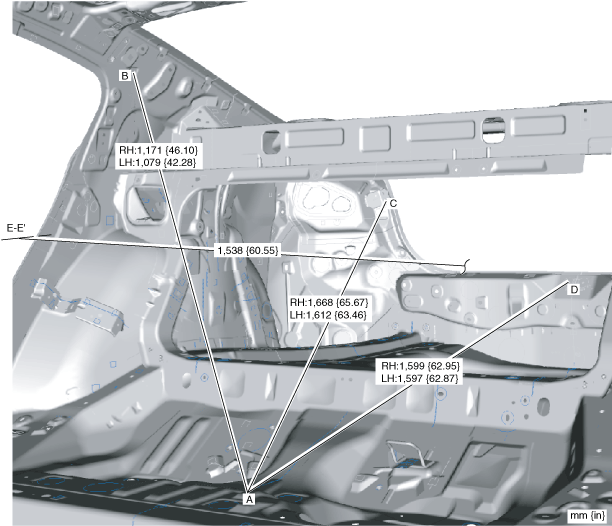

ROOM DIMENSIONS (3) [DIMENSIONS]
id098010990700
4SD
am6zzb00000510
|
aatjjb00000304
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Center floor panel datum hole
|
φ6 {0.2}
|
|
B
|
C pillar trim installation square hole
|
11X13
{0.43 X 0.51}
|
|
C
|
Trunk side trim installation hole
|
φ6 {0.2}
|
|
D
|
Trunk lid striker installation nut
|
M6
|
|
E
|
Rear door striker installation hole
|
φ13 {0.51}
|
WGN
2WD
am6zzb00000511
|
aatjjb00000305
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Center floor panel datum hole
|
φ6 {0.2}
|
|
B
|
D pillar trim installation hole
|
φ7 {0.3}
|
|
C
|
Trunk end trim installation hole
|
φ8.6 {0.34}
|
|
D
|
liftgate striker installation nut
|
M8
|
|
E
|
Rear door striker installation hole
|
φ13 {0.51}
|
4WD

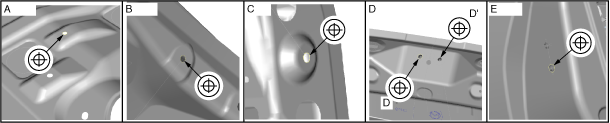

am6zzb00000609
|
aatjjb00000305
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Center floor panel datum hole
|
φ7 {0.3}
|
|
B
|
D pillar trim installation hole
|
φ7 {0.3}
|
|
C
|
Trunk end trim installation hole
|
φ8.6 {0.34}
|
|
D
|
liftgate striker installation nut
|
M8
|
|
E
|
Rear door striker installation hole
|
φ13 {0.51}
|
