CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300


Front View

am6zzb00000780
am6zzb00000781

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})
A
1
2.8 {0.11}
5.3 {0.209}
1.7 {0.067}
2.0 {0.079}
2
0
2.0 {0.079}
-2.0 {-0.079}
-
B
3
1.6 {0.065}
3.1 {0.122}
0.1 {0.005}
2.0 {0.079}
C
4
2.3 {0.091}
3.6 {0.14}
1.0 {0.039}
-
D
5
0.5 {0.020}
1.3 {0.051}
0.5 {0.020}
-
6
0.5 {0.020}
1.2 {0.047}
-0.2 {-0.008}
-
E
7
0
1.0 {0.039}
-1.0 {-0.039}
-
F
8
3.4 {0.134}
4.4 {0.173}
2.4 {0.095}
1.2 {0.047}
9
0
1.0 {0.039}
-1.0 {-0.039}
-
G
10
0
1.0 {0.039}
-1.0 {-0.039}
-
11
0
1.0 {0.039}
-1.0 {-0.039}
-
12
0
1.2 {0.047}
-1.2 {-0.047}
-
13
0
1.5 {0.059}
-1.5 {-0.059}
-
14
2.3 {0.091}
3.5 {0.138}
1.1 {0.043}
1.2 {0.047}
H
15
3.5 {0.14}
4.5 {0.18}
2.5 {0.098}
1.0 {0.039}
16
0
1.0 {0.039}
-1.0 {-0.039}
-
I
17
3.5 {0.14}
4.5 {0.18}
2.5 {0.098}
1.0 {0.039}
18
0
1.0 {0.039}
-1.0 {-0.039}
-
J
19
5.0 {0.20}
6.9 {0.27}
3.1 {0.12}
1.9 {0.075}
20
0.3 {0.012}
2.3 {0.091}
-1.7 {-0.067}
-

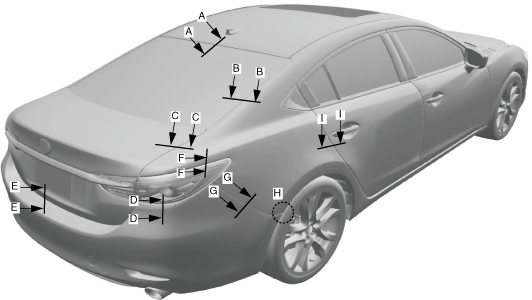

Rear View

4SD

am6zzb00000782
am6zzb00000858

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})
A
1
4.0 {0.16}
5.7 {0.22}
2.3 {0.091}
-
2
0
0.5 {0.02}
0
-
3
2.0 {0.079}
3.8 {0.15}
0.2 {0.008}
-
B
4
4.0 {0.16}
6.2 {0.24}
1.8 {0.071}
-
5
0
0.5 {0.02}
0
-
C
6
3.5 {0.14}
4.5 {0.18}
2.5 {0.098}
1.0 {0.039}
7
-0.8
{-0.031}
0.2 {0.008}
-1.8
{-0.031}
-
D
8
1.8 {0.071}
3.3 {0.13}
0.3 {0.01}
-
E
9
6.0 {0.24}
8.0 {0.31}
4.0 {0.16}
2.1 {0.083}
F
10
1.8 {0.071}
3.0 {0.12}
0.6 {0.02}
-
G
11
0.5 {0.02}
1.3 {0.051}
0.5 {0.02}
-
12
0.5 {0.02}
1.2 {0.047}
-0.2 {-0.008}
-
H
13
0
2.0 {0.079}
-2.0 {-0.079}
-
I
14
3.5 {0.14}
4.5 {0.18}
2.5 {0.098}
1.0 {0.039}
15
0
1.0 {0.039}
-1.0 {-0.039}
-

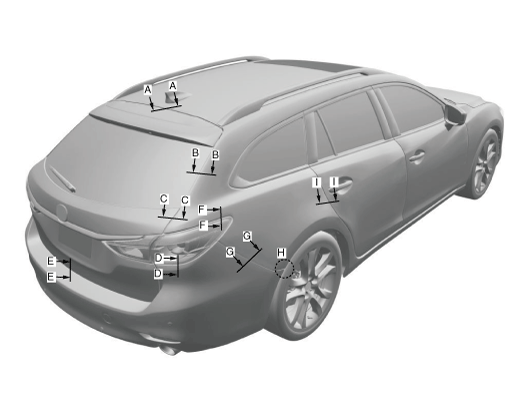

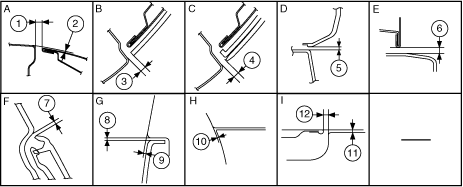

WGN

am6zzb00000783
am6zzb00000857

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Parallelism (mm {in})
A
1
6.5 {0.26}
7.5 {0.30}
5.5 {0.22}
1.2 {0.047}
2
-0.9 {-0.035}
0.1
{0.004}
-1.9 {-0.075}
-
B
3
4.5 {0.18}
6.8 {0.27}
2.2 {0.087}
2.4 {0.094}
C
4
4.5 {0.18}
6.5 {0.26}
2.5 {0.098}
2.0 {0.079}
D
5
1.8 {0.071}
3.3 {0.13}
0.3 {0.01}
1.1 {0.043}
E
6
6.0 {0.24}
8.0 {0.31}
4.0 {0.16}
2.1 {0.083}
F
7
1.8 {0.071}
3.0 {0.12}
0.6 {0.024}
-
G
8
0.5 {0.02}
1.3 {0.051}
0.5 {0.02}
-
9
0.4 {0.016}
1.1 {0.043}
-0.3 {-0.012}
-
H
10
0
2.0 {0.079}
-2.0
{-0.079}
-
I
11
3.5 {0.14}
4.5 {0.18}
2.5 {0.098}
1.0 {0.039}
12
0
1.0 {0.039}
-1.0 {-0.039}
-
