DETERMINING OPEN CIRCUIT LOCATION (HS-CAN) [SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (L.H.D.)]

id100238000400

Caution

•  Perform the following malfunction diagnosis only when it is diagnosed with a open circuit by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (L.H.D.)].)

•  If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.

•  When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1.  Verify the CAN system-related module DTCs and the failed module on the M-MDS screen.

2.  Apply the communication error DTC and the failed module to DTC output pattern and malfunctioning location, and select the possible cause for the diagnostic result and the reference for the inspection item. (See DTC Output Pattern And Malfunctioning Location.)

Note

•  The open circuit location can be determined by the DTC indicated in the DTC output pattern and malfunctioning location chart. DTCs not listed in the chart are not used for the determination of the open circuit location. (See DTC Output Pattern And Malfunctioning Location.)

3.  Inspect the possible cause and inspection item of the applicable malfunctioning part.

4.  After repairs, return to CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW, and verify that the repairs have been completed. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (L.H.D.)].)

DTC Output Pattern And Malfunctioning Location

A

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  PCM power supply voltage or body ground malfunction

•  Open circuit in wiring harness between PCM and connector C-32

•  Connector C-32 malfunction

•  PCM malfunction

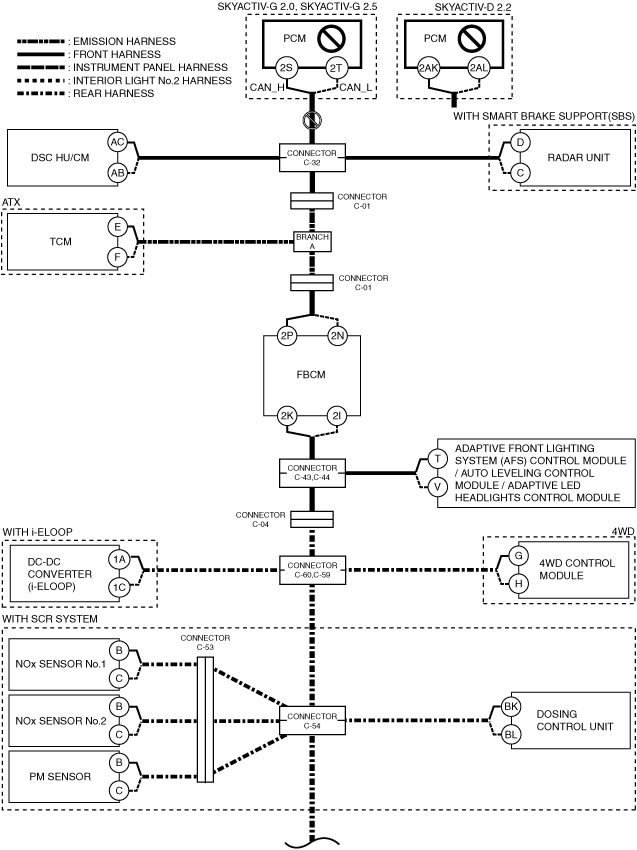

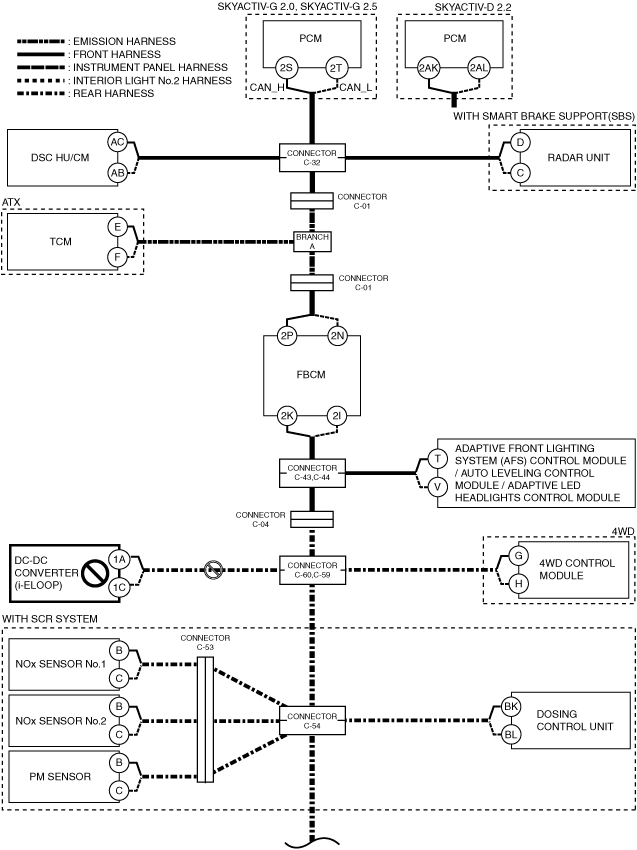

System wiring diagram

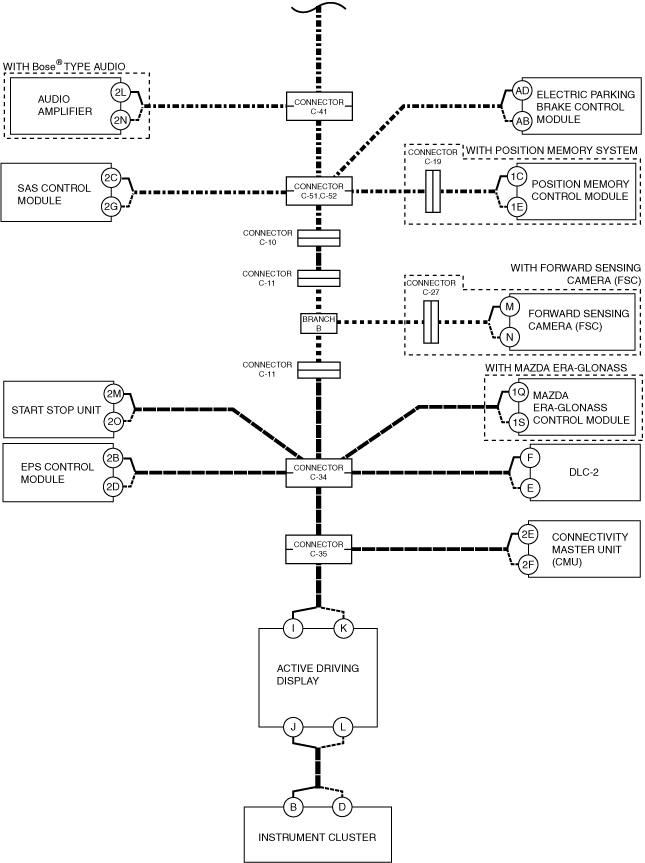

am6zzw00017271

am6zzw00017272

Inspection item

•  PCM power supply voltage-related wiring harness and fuse

•  PCM body ground related wiring harness

•  PCM connector

•  Connector C-32

•  Wiring harness between PCM terminal 2AK and connector C-32 (SKYACTIV-D 2.2)

•  Wiring harness between PCM terminal 2AL and connector C-32 (SKYACTIV-D 2.2)

•  Wiring harness between PCM terminal 2S and connector C-32 (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

•  Wiring harness between PCM terminal 2T and connector C-32 (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

•  PCM

B

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  DSC HU/CM power supply voltage or body ground malfunction

•  Open circuit in wiring harness between DSC HU/CM and connector C-32

•  Connector C-32 malfunction

•  DSC HU/CM malfunction

System wiring diagram

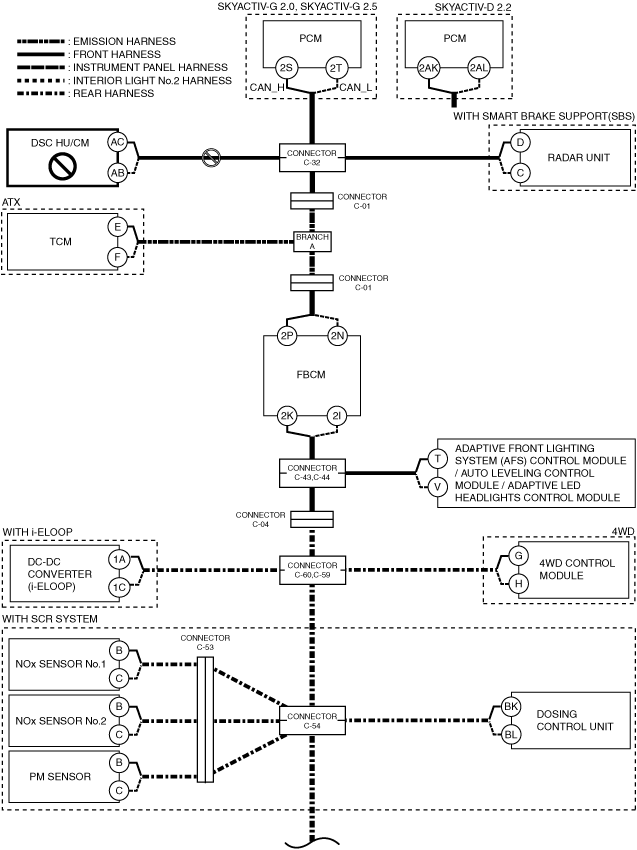

am6zzw00017273

am6zzw00017272

Inspection item

•  DSC HU/CM power supply voltage-related wiring harness and fuse

•  DSC HU/CM body ground related wiring harness

•  DSC HU/CM connector

•  Connector C-32

•  Wiring harness between DSC HU/CM terminal AC and connector C-32

•  Wiring harness between DSC HU/CM terminal AB and connector C-32

•  DSC HU/CM

C

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Radar unit power supply voltage or body ground malfunction

•  Open circuit in wiring harness between radar unit and connector C-32

•  Connector C-32 malfunction

•  Radar unit malfunction

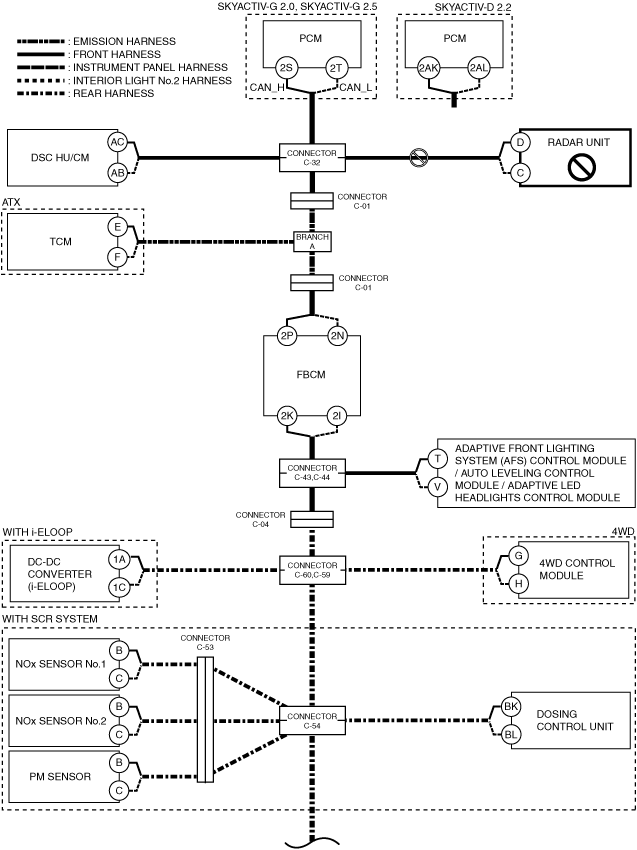

System wiring diagram

am6zzw00017274

am6zzw00017272

Inspection item

•  Radar unit power supply voltage-related wiring harness and fuse

•  Radar unit body ground related wiring harness

•  Radar unit connector

•  Connector C-32

•  Wiring harness between radar unit terminal D and connector C-32

•  Wiring harness between radar unit terminal C and connector C-32

•  Radar unit

D

ATX

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between connector C-32 and connector C-01

•  Open circuit in wiring harness between connector C-01 and branch A

•  Connector C-32 malfunction

•  Connector C-01 malfunction

System wiring diagram

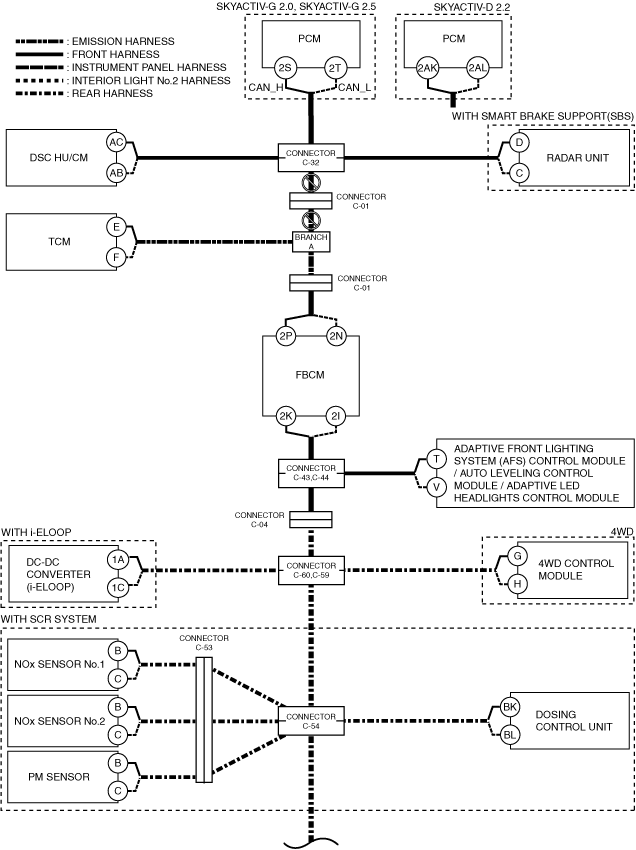

am6zzw00017275

am6zzw00017272

Inspection item

•  Connector C-32

•  Connector C-01

•  Wiring harness between connector C-32 and connector C-01

•  Wiring harness between connector C-01 and branch A

MTX

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between connector C-32 and connector C-01

•  Open circuit in wiring harness between connector C-01 and connector C-01

•  Open circuit in wiring harness between connector C-01 and front body control module (FBCM)

•  Connector C-32 malfunction

•  Connector C-01 malfunction

•  CAN circuit in front body control module (FBCM) malfunction

System wiring diagram

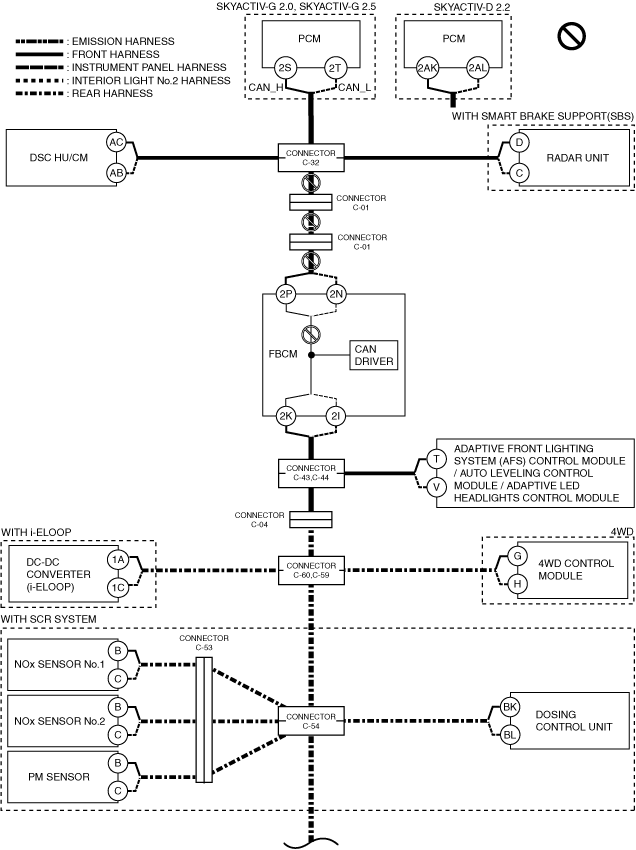

am6zzw00017276

am6zzw00017272

Inspection item

•  Front body control module (FBCM) connector

•  Connector C-32

•  Connector C-01

•  Wiring harness between connector C-32 and connector C-01

•  Wiring harness between connector C-01 and connector C-01

•  Wiring harness between front body control module (FBCM) terminal 2P and connector C-01

•  Wiring harness between front body control module (FBCM) terminal 2N and connector C-01

•  Front body control module (FBCM)

―  Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

―  Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

E

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  TCM power supply voltage or body ground malfunction

•  Open circuit in wiring harness between TCM and branch A

•  TCM malfunction

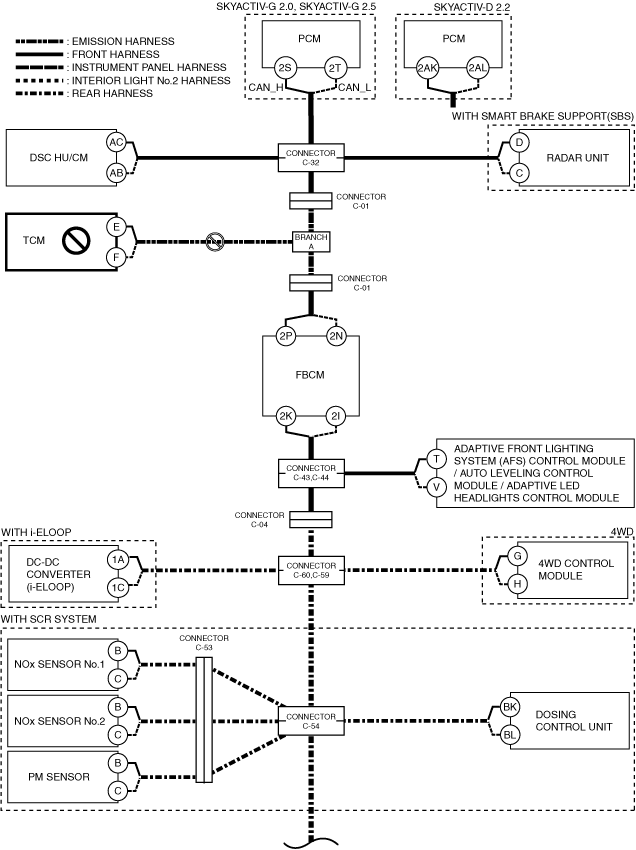

System wiring diagram

am6zzw00017277

am6zzw00017272

Inspection item

•  TCM power supply voltage-related wiring harness and fuse

•  TCM body ground related wiring harness

•  TCM connector

•  Wiring harness between TCM terminal E and branch A

•  Wiring harness between TCM terminal F and branch A

•  TCM

F

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between branch A and connector C-01

•  Open circuit in wiring harness between front body control module (FBCM) and connector C-01

•  Connector C-01 malfunction

•  CAN circuit in front body control module (FBCM) malfunction

System wiring diagram

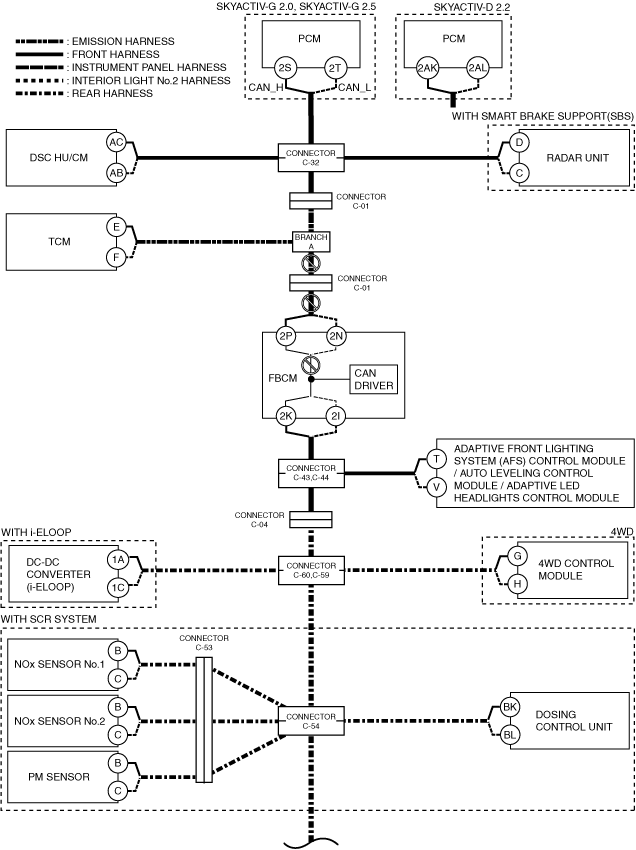

am6zzw00017278

am6zzw00017272

Inspection item

•  Front body control module (FBCM) connector

•  Connector C-01

•  Wiring harness between branch A and connector C-01

•  Wiring harness between front body control module (FBCM) terminal 2P and connector C-01

•  Wiring harness between front body control module (FBCM) terminal 2N and connector C-01

•  Front body control module (FBCM)

―  Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

―  Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

G

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Front body control module (FBCM) power supply voltage or body ground malfunction

•  Front body control module (FBCM) malfunction

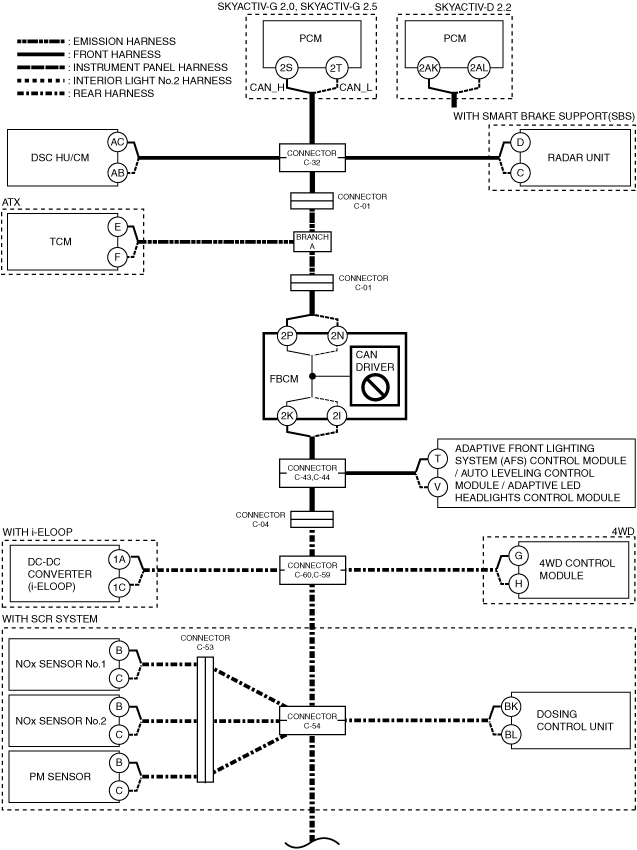

System wiring diagram

am6zzw00017279

am6zzw00017272

Inspection item

•  Front body control module (FBCM) power supply voltage-related wiring harness and fuse

•  Front body control module (FBCM) body ground related wiring harness

•  Front body control module (FBCM)

H

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between front body control module (FBCM) and connectors C-43,C-44

•  Connectors C-43,C-44 malfunction

•  CAN circuit in front body control module (FBCM) malfunction

System wiring diagram

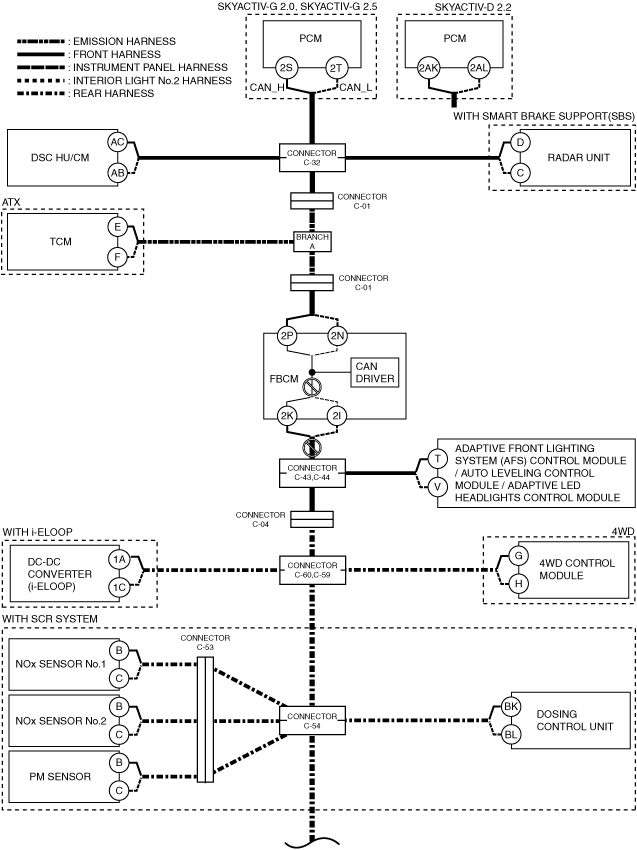

am6zzw00017280

am6zzw00017272

Inspection item

•  Front body control module (FBCM) connector

•  Connectors C-43,C-44

•  Wiring harness between front body control module (FBCM) terminal 2K and connector C-43

•  Wiring harness between front body control module (FBCM) terminal 2I and connector C-44

•  Front body control module (FBCM)

―  Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

―  Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

I

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module power supply voltage or body ground malfunction

•  Open circuit in wiring harness between adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module connectors C-43,C-44

•  Connectors C-43,C-44 malfunction

•  Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module malfunction

System wiring diagram

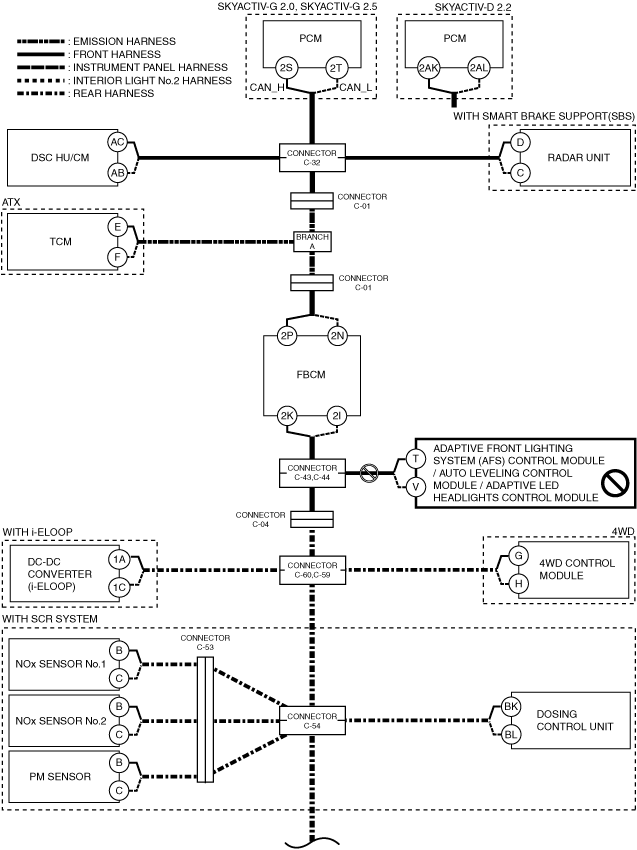

am6zzw00017281

am6zzw00017272

Inspection item

•  Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module power supply voltage-related wiring harness and fuse

•  Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module body ground related wiring harness

•  Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module connector

•  Connectors C-43,C-44

•  Wiring harness between adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module terminal T and connector C-43

•  Wiring harness between adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module terminal V and connector C-44

•  Adaptive front lighting system (AFS) control module / auto leveling control module / adaptive LED headlights control module

J

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between connectors C-43,C-44 and connector C-04

•  Open circuit in wiring harness between connector C-04 and connectors C-60,C-59

•  Connectors C-43,C-44 malfunction

•  Connector C-04 malfunction

•  Connectors C-60,C-59 malfunction

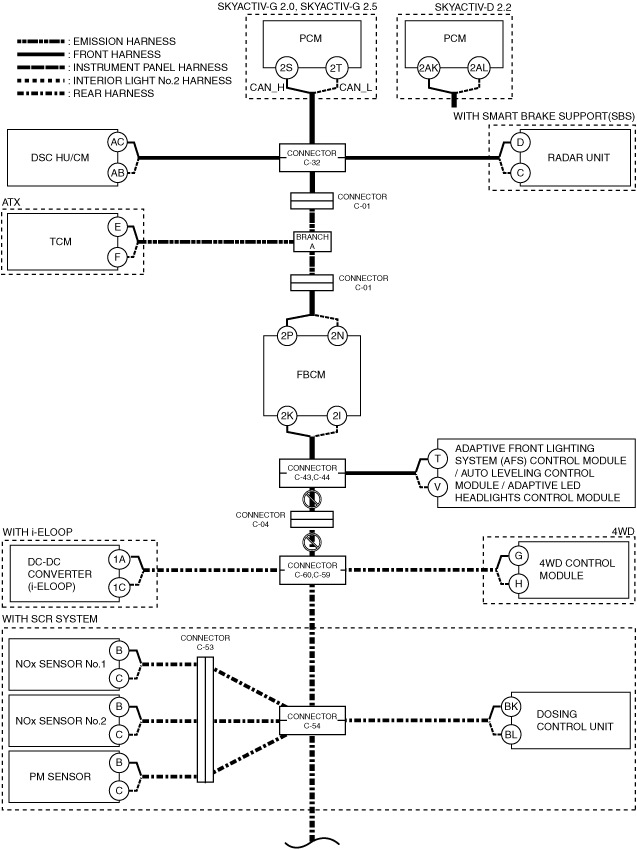

System wiring diagram

am6zzw00017282

am6zzw00017272

Inspection item

•  Wiring harness between connectors C-43,C-44 and connector C-04

•  Wiring harness between connector C-04 and connectors C-60,C-59

•  Connectors C-43, C-44

•  Connector C-04

•  Connectors C-60,C-59

K

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  DC-DC converter (i-ELOOP) power supply voltage or body ground malfunction

•  Open circuit in wiring harness between DC-DC converter (i-ELOOP) and connectors C-60,C-59

•  Connectors C-60,C-59 malfunction

•  DC-DC converter (i-ELOOP) malfunction

System wiring diagram

am6zzw00017283

am6zzw00017272

Inspection item

•  DC-DC converter (i-ELOOP) power supply voltage-related wiring harness and fuse

•  DC-DC converter (i-ELOOP) body ground related wiring harness

•  DC-DC converter (i-ELOOP) connector

•  Connectors C-60,C-59

•  Wiring harness between DC-DC converter (i-ELOOP) terminal 1A and connector C-60

•  Wiring harness between DC-DC converter (i-ELOOP) terminal 1C and connector C-59

•  DC-DC converter (i-ELOOP)

L

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  4WD control module power supply voltage or body ground malfunction

•  Open circuit in wiring harness between 4WD control module and connectors C-60,C-59

•  Connectors C-60,C-59 malfunction

•  4WD control module malfunction

System wiring diagram

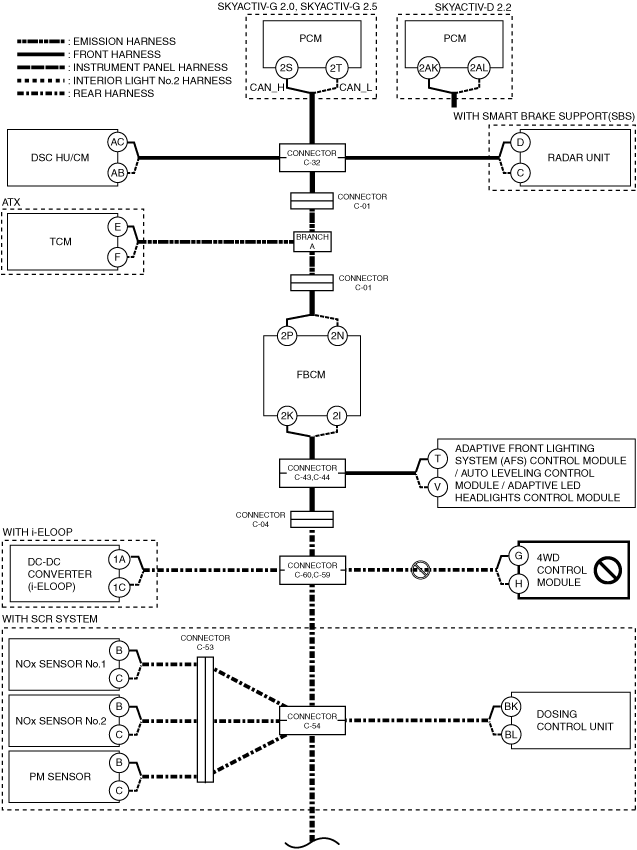

am6zzw00017284

am6zzw00017272

Inspection item

•  4WD control module power supply voltage-related wiring harness and fuse

•  4WD control module body ground related wiring harness

•  4WD control module connector

•  Connectors C-60,C-59

•  Wiring harness between 4WD control module terminal G and connector C-60

•  Wiring harness between 4WD control module terminal H and connector C-59

•  4WD control module

M

With SCR system

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between connectors C-60,C-59 and connector C-54

•  Connectors C-60,C-59 malfunction

•  Connector C-54 malfunction

System wiring diagram

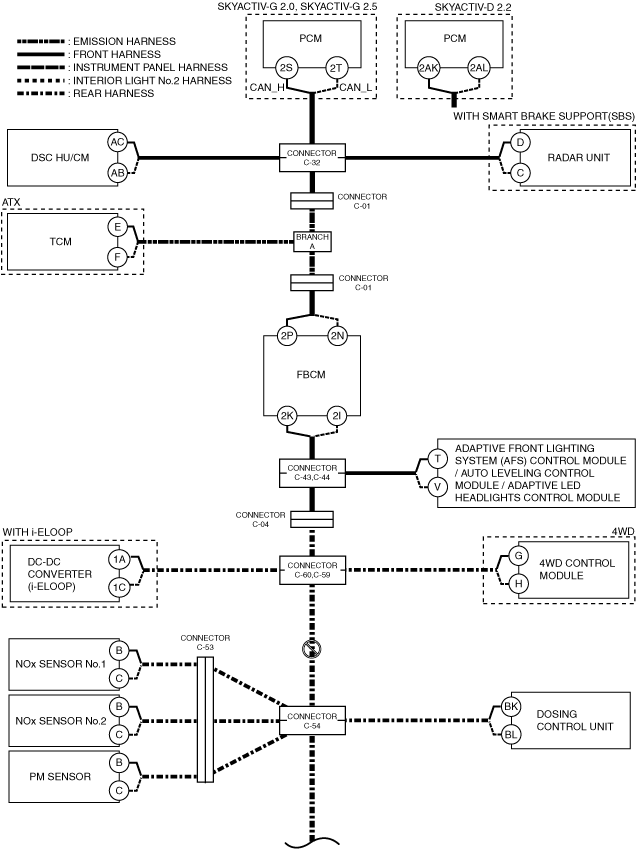

am6zzw00017285

am6zzw00017272

Inspection item

•  Wiring harness between connectors C-60,C-59 and connector C-54

•  Connectors C-60,C-59

•  Connector C-54

Without SCR system

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between connectors C-60,C-59 and connector C-41

•  Connectors C-60,C-59 malfunction

•  Connector C-41 malfunction

System wiring diagram

am6zzw00017286

am6zzw00017272

Inspection item

•  Wiring harness between connectors C-60,C-59 and connector C-41

•  Connectors C-60,C-59

•  Connector C-41

N

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  NOx sensor No.1 power supply voltage or body ground malfunction

•  Open circuit in wiring harness between NOx sensor No.1 and connector C-53

•  Open circuit in wiring harness between connector C-53 and connector C-54

•  Connector C-53 malfunction

•  Connector C-54 malfunction

•  NOx sensor No.1 malfunction

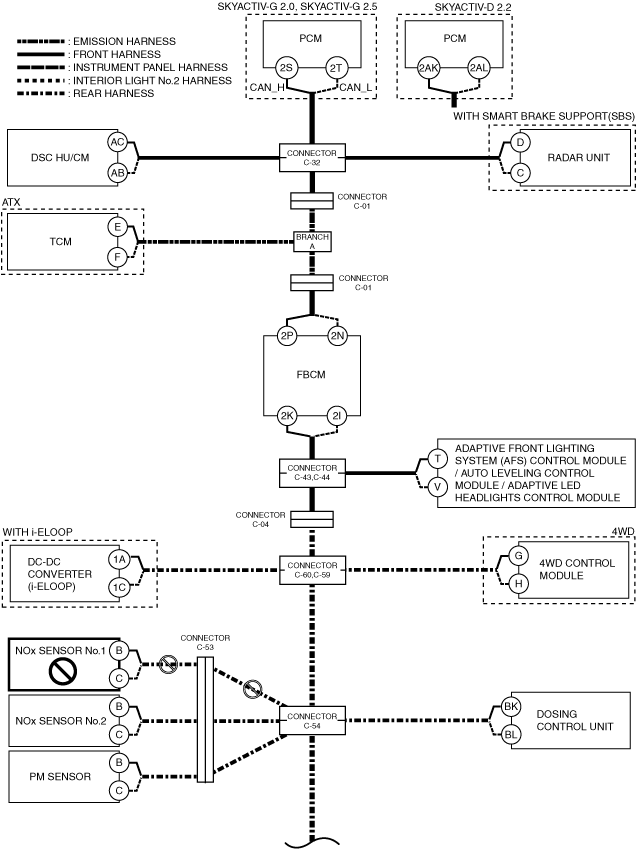

System wiring diagram

am6zzw00017287

am6zzw00017272

Inspection item

•  NOx sensor No.1 power supply voltage-related wiring harness and fuse

•  NOx sensor No.1 body ground related wiring harness

•  NOx sensor No.1 connector

•  Connector C-53

•  Connector C-54

•  Wiring harness between NOx sensor No.1 terminal B and connector C-53

•  Wiring harness between NOx sensor No.1 terminal C and connector C-53

•  Wiring harness between connector C-53 and connector C-54

•  NOx sensor No.1

O

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Dosing control unit power supply voltage or body ground malfunction

•  Open circuit in wiring harness between dosing control unit and connector C-54

•  Connector C-54 malfunction

•  Dosing control unit malfunction

System wiring diagram

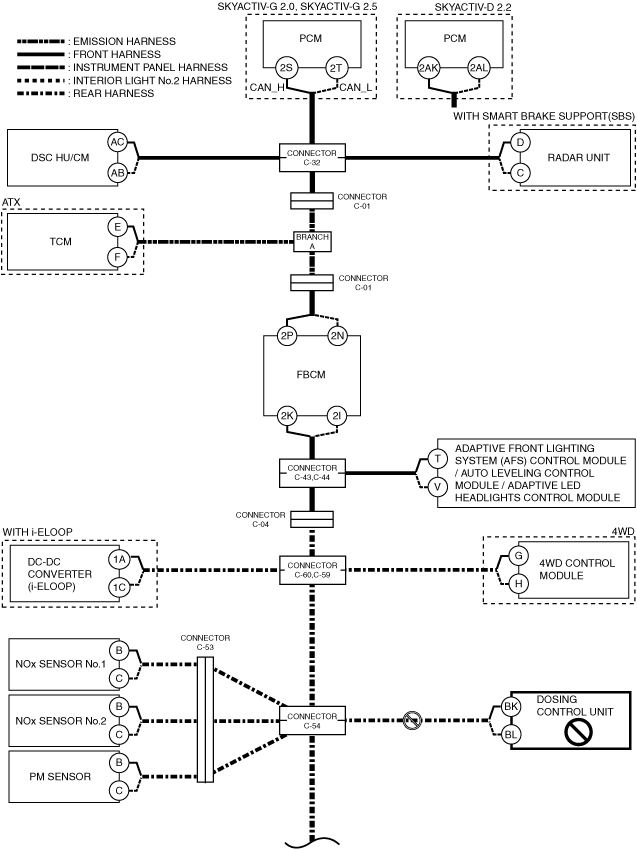

am6zzw00017288

am6zzw00017272

Inspection item

•  Dosing control unit power supply voltage-related wiring harness and fuse

•  Dosing control unit body ground related wiring harness

•  Dosing control unit connector

•  Connector C-54

•  Wiring harness between dosing control unit terminal BK and connector C-54

•  Wiring harness between dosing control unit terminal BL and connector C-54

•  Dosing control unit

P

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between connector C-54 and connector C-41

•  Connector C-54 malfunction

•  Connector C-41 malfunction

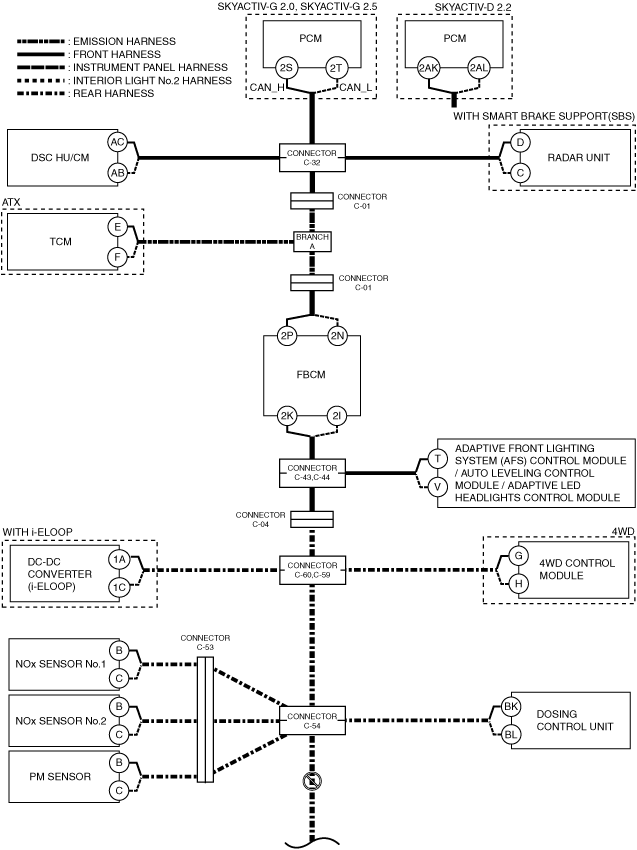

System wiring diagram

am6zzw00017289

am6zzw00017272

Inspection item

•  Connector C-54

•  Connector C-41

•  Wiring harness between connector C-54 and connector C-41

Q

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Audio amplifier power supply voltage or body ground malfunction

•  Open circuit in wiring harness between audio amplifier and connector C-41

•  Connector C-41 malfunction

•  Audio amplifier malfunction

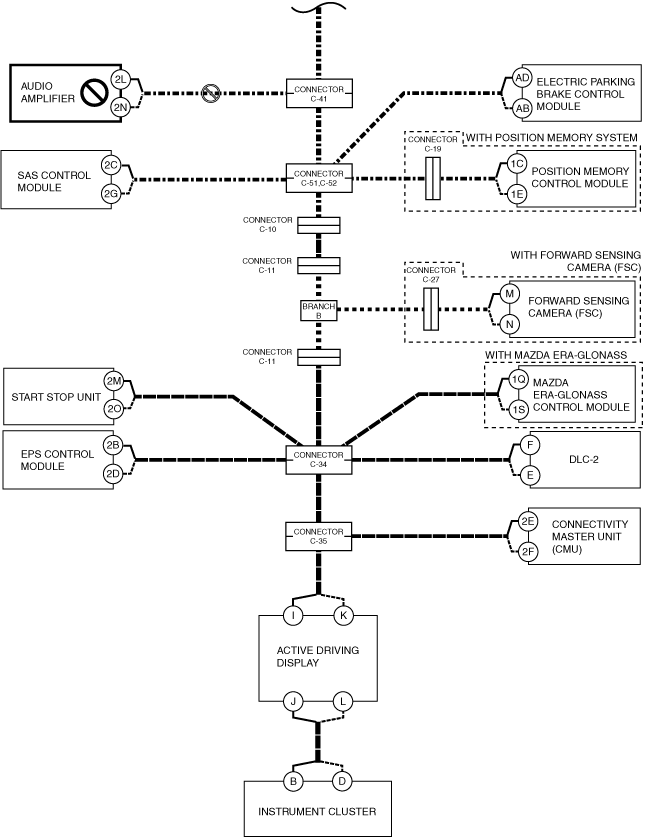

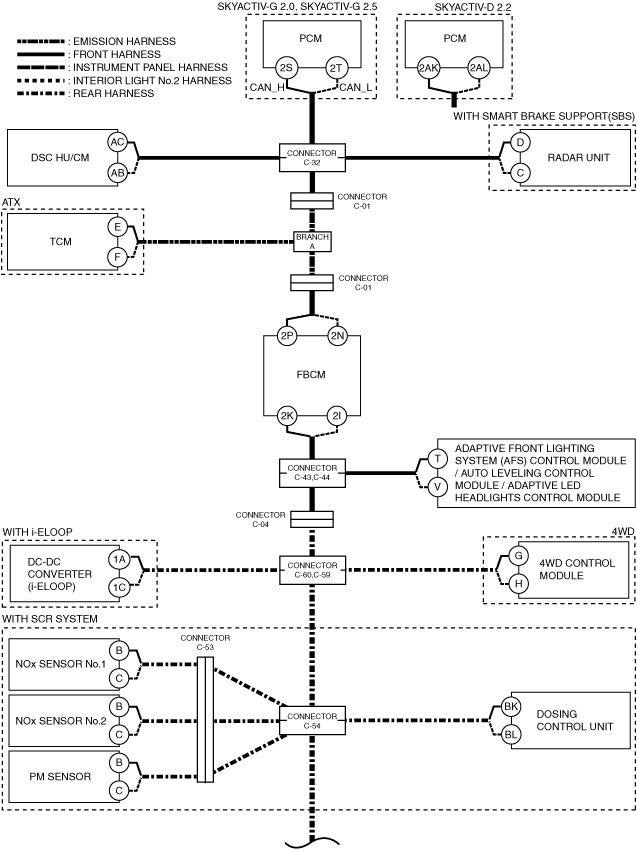

System wiring diagram

am6zzw00017290

am6zzw00017559

Inspection item

•  Audio amplifier power supply voltage-related wiring harness and fuse

•  Audio amplifier body ground related wiring harness

•  Audio amplifier connector

•  Connector C-41

•  Wiring harness between audio amplifier terminal 2L and connector C-41

•  Wiring harness between audio amplifier terminal 2N and connector C-41

•  Audio amplifier

R

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between connector C-41 and connectors C-51,C-52

•  Connector C-41 malfunction

•  Connectors C-51,C-52 malfunction

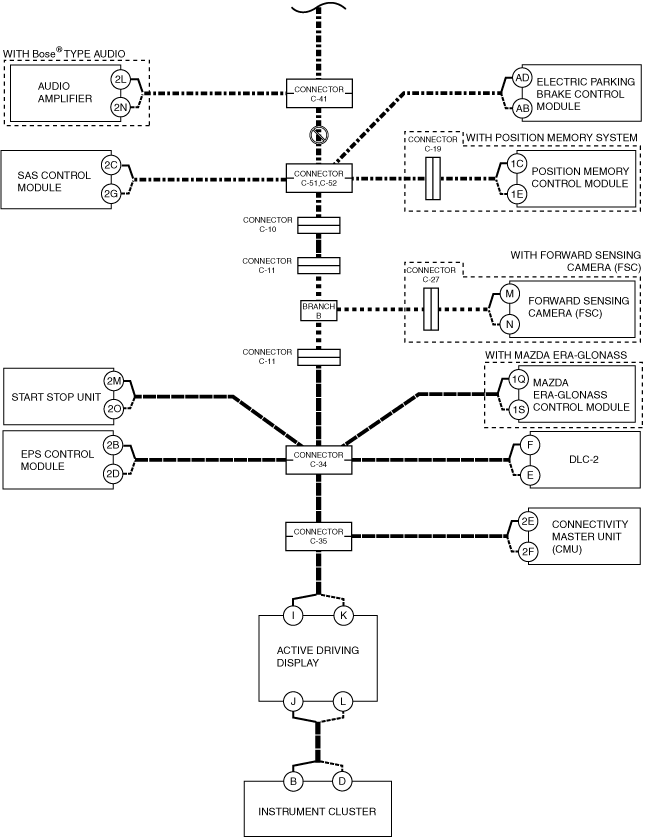

System wiring diagram

am6zzw00017290

am6zzw00017560

Inspection item

•  Wiring harness between connector C-41 and connectors C-51,C-52

•  Connector C-41

•  Connectors C-51,C-52

S

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  SAS control module power supply voltage or body ground malfunction

•  Open circuit in wiring harness between SAS control module and connectors C-51,C-52

•  Connectors C-51,C-52 malfunction

•  SAS control module malfunction

System wiring diagram

am6zzw00017290

am6zzw00017561

Inspection item

Warning

•   Handling the component parts of the SRS air bag system improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag system components of the SRS air bag system.

(See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

•  SAS control module power supply voltage-related wiring harness and fuse

•  SAS control module body ground related wiring harness

•  SAS control module connector

•  Connectors C-51,C-52

•  Wiring harness between SAS control module terminal 2C and connector C-51

•  Wiring harness between SAS control module terminal 2G and connector C-52

•  SAS control module

T

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Electric parking brake control module power supply voltage or body ground malfunction

•  Open circuit in wiring harness between electric parking brake control module and connectors C-51,C-52

•  Connectors C-51,C-52 malfunction

•  Electric parking brake control module malfunction

System wiring diagram

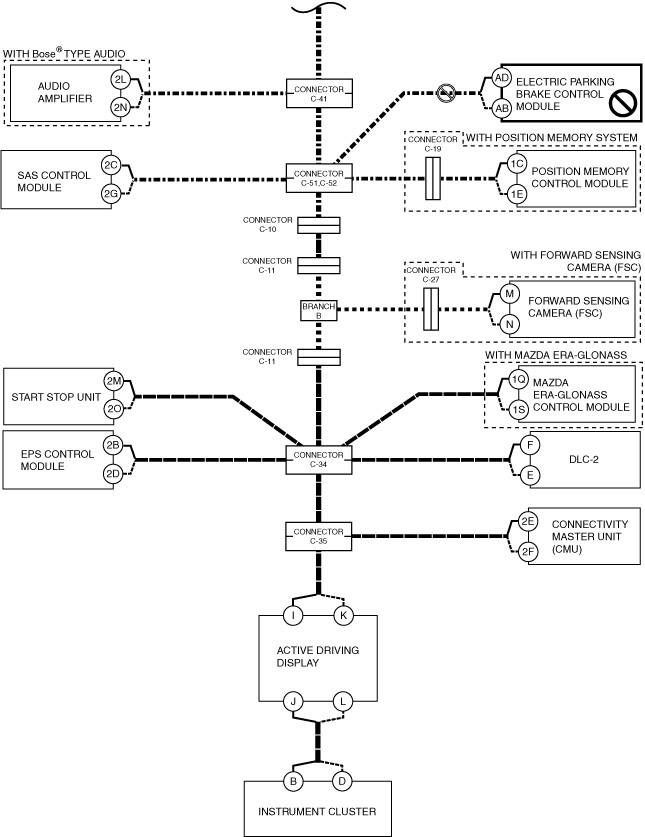

am6zzw00017290

am6zzw00017562

Inspection item

•  Electric parking brake control module power supply voltage-related wiring harness and fuse

•  Electric parking brake control module body ground related wiring harness

•  Electric parking brake control module connector

•  Connectors C-51,C-52

•  Wiring harness between electric parking brake control module terminal AD and connector C-51

•  Wiring harness between electric parking brake control module terminal AB and connector C-52

•  Electric parking brake control module

U

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Position memory control module power supply voltage or body ground malfunction

•  Open circuit in wiring harness between position memory control module and connector C-19

•  Open circuit in wiring harness between connector C-19 and connectors C-51,C-52

•  Connector C-19 malfunction

•  Connectors C-51,C-52 malfunction

•  Position memory control module malfunction

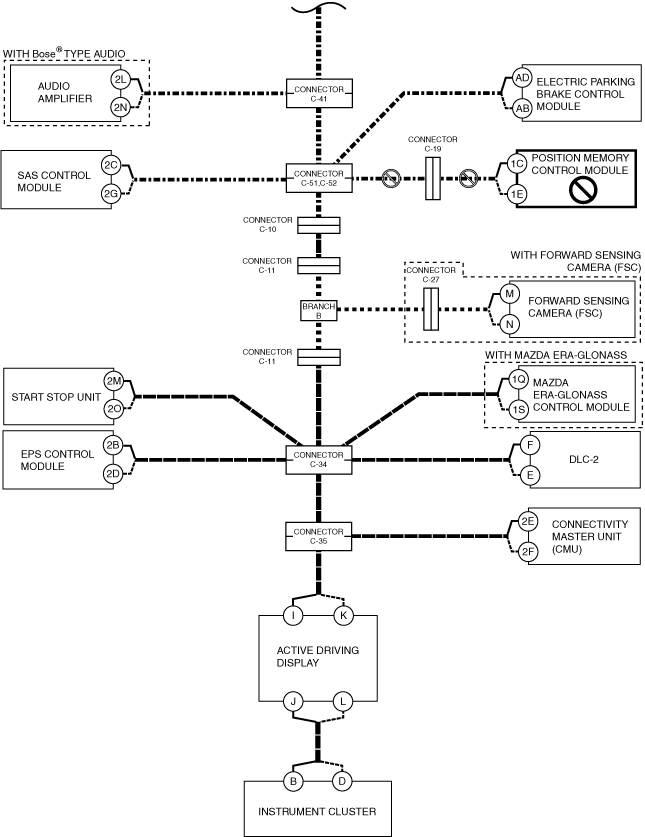

System wiring diagram

am6zzw00017290

am6zzw00017563

Inspection item

•  Position memory control module power supply voltage-related wiring harness and fuse

•  Position memory control module body ground related wiring harness

•  Position memory control module connector

•  Connector C-19

•  Connectors C-51,C-52

•  Wiring harness between position memory control module terminal 1C and connector C-19

•  Wiring harness between position memory control module terminal 1E and connector C-19

•  Wiring harness between connector C-19 and connectors C-51,C-52

•  Position memory control module

V

With forward sensing camera (FSC)

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between connectors C-51,C-52 and connector C-10

•  Open circuit in wiring harness between connector C-10 and connector C-11

•  Open circuit in wiring harness between connector C-11 and branch B

•  Connectors C-51,C-52 malfunction

•  Connector C-10 malfunction

•  Connector C-11 malfunction

System wiring diagram

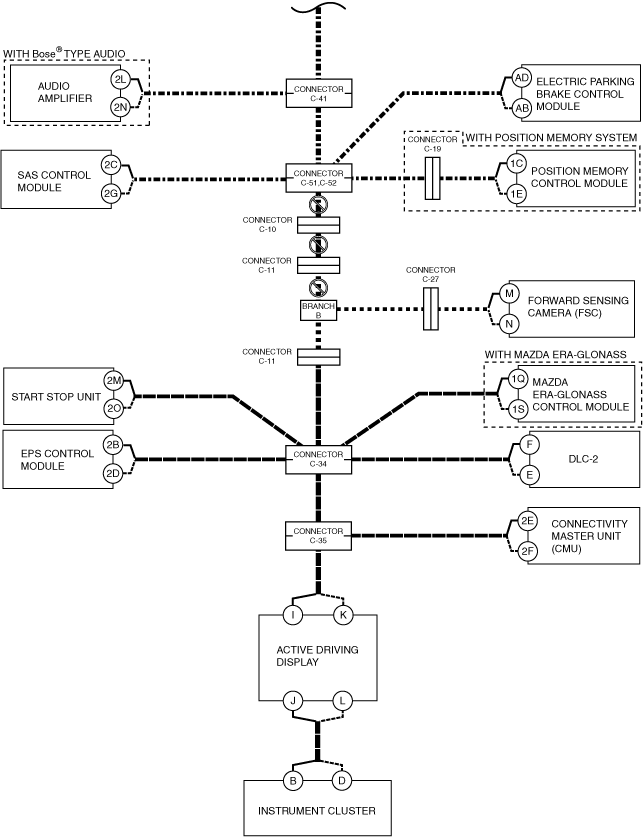

am6zzw00017290

am6zzw00017564

Inspection item

•  Connectors C-51,C-52

•  Connector C-10

•  Connector C-11

•  Wiring harness between connectors C-51,C-52 and connector C-10

•  Wiring harness between connector C-10 and connector C-11

•  Wiring harness between connector C-11 and branch B

Without forward sensing camera (FSC)

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between connectors C-51,C-52 and connector C-10

•  Open circuit in wiring harness between connector C-10 and connector C-11

•  Open circuit in wiring harness between connector C-11 and connector C-11

•  Open circuit in wiring harness between connector C-11 and connector C-34

•  Connectors C-51,C-52 malfunction

•  Connector C-10 malfunction

•  Connector C-11 malfunction

•  Connector C-34 malfunction

System wiring diagram

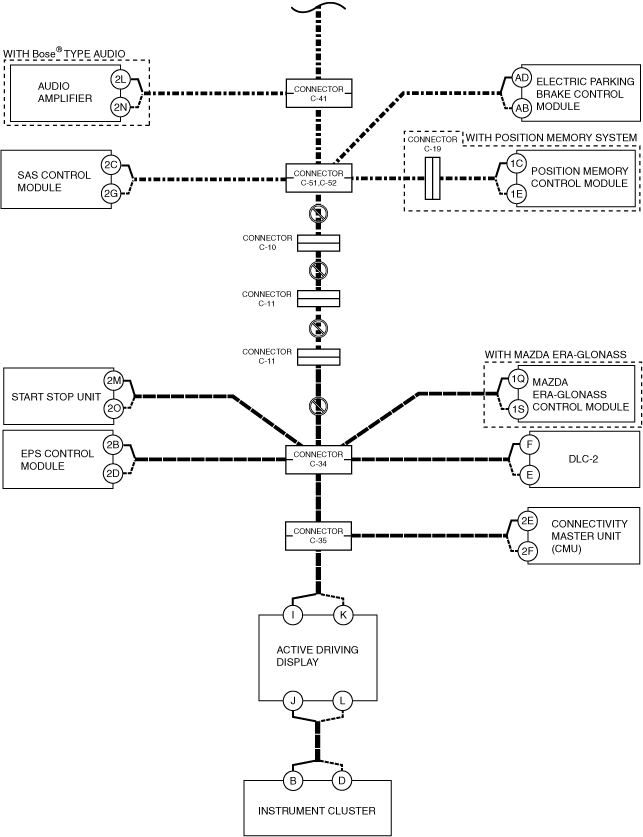

am6zzw00017290

am6zzw00017565

Inspection item

•  Connectors C-51,C-52

•  Connector C-10

•  Connector C-11

•  Connector C-34

•  Wiring harness between connectors C-51,C-52 and connector C-10

•  Wiring harness between connector C-10 and connector C-11

•  Wiring harness between connector C-11 and connector C-11

•  Wiring harness between connector C-11 and connector C-34

W

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Forward sensing camera (FSC) power supply voltage or body ground malfunction

•  Open circuit in wiring harness between forward sensing camera (FSC) and connector C-27

•  Open circuit in wiring harness between connector C-27 and branch B

•  Connector C-27 malfunction

•  Forward sensing camera (FSC) malfunction

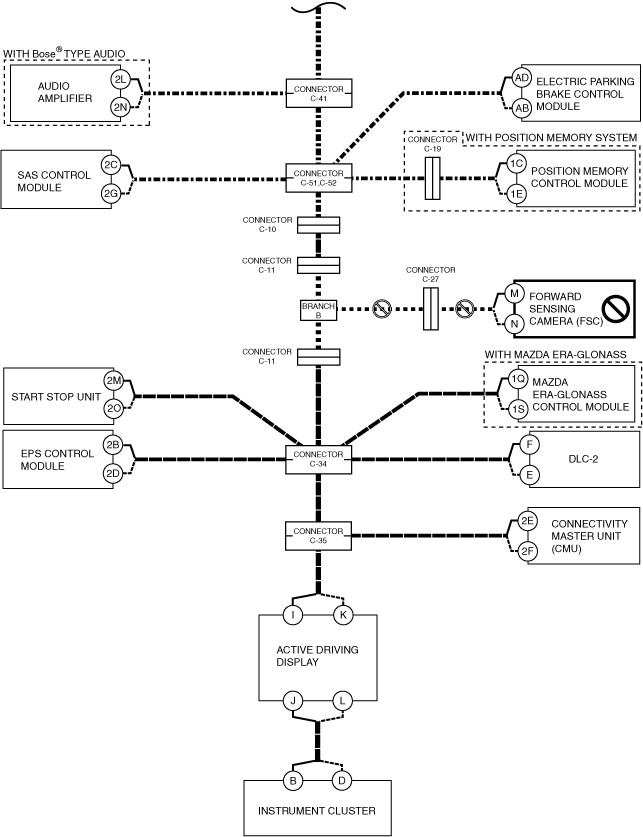

System wiring diagram

am6zzw00017290

am6zzw00017566

Inspection item

•  Forward sensing camera (FSC) power supply voltage-related wiring harness and fuse

•  Forward sensing camera (FSC) body ground related wiring harness

•  Forward sensing camera (FSC) connector

•  Connector C-27

•  Wiring harness between connector C-27 and branch B

•  Wiring harness between forward sensing camera (FSC) terminal M and connector C-27

•  Wiring harness between forward sensing camera (FSC) terminal N and connector C-27

•  Forward sensing camera (FSC)

X

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Open circuit in wiring harness between branch B and connector C-11

•  Open circuit in wiring harness between connector C-11 and connector C-34

•  Connector C-11 malfunction

•  Connector C-34 malfunction

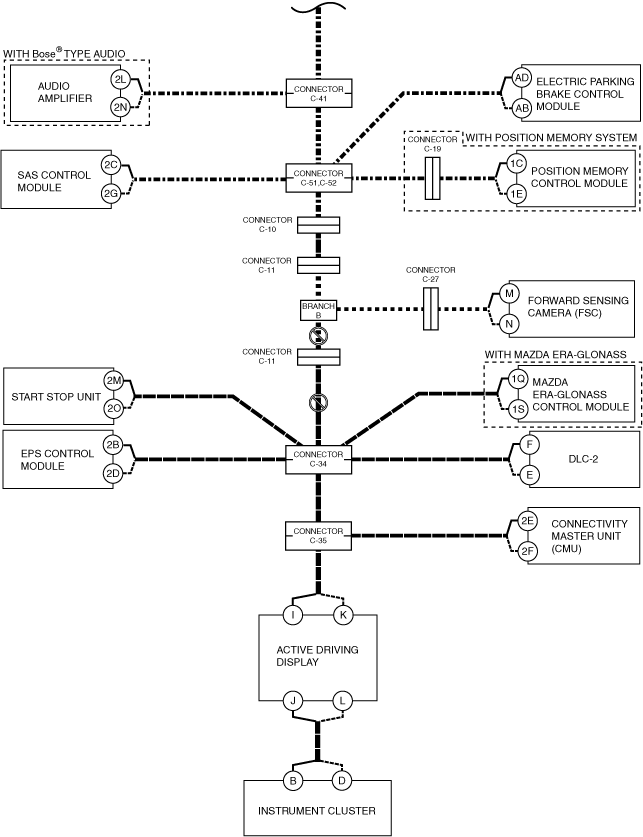

System wiring diagram

am6zzw00017290

am6zzw00017567

Inspection item

•  Connector C-11

•  Connector C-34

•  Wiring harness between branch B and connector C-11

•  Wiring harness between connector C-11 and connector C-34

Y

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  Start stop unit power supply voltage or body ground malfunction

•  Open circuit in wiring harness between start stop unit and connector C-34

•  Connector C-34 malfunction

•  Start stop unit malfunction

System wiring diagram

am6zzw00017290

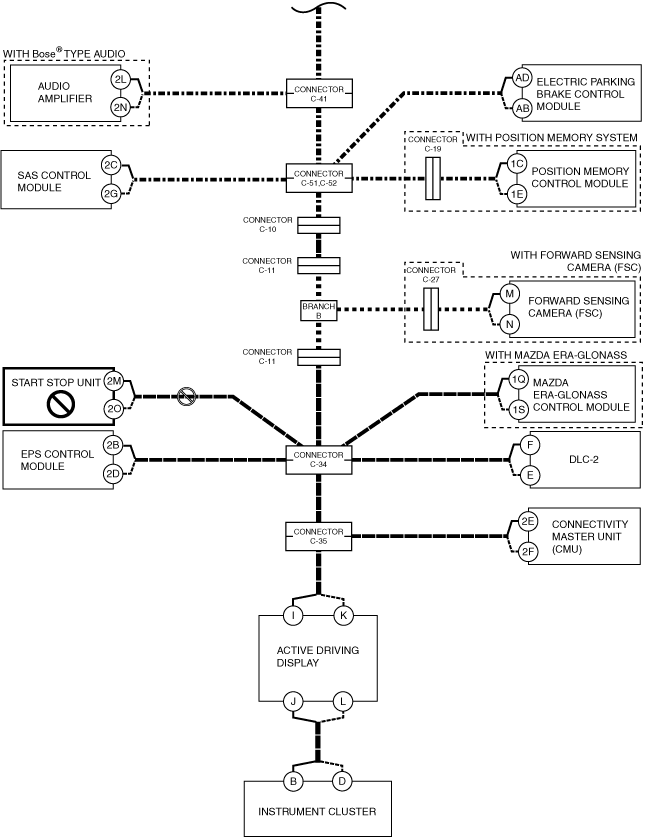

am6zzw00017568

Inspection item

•  Start stop unit power supply voltage-related wiring harness and fuse

•  Start stop unit body ground related wiring harness

•  Start stop unit connector

•  Connector C-34

•  Wiring harness between start stop unit terminal 2M and connector C-34

•  Wiring harness between start stop unit terminal 2O and connector C-34

•  Start stop unit

Z

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  EPS control module power supply voltage or body ground malfunction

•  Open circuit in wiring harness between EPS control module and connector C-34

•  Connector C-34 malfunction

•  EPS control module malfunction

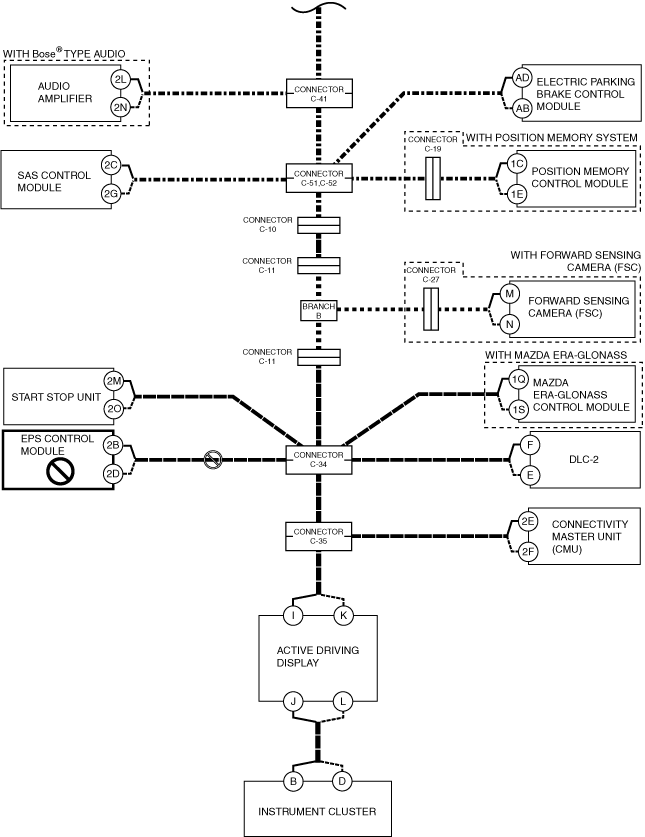

System wiring diagram

am6zzw00017290

am6zzw00017569

Inspection item

•  EPS control module power supply voltage-related wiring harness and fuse

•  EPS control module body ground related wiring harness

•  EPS control module connector

•  Connector C-34

•  Wiring harness between EPS control module terminal 2B and connector C-34

•  Wiring harness between EPS control module terminal 2D and connector C-34

•  EPS control module

AA

Possible cause

•  Connector terminal disconnection, poor contact, damage, deformation, corrosion

•  MAZDA ERA-GLONASS control module power supply voltage or body ground malfunction

•  Open circuit in wiring harness between MAZDA ERA-GLONASS control module and connector C-34

•  Connector C-34 malfunction

•  MAZDA ERA-GLONASS control module malfunction

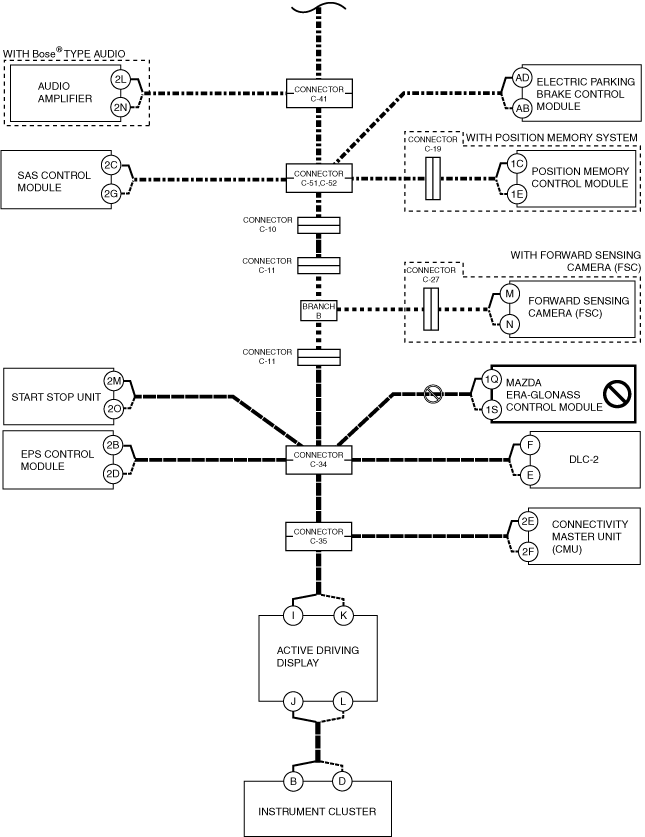

System wiring diagram

am6zzw00017290

am6zzw00017302

Inspection item

•  MAZDA ERA-GLONASS control module power supply voltage-related wiring harness and fuse

•  MAZDA ERA-GLONASS control module body ground related wiring harness

•  MAZDA ERA-GLONASS control module connector

•  Connector C-34

•  Wiring harness between MAZDA ERA-GLONASS control module terminal 1Q and connector C-34

•  Wiring harness between MAZDA ERA-GLONASS control module terminal 1S and connector C-34

•  MAZDA ERA-GLONASS control module

AB
