FOREWORD [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id1103b9000200

Caution
•  Vehicle specifications differ depending on the vehicle identification number (VIN).
Applied VIN type A:
―  VIN serial No. 700001 — (European (L.H.D. U.K.) specs.)
―  VIN serial No. 400001 — (Except European (L.H.D. U.K.) specs.)
Applied VIN type B:
―  VIN serial No. 600001 — 700000 (European (L.H.D. U.K.) specs.)
―  VIN serial No. 300001 — 400000 (Except European (L.H.D. U.K.) specs.)

Special Service Tool (SST)

49US 15 1A0

PROBE KIT

•  If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

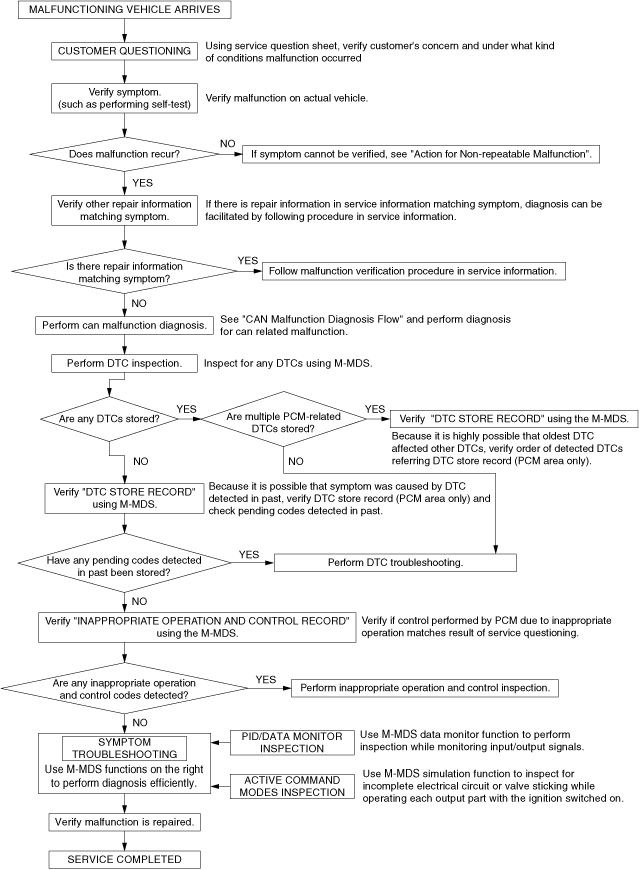

Troubleshooting Procedure

am6zzw00013411
*1  :(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (L.H.D.)].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.0/2.5, SKYACTIV-D 2.2 (MTX) (R.H.D.)].)

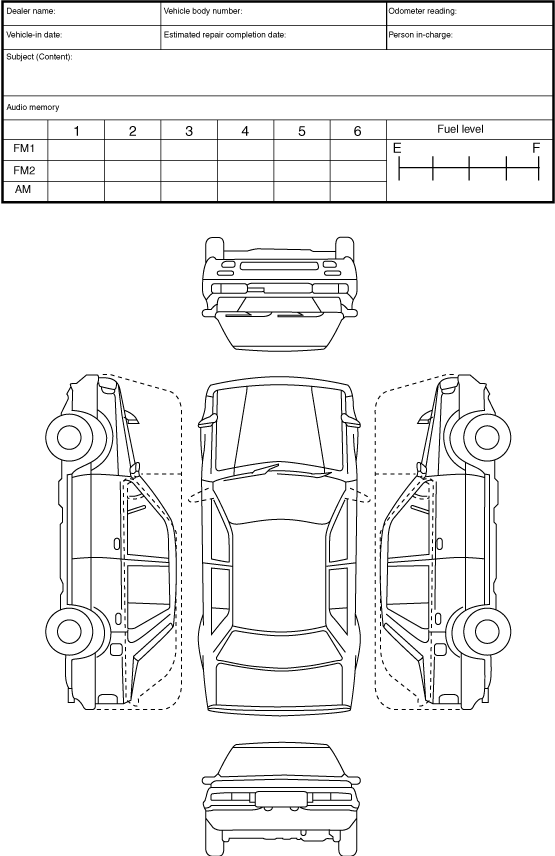

Repair order form

ac5uuw00004385
am6zzw00012143

Repair order form (i-stop)

am6zzw00012144

Action for Non-repeatable Malfunction

•  If the malfunction does not recur, verify the malfunction cause by performing the following actions:
―  Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
―  Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.
ac5uuw00007565
―  Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)
Note
•  SST (Reference): PROBE KIT (49US 15 1A0)
amxzzw00004455

i-stop Control

•  The i-stop control is designed to not function (idling stop or engine restart) while the bonnet is open, however, when performing servicing in the engine compartment while a malfunction symptom has being occurred, be careful not to get caught in a rotating part if the engine were too restart accidentally.
•  When performing troubleshooting indicated with an asterisked (*), shake the applicable part, wiring harness, and connector by hand to determine if the malfunction is temporal caused by poor contact. If there is a malfunction in the connectors or terminals, properly connect them and repair or replace if necessary. If there is a malfunction in the connectors or terminals, properly connect them and repair or replace if necessary.
•  Engine-stop permit conditions and engine restart conditions by i-stop control as follows:

i-stop (engine-stop control) permit condition

Determination module

Determination item

Determination condition

Applicable PID

ATX

MTX
PCM
Vehicle speed
0 km/h {0 mph}
3 km/h {2 mph} or less
WSPD_SEN_LF
WSPD_SEN_RF
WSPD_SEN_LR
WSPD_SEN_RR
Brake pedal
Brake pedal is depressed while in D or M position
Not applicable
TR
BPA
Brake fluid pressure
Brake fluid pressure is 1.35 MPa {13.8 kgf/cm2, 196 psi} or more while in D or M position (perform correction according to vehicle inclination angle)
Not applicable
TR
BRK_F_P_C
Accelerator pedal
Released
←
APP
Clutch pedal
Not applicable
Released
CPP
MTX gear position
Not applicable
Neutral
CPP/PNP
Vehicle conditions
Vehicle is stopped in D position*1
Not applicable
TR
Steering speed
15 deg/s or less
←
STR_ROT_SPD
Steering angle
Within 65° of center to left and right
(After EPS control module learns center value)
Not applicable
Not applicable
Steering torque
1.1 N·m {11 kgf·cm, 9.7 in·lbf} or less
←
STR_TRQ_S_M
i-stop OFF switch
OFF
←
I-Stop_OFF
Vehicle speed history
(After engine started and driven once)
3 km/h {2 mph} or more
4 km/h {2.5 mph} or more
I-Stop_VSP
Capacitor voltage
14 V or more
←
DCDC_IN_V
Battery charge condition
65.72 % or more
←
BATT_SOC
Battery fluid temperature
0—70 °C {32—158 °F}
←
BATT_TEMP
Battery voltage
11.2 V or more
←
BATT_V
Power brake unit vacuum
-45 kPa {-0.46 kgf/cm2, -6.5 psi} or less
(value calculated by subtracting BARO from BBP)
←
BBP
BARO
Door (driver's side)
Closed
←
DOOR_D
Hood
Closed *2
←
HOOD
Vehicle inclination angle
Within ±7° when level (LON_ACCL_C: within ±0.121 G)
Not applicable
LON_ACCL_C
Seat belt (driver's side)
Fastened*3
←
SEAT_B_D
Battery condition setting
Completed
←
Not applicable
Steering angle sensor initial setting
Completed
Not applicable
Not applicable
After refueling*4 (E85 or higher compatible vehicles)
•  All the following conditions are met:
―  Added fuel: 16 L {17 US qt, 14 lmp qt} or more
―  Vehicle is driven for approx. 10 km {6.2 mile} or more after refueling
←
Not applicable
Engine coolant temperature
55—110 °C {55—230 °F}
←
ECT
Intake air temperature
100 °C {212 °F} or less
←
IAT
PCM
Altitude
Type A VIN:
•  2,000 m or less (BARO: 79.0 kPa {0.806 kgf/cm2, 11.5 psi} or more)
Type B VIN:
•  1,800 m or less (BARO: 81.5 kPa {0.831 kgf/cm2, 11.8 psi} or more)
←
BARO
System condition
i-stop related part DTCs are not recorded
←
Not applicable
Start stop unit
+B (ROOM fuse) input
Yes
←
VPWR_B1
IG1 input
Yes
←
VPWR_IG1
ACC input
Yes
←
VPWR_ACC
IG1 output
Yes
←
RELAY_IG1
IG2 output
Yes
←
RELAY_IG2
ACC output
Yes
←
RELAY_ACC
Push button
Not pressed
←
SSB_1
SSB_2
Door (all)
Closed
←
DOOR_ALL
Liftgate
Closed
←
TRUNK
Seat belt (driver's side)
Fastened*3
←
SEAT_B_D
Engine start
Engine was started by operating push button with key inside cabin (engine started first time)
←
Not applicable
Engine rotation speed
300 rpm or more is maintained after engine started
←
Not applicable
System condition
i-stop related part DTCs are not recorded
←
Not applicable
TCM
TCM detection condition
All met (I-Stop_EST: On)
Not applicable
I-Stop_EST
Panic stop
Brake pedal was not depressed suddenly within 4 s
Not applicable
Not applicable
TFT
20―117 °C {68—242 °F}
Not applicable
TFT
Gear position
Not in 2nd gear fixed mode
Not applicable
Not applicable
System condition
i-stop related part DTCs are not recorded
Not applicable
Not applicable
Climate control unit
Climate control unit determination condition
All met
(STOP_ST: Available)
←
STOP_ST
Cabin temperature (with full-auto A/C)
Difference between target cabin temperature and actual cabin temperature is a certain value or less
(Cabin temperature control by A/C is normally performed)
←
Not applicable
A/C temperature (with full-auto A/C)
Setting other than MAX/MIN
←
Not applicable
Ambient temperature
-10―50 °C {14—122 °F}
←
Not applicable
Cold condition
Ambient temperature is 4 °C {39 °F} or more or evaporator temperature is 12 °C {54 °F} or less
←
Not applicable
Front defroster switch
OFF
←
Not applicable
System condition
i-stop related part DTCs are not recorded
←
Not applicable
DSC HU/CM
Operation request from PCM
Hill Launch Assist (HLA) control request signal from PCM is received
Not applicable
Not applicable
Vehicle inclination angle
Inclination is within ±6° with shift positioned in D/M/R or N/P (LON_ACCL_C: within ±0.104 G)
Not applicable
TR
LON_ACCL_C
Wheel speed (4 wheels)
0 km/h {0 mph}
Not applicable
WSPD_SEN_LF
WSPD_SEN_RF
WSPD_SEN_LR
WSPD_SEN_RR
Brake pedal
Brake pedal is depressed
Not applicable
BRAKE_SW
Brake fluid pressure
Approx. 0.45 MPa {4.6 kgf/cm2, 65 psi} or more
Not applicable
BRK_F_P_C
Accelerator pedal
Released
Not applicable
APP
System condition
i-stop related part DTCs are not recorded
Not applicable
Not applicable

*1  :After the vehicle is stopped, the engine stops if the gear is shifted to N position. In addition, if the gear is shifted to P position after the vehicle is stopped in D position, the engine stop condition by the i-stop control is maintained.
*2  :If the engine is started with the hood open, i-stop is inhibited until the engine is stopped.
*3  :If the seat belt is unfastened while the vehicle is stopped, i-stop is inhibited until a vehicle speed record is input once.
*4  :The i-stop operation is inhibited until the ethanol concentration learning for the fuel is completed after refueling.


i-stop (engine restart control) condition

Detection module

Detection item

Determination conditions

PID

ATX

MTX
PCM
Vehicle speed
1 km/h {0.6 mph} or more
4 km/h {2.5 mph} or more
WSPD_SEN_LF
WSPD_SEN_RF
WSPD_SEN_LR
WSPD_SEN_RR
Brake pedal
•  Brake pedal is released → depressed while in P or N position
•  Brake pedal is released while in D or M position and AUTOHOLD is not operating
Not applicable
TR
BPA
Brake fluid pressure
Brake fluid pressure is 0.35 MPa {3.6 kgf/cm2, 51 psi} or less while in D or M position and AUTOHOLD is not operating
Not applicable
TR
BRK_F_P_C
Accelerator pedal
Accelerator pedal is depressed while in D or M position
Not applicable
TR
APP
Clutch pedal
Not applicable
Depressed
CPP
Steering torque
2.8 N·m {29 kgf·cm, 25 in·lbf} or more while in D or M position
Not applicable
STR_TRQ_S_M
Steering angle
70° or more from center while in D or M position
(After EPS control module learns center value)
Not applicable
Not applicable
Shift operation
Operated from P or N position to D, M, or R position
Not applicable
TR
i-stop OFF switch
ON
←
I-Stop_OFF
Battery charge condition
65% or less
←
BATT_SOC
Power brake unit vacuum
-43 KPa {-0.44 kgf/cm2, -6.2 psi} or more
(value calculated by subtracting BARO from BBP)
←
BBP
BARO
Driver not seated
•  All the following conditions are met:
―  Seat belt (driver's side): Not fastened
―  Door (driver's side): Open
―  P or N position
•  All the following conditions are met:
―  Seat belt (driver's side): Not fastened
―  Door (driver's side): Open
―  Neutral
SEAT_B_D
DOOR_D
TR
CPP/PNP
Engine stop period by i-stop
120 s or more
←
Not applicable
Engine coolant temperature
53 °C {127 °F} or less
←
ECT
System condition
An i-stop related part DTC is recorded
←
Not applicable
Start stop unit
+B (ROOM fuse) input
No
←
VPWR_B1
Remote transmitter authorization
When engine restart by remote transmitter authorization is requested
•  Any door is open without remote transmitter left in vehicle
•  Remote transmitter is outside of vehicle after any door is opened
←
Not applicable
System condition
An i-stop related part DTC is recorded
←
Not applicable
TCM
Gear position
In 2nd gear fixed mode
Not applicable
Not applicable
TFT
20 °C {68 °F} or less, or 117°C {243 °F} or more
Not applicable
TFT
Vehicle speed
3 km/h {2 mph} or more
Not applicable
WSPD_SEN_LF
WSPD_SEN_RF
WSPD_SEN_LR
WSPD_SEN_RR
System condition
An i-stop related part DTC is recorded
←
Not applicable
Climate control unit
A/C request (with full-auto A/C)
Yes
←
STOP_ST
A/C set temperature (with full-auto A/C)
Set to MAX or MIN
←
Not applicable
Front defroster switch
ON
←
Not applicable
System condition
An i-stop related part DTC is recorded
←
Not applicable
DSC HU/CM
System condition
An i-stop related part DTC is recorded
Not applicable
Not applicable
