SYSTEM WIRING DIAGRAM [SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R)]

id1503b1003000

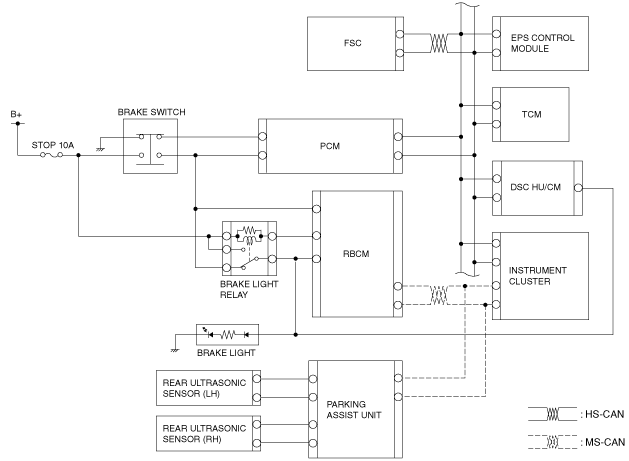

System wiring diagram (Without Smart Brake Support (SBS))

am6zzn00004829

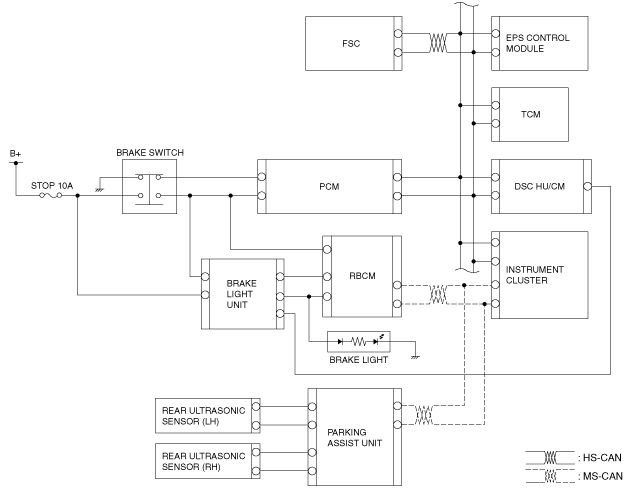

System wiring diagram (With Smart Brake Support (SBS))

am6zzn00004830
