ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE

id151100001200

Purpose

• The adaptive front lighting system (AFS) control module calculates the target optical axis and outputs the target optical axis signal to the headlight leveling actuator.

• The adaptive front lighting system (AFS) control module outputs the target headlight optical axis signal to the swivel actuator according to the steering wheel operation while the headlights are turned on.

Function

• The adaptive front lighting system (AFS) control module performs control of the adaptive front lighting system (AFS) and headlight auto leveling system.

• The adaptive front lighting system (AFS) control module records the vehicle attitude angle while it is unoccupied.

• The new adaptive front lighting system (AFS) control module does not record the vehicle attitude angle while it is unoccupied.

• The adaptive front lighting system (AFS) control module reads the vehicle attitude angle information and records the vehicle attitude angle while it is unoccupied when the headlight auto leveling system initial setting is performed after the adaptive front lighting system (AFS) control module is replaced.

• Even if the battery is disconnected, the unoccupied vehicle attitude angle recorded by the adaptive front lighting system (AFS) control module is not erased.

Automatic configuration function

• The adaptive front lighting system (AFS) control module prior to replacement stores the vehicle specification information.

• A new adaptive front lighting system (AFS) control module does not store any vehicle specification information.

• When the ignition is switched ON (engine off or on) after the adaptive front lighting system (AFS) control module is replaced, the adaptive front lighting system (AFS) control module reads the vehicle specification information sent via CAN transmission from the instrument cluster using the automatic configuration function, and stores it.

On-board diagnostic function

• The adaptive front lighting system (AFS) control module is equipped with an on-board diagnosis function which records DTCs in the event of a malfunction.

Malfunction detection function

• The adaptive front lighting system (AFS) control module detects a malfunction of the adaptive front lighting system (AFS) and headlight auto leveling system related parts.

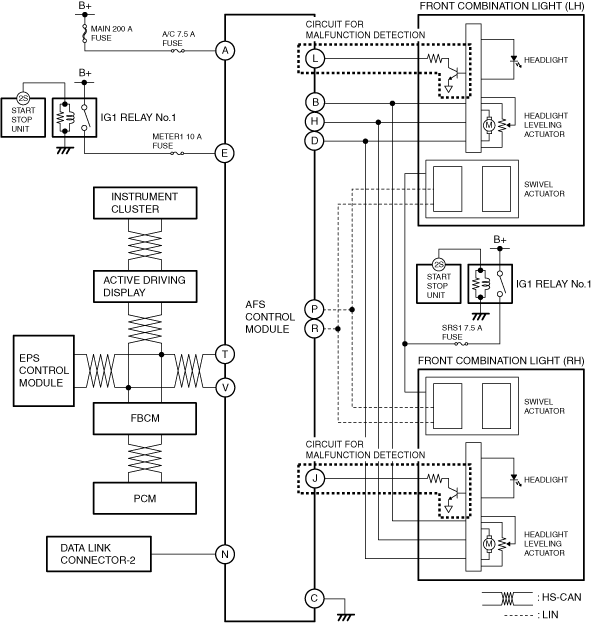

• The adaptive front lighting system (AFS) control module detects a malfunction in the headlight circuit based on the circuit for the malfunction detection equipped in the front combination light.

am6xun00003986

Display Function

• If any malfunction is detected, the LED headlight warning light in the instrument cluster turns on to notify the driver of a system malfunction.

Burnt out bulb check function

• When the ignition is switched ON (engine off or on), the adaptive front lighting system (AFS) control module turns the LED headlight warning light on for approx. 3 s and performs a burnt out bulb check.

Structure/Construction

• The adaptive front lighting system (AFS) control module is located inside the dashboard.

am6zzn00005521

Operation

• For the adaptive front lighting system (AFS) control module operation, refer to [LED HEADLIGHT WARNING LIGHT], [HEADLIGHT AUTO LEVELING SYSTEM], and [ADAPTIVE FRONT LIGHTING SYSTEM (AFS)]. (See LED HEADLIGHT WARNING LIGHT.) (See HEADLIGHT AUTO LEVELING SYSTEM.) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS).)

Fail-safe

DTC No.

Fail-safe

B10A3:86

•  The swivel actuator (LH) is stopped at the position when the malfunction is determined.

•  The swivel actuator (RH) is moved to the center.

•  Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned −0.6° from where the malfunction is determined.

B10A3:87

•  The swivel actuator (LH) is stopped at the position when the malfunction is determined.

•  The swivel actuator (RH) is moved to the center, or the swivel actuators (LH) and (RH) are moved to the center.

•  Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned −0.6° from where the malfunction is determined.

B10A4:86

•  The swivel actuator (RH) is stopped at the position when the malfunction is determined.

•  The swivel actuator (LH) is moved to the center.

•  Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned −0.6° from where the malfunction is determined.

B10A4:87

•  The swivel actuator (RH) is stopped at the position when the malfunction is determined.

•  The swivel actuator (LH) is moved to the center, or the swivel actuators (LH) and (RH) are moved to the center.

•  Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned −0.6° from where the malfunction is determined.

B1D00:13

•  Control of the AFS is continued.

•  Control of the headlight auto leveling system is continued.

B1D01:13

•  Control of the AFS is continued.

•  Control of the headlight auto leveling system is continued.

C0051:86

•  The swivel actuator is moved to the center.

•  Control of the headlight auto leveling system is continued.

C0061:54

•  The swivel actuator is moved to the center.

•  The headlight leveling actuator is stopped at the position when the malfunction is determined.

U0001:88

•  The swivel actuator is moved to the center.

•  The headlight leveling actuator is stopped at the position when the malfunction is determined.

U0100:00

•  The swivel actuator is moved to the center.

•  The headlight leveling actuator is stopped at the position when the malfunction is determined.

U0131:00

•  The swivel actuator is moved to the center.

•  Control of the headlight auto leveling system is continued.

U0140:00

•  The swivel actuator is moved to the center.

•  The headlight leveling actuator is stopped at the position when the malfunction is determined.

U0155:00

•  The swivel actuator is moved to the center.

•  Control of the headlight auto leveling system is continued.

U0320:09

•  The swivel actuator is moved to the center.

•  Control of the headlight auto leveling system is continued.

U0420:68

•  The swivel actuator is moved to the center.

•  Control of the headlight auto leveling system is continued.

U0423:68

•  Ignition switch error signal

―  Control of the AFS is continued with the ignition switched ON (engine on).

―  Control of the headlight auto leveling system is continued.

•  Selector lever position (R position) (ATX)/Reverse (MTX) signal error

―  The swivel actuator is moved to the center.

―  Control of the headlight auto leveling system is continued.

•  Selector lever position (R position) (ATX)/Reverse (MTX) signal not determined

―  Control of the swivel actuator is continued with the transaxle range sensor (ATX)/back-up light switch (MTX) fixed in the condition when the malfunction is determined.

―  Control of the headlight auto leveling system is continued.

U2005:86

•  The swivel actuator is moved to the center.

•  The headlight leveling actuator is stopped at the position when the malfunction is determined.

U2300:54

•  Control of the AFS is continued.

•  Control of the headlight auto leveling system is continued.

U2300:55

•  The swivel actuator is moved to the center.

•  The headlight leveling actuator is stopped at the position when the malfunction is determined.

U2300:56

•  Control of the AFS is continued.

•  Control of the headlight auto leveling system is continued.

U3000:42

•  The swivel actuator is moved to the center.

•  The headlight leveling actuator is stopped at the position when the malfunction is determined.

U3003:16

•  The swivel actuator is stopped at the position when the malfunction is determined.

•  The headlight leveling actuator is stopped at the position when the malfunction is determined.

U3003:17

•  The swivel actuator is stopped at the position when the malfunction is determined.

•  The headlight leveling actuator is stopped at the position when the malfunction is determined.

DTC No.	Fail-safe
B10A3:86	• The swivel actuator (LH) is stopped at the position when the malfunction is determined. • The swivel actuator (RH) is moved to the center. • Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned −0.6° from where the malfunction is determined.
B10A3:87	• The swivel actuator (LH) is stopped at the position when the malfunction is determined. • The swivel actuator (RH) is moved to the center, or the swivel actuators (LH) and (RH) are moved to the center. • Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned −0.6° from where the malfunction is determined.
B10A4:86	• The swivel actuator (RH) is stopped at the position when the malfunction is determined. • The swivel actuator (LH) is moved to the center. • Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned −0.6° from where the malfunction is determined.
B10A4:87	• The swivel actuator (RH) is stopped at the position when the malfunction is determined. • The swivel actuator (LH) is moved to the center, or the swivel actuators (LH) and (RH) are moved to the center. • Control of the headlight auto leveling system is continued with the headlight leveling actuator positioned −0.6° from where the malfunction is determined.
B1D00:13	• Control of the AFS is continued. • Control of the headlight auto leveling system is continued.
B1D01:13	• Control of the AFS is continued. • Control of the headlight auto leveling system is continued.
C0051:86	• The swivel actuator is moved to the center. • Control of the headlight auto leveling system is continued.
C0061:54	• The swivel actuator is moved to the center. • The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0001:88	• The swivel actuator is moved to the center. • The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0100:00	• The swivel actuator is moved to the center. • The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0131:00	• The swivel actuator is moved to the center. • Control of the headlight auto leveling system is continued.
U0140:00	• The swivel actuator is moved to the center. • The headlight leveling actuator is stopped at the position when the malfunction is determined.
U0155:00	• The swivel actuator is moved to the center. • Control of the headlight auto leveling system is continued.
U0320:09	• The swivel actuator is moved to the center. • Control of the headlight auto leveling system is continued.
U0420:68	• The swivel actuator is moved to the center. • Control of the headlight auto leveling system is continued.
U0423:68	• Ignition switch error signal ― Control of the AFS is continued with the ignition switched ON (engine on). ― Control of the headlight auto leveling system is continued. • Selector lever position (R position) (ATX)/Reverse (MTX) signal error ― The swivel actuator is moved to the center. ― Control of the headlight auto leveling system is continued. • Selector lever position (R position) (ATX)/Reverse (MTX) signal not determined ― Control of the swivel actuator is continued with the transaxle range sensor (ATX)/back-up light switch (MTX) fixed in the condition when the malfunction is determined. ― Control of the headlight auto leveling system is continued.
U2005:86	• The swivel actuator is moved to the center. • The headlight leveling actuator is stopped at the position when the malfunction is determined.
U2300:54	• Control of the AFS is continued. • Control of the headlight auto leveling system is continued.
U2300:55	• The swivel actuator is moved to the center. • The headlight leveling actuator is stopped at the position when the malfunction is determined.
U2300:56	• Control of the AFS is continued. • Control of the headlight auto leveling system is continued.
U3000:42	• The swivel actuator is moved to the center. • The headlight leveling actuator is stopped at the position when the malfunction is determined.
U3003:16	• The swivel actuator is stopped at the position when the malfunction is determined. • The headlight leveling actuator is stopped at the position when the malfunction is determined.
U3003:17	• The swivel actuator is stopped at the position when the malfunction is determined. • The headlight leveling actuator is stopped at the position when the malfunction is determined.
